China Manufacture High Speed H U I Beam Channel Drilling Machine Line with High Production Efficien

China Manufacture High Speed H U I Beam Channel Drilling Machine Line with High Production Efficien
China Manufacture High Speed H U I Beam Channel Drilling Machine Line with High Production Efficien China Manufacture High Speed H U I Beam Channel Drilling Machine Line with High Production Efficien China Manufacture High Speed H U I Beam Channel Drilling Machine Line with High Production Efficien China Manufacture High Speed H U I Beam Channel Drilling Machine Line with High Production Efficien

Large Image :  China Manufacture High Speed H U I Beam Channel Drilling Machine Line with High Production Efficien

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO
Model Number: BHD500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: container
Delivery Time: 80 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/year
Detailed Product Description
Max. Size Width X Height: 500×500mm Min. Size Width X Height: 100×100mm
Spindle Type: BT40 Spindle Speed: 100~3000 R/min
Hole Diameter: φ5~φ40 Mm Spindle Quantity: 3
High Light:

I Beam Channel Drilling Machine

,

3000r/min Channel Drilling Machine

China Manufacture High Speed H U I Beam Channel Drilling Machine Line with High Production Efficiency

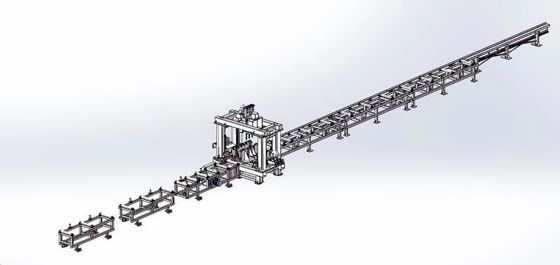

Components of CNC Drilling Machine Line:

The drilling machine is mainly composed of main machine body, cnc feeding system, out-feeding conveyor, cooling system, hydraulic system, pneumatic system, lubrication system, electrical system, and waste material car. The production line adopts a fixed bed structure and a movable workpiece structure. The three-dimensional drill of this structure is convenient for automated production.



China Manufacture High Speed H U I Beam Channel Drilling Machine Line with High Production Efficien 0

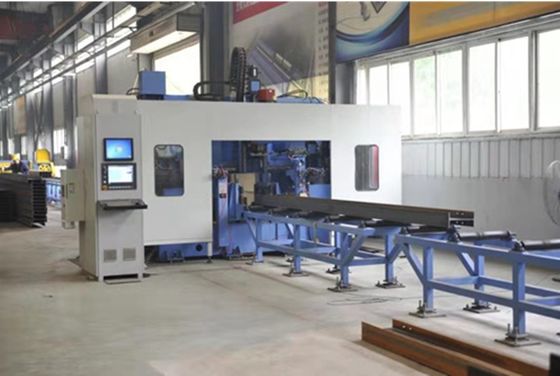

Main machine body:

It mainly consists of a base, a bed, a movable sliding table, a headstock, an upper pressing device, a side pressing device and a row-type tool magazine.

The bed has good rigidity and stability, can withstand the load and vibration generated by high-speed machining, and ensure the accuracy of the machine tool.

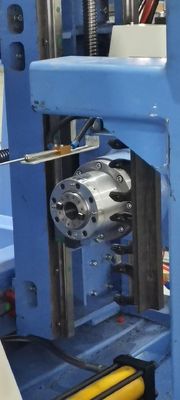

There are a total of 3 headstocks installed on the main machine, namely the fixed side, the mobile side and the upper unit headstock, for drilling in the horizontal and vertical directions respectively. Each headstock can be operated independently, and can also complete drilling operations at the same time, which greatly improves production efficiency. Each headstock has a set of BT40 high-speed mechanical spindles, and the corresponding row-type tool magazine can install up to 4 diameters of drills (when there is no tool on the spindle), and 4 different apertures can be automatically processed when the workpiece is clamped once. . The spindle feed is driven by a servo motor, which can realize fast forward, work forward, and fast rewind through program control; the spindle motor is driven by a spindle servo motor, the speed is steplessly adjusted, and the speed range is wide.

Three headstock units are hung on the bed, and each headstock unit is driven by two sets of servo motors to realize the horizontal and vertical movement of the headstock, which is driven by ball screws and guided by precision linear rolling guides. This equipment compresses the workpiece in two directions during the drilling process. Above the workpiece, there is an oil cylinder driving a pressing mechanism to press the workpiece on the horizontal support roller, and an oil cylinder driving a pressing mechanism to press the workpiece from the side.

Specifications:

H beam parameter Max. Size Width x Height 500×500mm
Min. Size Width x Height 100×100mm
Beam Length 2000~12200mm
Main spindle Qty. 3
Model BT40
Motor power 11 kW
Spindle speed 100~3000 r/min
Hole diameter φ5~φ40 mm
CNC axis Servo motor power of X axis About 4.5 kW
Servo motor power of horizontal drilling positioning axis About 1.5 kW
Servo motor power of vertical drilling positioning axis About 3 kW
Servo motor of drilling infeeding About 2 kW
Tool magazine Qty. 3
Type Row style
Tool magazine capacity 4 x 3
Processing Accuracy Hole distance deviation Two holes within 1 meter ±0.5
The allowable deviation value increases by ±0.2mm for every additional 1 meter of the hole distance, and the maximum does not exceed ±2mm
End margin deviation ±1.0 mm



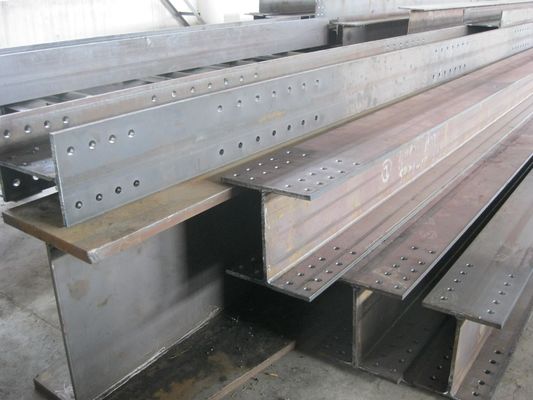

China Manufacture High Speed H U I Beam Channel Drilling Machine Line with High Production Efficien 1China Manufacture High Speed H U I Beam Channel Drilling Machine Line with High Production Efficien 2China Manufacture High Speed H U I Beam Channel Drilling Machine Line with High Production Efficien 3
