Internal Grinding CNC Plate Processing Machine Aerospace Auto Industry

Name: Internal Grinding CNC Plate Processing Machine Aerospace Auto Industry
Brand: Auten
SKU: AT-A120
Price: 1 USD
Availability: InStock
Rating: 4.5 (189 reviews)

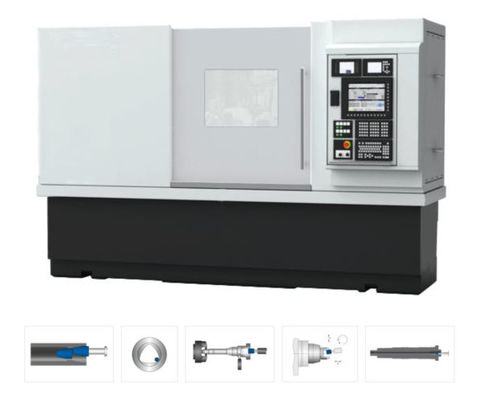

Large Image : Internal Grinding CNC Plate Processing Machine Aerospace Auto Industry

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	CQC
Model Number:	AT-A120

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	60 days
Payment Terms:	L/C, T/T
Supply Ability:	200 sets/year

Contact Now

Detailed Product Description

Function:	Internal Grinding	Scope of grinding:	φ5-φ120mm
Max. grinding depth:	360mm	Chuck type:	6-8 Hydraulic Chuck (Match Special Tool ）
Max. load:	80kg	Rotate speed:	0-1200rpm
Min. feed:	0.001（0.0001)mm
High Light:	cnc internal grinding machine , cnc profile grinding machine

High Efficiency and Low cost CNC Internal Grinding Machine Aerospace Auto Industry

■The internal cylindrical grinding machines are suitable for high-precision grinding of the internal cylinders with small-medium sized workpieces with a maximum length of 500mm.

■ The machine tools can be combined with various types of automatic loading and unloading systems or other customized processing systems.

Technical Parameter:

Name		AT-N60	AT-N120
Working ability	Scope of grinding	φ2-φ60mm	φ5-φ120mm
	Max. grinding depth	200mm	360mm (to lengthen)
	Chuck type	6-8 hydraulic chuck (Match special tool )
	Max. load	25kg	80kg
Working spindle table	Rotate speed	0-1200rpm
	Rotate angle	12°
	Spindle motor	3.5 kw
X-axis	Feedback system	Closed-loop system
	Strokemm	300mm	300mm/500mm
	Max. moving speed	100 m/min
	Min. feed	0.001 (0.0001)
	Servo motor of X-axis	3.5kw
Z-axis	Spindle motor	15kw
	Rotate speed	20000rpm/ 36000rpm/ 42000 rpm
	Strokemm	100mm	130mm
	Z-axis drive	Servo motor 3.5kw
	Min. feed	0.001(0.0001)
Cooling system	Equipment filter system	Magnetic separator + Paper filter machine
	Tank volume	100 L
	Motor	0.2 KW
Lubricating system	Tank volume	2 L
	Motor	45 W
Hydraulic system	Tank volume	60L
	Motor	2.2KW
Size／Weight	Equipment protection type	Total seal protection
	Weight	6000Kg	6500Kg
	Packing (L ×W ×H)	2300×2000×2100(mm)	3600 x 2300 x 2100 (mm)
