Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine

Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine
Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine

Large Image :  Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: JBC1010
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Detailed Product Description
Angle Size (mm): 40х40х3~100х100х10 Flat Steel Size (mm): 40x3~140x10
Channel Steel (mm): 80x5~140x8 Max. Hole Diameter (mm): Φ22х50 (slotted Hole), Φ26 (round Hole)
High Light:

cnc angle drilling machine

,

angle bar cutting machine

CNC Punching, Marking and Cutting Line for Angle Steel, Flat Steel and Channel Steel

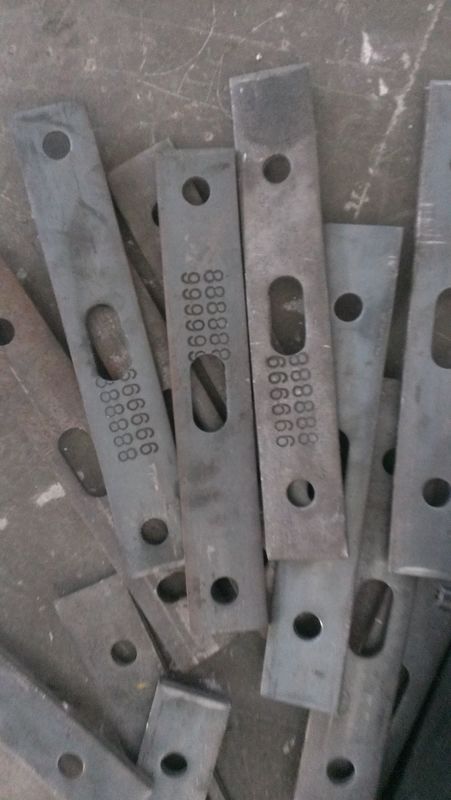

Applicable Industry:It is used for punching, marking and shearing on angle steel, flat steel and channel steel. It is mainly used for processing cross-arms, hoops, five-hole connecting plates, flat pads, and benches in electric power tower iron accessories. The machine can be used for punching, shearing and typing in one step without separate processing. High processing precision, high production efficiency, and can be processed by one person, simple and easy to learn.

Product Feature:

  • This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.
  • Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts are all world famous brand.
  • All main cable, such as rotary encoder cable, PLC communication cable is shielding twisted-pair cable imported. Thus, it avoids accuracy error caused by signal interference.
  • Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece. Easy programming and can directly use the program data made by lofting software. Only need to input size of workpiece, diameter of holes, back mark and quantity of workpiece when edit program.
  • The angle line installs supporting & pressing device to meet the requirements of processing angles with bigger bending.
  • The front and rear loading unit has been completely improved, and the new structure combining the guide rail and the spring is adopted. The structure is more reasonable and practical, avoid the defects that the spring of the material can not afford
  • With function of self-diagnosis for failures.
  • Single blade shearing ensures smooth shearing section and save raw material.

Specifications:

Model JBC1010
Functions Punching, marking, shearing
Angle size (mm)

40х40х3~100х100х8 (slotted hole) 40х40х3~100х100х10 (round hole)

Flat steel size (mm) 40x3~140x10
Channel steel (mm) 80x5~140x8
Max. hole diameter (mm) Φ22х50 (slotted hole), Φ26 (round hole)
Punching force (kN) 800
Marking force (kN) 630
Cutting force (kN) 1250
Max. length of blank (m) 9
Max. length of finished (m) 9
Punches per side 3
Group of Marking letters 4
Dimension of letter (mm) 14×10×19
CNC axes 3
Cutting mode Single blade cutting
Feeding speed of angle (m/min) 80
Processing precision Accordance with GB2694
Program function Real time fault display
Programming mode

Input by keyboard, RS232 interface,

floppy disk and USB interface

Gross Weight (kg) 12500


Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine 0Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine 1Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine 2Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine 3Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine 4Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine 5Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine 6Model JBC1010 Flate Steel Punching Machine , Channel Steel Punching Machine 7
