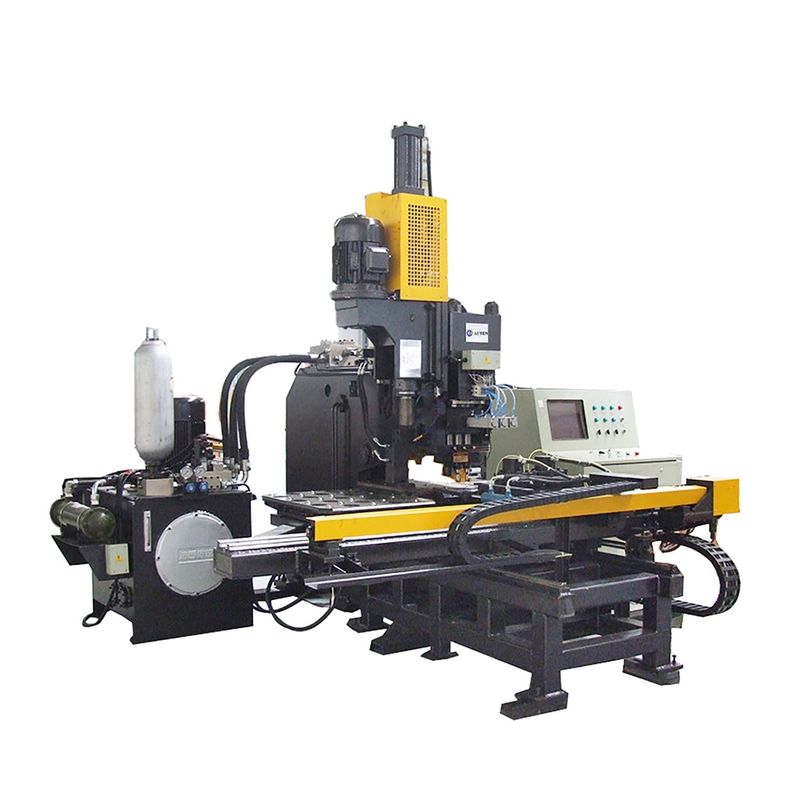

Multifunction High Speed CNC Plate Punching Marking and Drilling Machine Model BNC100

Multifunction High Speed CNC Plate Punching Marking and Drilling Machine Model BNC100
Multifunction High Speed CNC Plate Punching Marking and Drilling Machine Model BNC100

Large Image :  Multifunction High Speed CNC Plate Punching Marking and Drilling Machine Model BNC100

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: BNCZ100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 300 sets/year
Detailed Product Description
Plate Size: 1500x800mm Plate Thickness: 5~25mm
Punching Force: 1000kN Hole Diameter: 26mm
CNC Or Not: CNC Die-stations: 3
High Light:

cnc plate drilling machine

,

plate marking machine



Multifunction High Speed CNC Plate Punching Marking and Drilling Machine Model BNC100



Applicable industry:
Used for punch, drill and mark of joint plate in the field of iron tower. It is also used to punch, drill and mark of metal plate of other trade.

Product feature:

1. The machine-frame is made by C-type plate welding, with good rigidity and big handling space. The machine sets three die-stations (among them, one is the marking die-station), automatic switching die-stations. Clamping system can adapt to different workpiece, with zero baffle as datum mark, and workpiece supported by rolling-ball working table. Axis X & Y action should be controlled by servo motor and ball-screw driving, and double-axis CNC system controls the position of punching, so as to make the whole machining process automatically; operator may input the sizes of workpiece to computer for repeated calling program in the future.

2. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision.

3. Important functional components adopt modular assembly, easy to repair it.

4. Carry out punching, marking and drilling on the one plate.

5. Drilling unit has the functions including rapid falling, slow work-feeding and quick feeding back to improve working efficiency.

6. Easy programming, may input the diameter and position of holes to computer, and also may use the program generated by lofting software, or adopt direct conversion CAD.

7. The hydraulic station adopts double pump, single motor, water cooling system, sleeve type coupling for all pipelines. The glue of hose and coupling are exported.

8. The X & Y axis are driven by servo motor, ball screw and linear guide, which ensure the high precision.

9. With self-diagnosis failures function.

10. Lighten the working strength of workers.

Multifunction High Speed CNC Plate Punching Marking and Drilling Machine Model BNC100 0



Product Basic Parameter:

Model BNCZ100
Max size of work piece L×W(mm) 1500×800
Max. diameter of punching (mm) Φ26
Plate thickness of punching (mm) 5~25 (Q235)
Max. diameter of drilling (mm) Φ50
Plate thickness of drilling (mm) 40
Punching force (kN) 1000
Marking force (kN) 800
Min. distance between hole and plate edge (mm) Punching 25
Drilling Depends on hole diameter
Dimensions of characters (mm) 14×10×19
Quantity of characters 12
Die-stations 4
Feeding speed of drilling(mm/min) 25~280
Stroke of drilling spindle(mm) 180
Rotation speed of drilling spindle(r/min) 120~560
Precision Accordance with GB2694
Programming mode Input by keyboard, RS232 interface, and USB interface
Overall dimensions L×W×H (mm) 3200×3000×2600
Weight of machine (kg) Approx. 5800

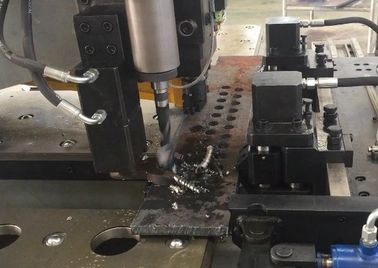

Machine details:
