Low Noise CNC Plate Punching Machine High Speed CNC Hydraulic Marking Machine

Certification
China Jinan Auten Machinery Co., Ltd. certification
China Jinan Auten Machinery Co., Ltd. certification
The cooperation is very enjoyable. Jinan Auten has an excellent professional team, the equipment works well and stable, the timely and enthusiastic after-sales service has impressed us. We hope that we can have more in-depth cooperation in the future!

—— PT. Bukaka

The CNC processing machine is easy for maintenance, high performance, moreover, the price is affordable.

—— Bob

Nice cooperation, we appreciate their patience, and hard working.

—— Mary

I'm Online Chat Now

Low Noise CNC Plate Punching Machine High Speed CNC Hydraulic Marking Machine

Low Noise CNC Plate Punching Machine High Speed CNC Hydraulic Marking Machine
Low Noise CNC Plate Punching Machine High Speed CNC Hydraulic Marking Machine

Large Image :  Low Noise CNC Plate Punching Machine High Speed CNC Hydraulic Marking Machine

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: BNC100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 300 sets/year
Detailed Product Description
Plate Size: 1500x800mm Plate Thickness: 5~25mm
Punching Force: 1000kN Hole Diameter: 26mm
CNC Or Not: CNC Die-stations: 3
High Light:

cnc plate drilling machine

,

steel plate punching machine

High Speed CNC Plate Punching and Marking Machine Model BNC100





Applicable industry:
Used for punch and mark of joint plate in the field of iron tower. It is also used to punch and mark metal plate of other trade.

Product feature:
1. The machine-frame is made by C-type plate welding, with good rigidity and big handling space. The machine sets three die-stations (among them, one is the marking die-station), automatic switching die-stations. Clamping system can adapt to different work piece, with zero baffles as datum mark, and work piece supported by rolling-ball working table. Axis X & Y action should be controlled by servo motor and ball-screw driving, and double-axis CNC system controls the position of punching, so as to make the whole machining process automatically; operator may input the sizes of work piece to computer for repeated calling program in the future.
2. Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.
3. Important functional components adopt modular assembly, easy to repair it.
4. Carry out punching, marking and drilling on the one plate.
5. Drilling unit has the functions including rapid falling, slow work-feeding and quick feeding back to improve working efficiency.
6. Easy programming, may input the diameter of holes, position and the quantity of work piece to computer, and also may use the program generated by lofting software, or adopt direct conversion CAD/CAM.
7. With function of self-diagnosis for failures.
8. Lighten the working strength of workers.



Product Basic Parameter

Model BNC100
Max size of work piece L×W(mm) 1500×800
Max. diameter of punching (mm) Φ26
Plate thickness of punching (mm) 5~25 (Q 235)
Punching force (KN) 1000
Marking force (KN) 800
Min. distance between hole and plate edge (mm) 25
Dimensions of characters (mm) 14×10×19 By customers’ request
Quantity of character 12
Die-stations 3
Precision Accordance with GB2694
Programming mode Input by keyboard, RS232 interface and USB interface
Overall dimensions L×W×H (mm) 3200×3000×1900



Main Components of BNC100:



No. Name Brand
1 PLC Japan Mitsubishi
2 Servo Motor Japan YASKAWA
3 Servo Driver Japan YASKAWA
4 Business Computer China Lenovo
5 Contactor France Schneider
6 Buttons France Schneider
7 Air switch France Schneider
8 Reversing valve Italy ATOS
9 Cylinder Japan SMC


Machine details:

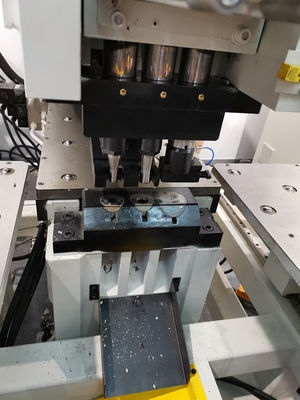

Low Noise CNC Plate Punching Machine High Speed CNC Hydraulic Marking Machine 0

Low Noise CNC Plate Punching Machine High Speed CNC Hydraulic Marking Machine 1



Low Noise CNC Plate Punching Machine High Speed CNC Hydraulic Marking Machine 2

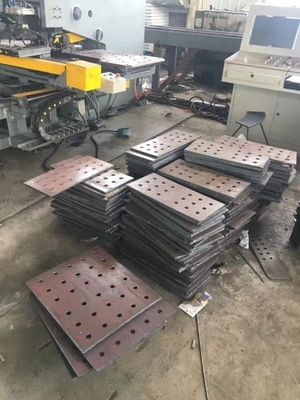

                                                                                 Workpieces
