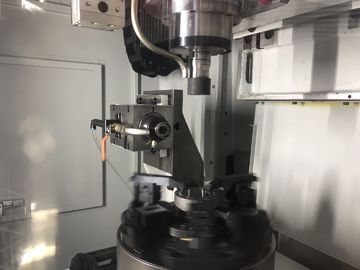

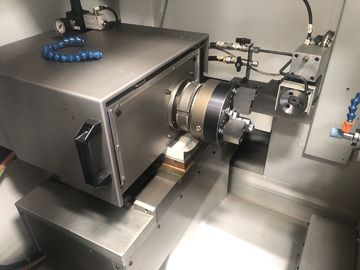

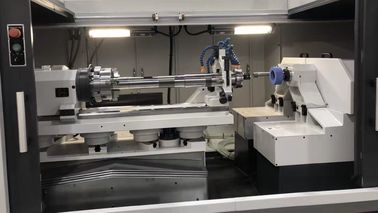

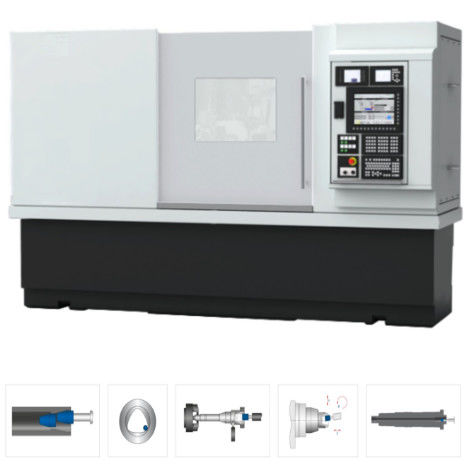

Long Life Low Noise CNC Internal Grinding Machine For High Precision Gear

Long Life Low Noise CNC Internal Grinding Machine For High Precision Gear
Long Life Low Noise CNC Internal Grinding Machine For High Precision Gear Long Life Low Noise CNC Internal Grinding Machine For High Precision Gear Long Life Low Noise CNC Internal Grinding Machine For High Precision Gear Long Life Low Noise CNC Internal Grinding Machine For High Precision Gear

Large Image :  Long Life Low Noise CNC Internal Grinding Machine For High Precision Gear

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: AT-A120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Detailed Product Description
Function: Internal Grinding Scope of grinding: φ5-φ120mm
Max. grinding depth: 360mm Chuck type: 6-8 Hydraulic Chuck (Match Special Tool )
Max. load: 80kg Rotate speed: 0-1200rpm
Min. feed: 0.001(0.0001)mm
High Light:

cnc tool grinding machine

,

cnc internal grinding machine



High Efficiency and Low cost CNC Internal Grinding Machine Aerospace Auto Industry

Application:

The internal cylindrical grinding machines are suitable for high-precision grinding of the internal cylinders with small-medium sized workpieces with a maximum length of 500mm.

Features:

■The internal cylindrical grinding machines are suitable for high-precision grinding of the internal cylinders with small-medium sized workpieces with a maximum length of 500mm.

■ The machine tools can be combined with various types of automatic loading and unloading systems or other customized processing systems.



Technical Parameter:

Name AT-N60 AT-N120
Working ability Scope of grinding φ2-φ60mm φ5-φ120mm
Max. grinding depth 200mm 360mm (to lengthen)
Chuck type 6-8 hydraulic chuck (Match special tool )
Max. load 25kg 80kg
Working spindle table Rotate speed 0-1200rpm
Rotate angle 12°
Spindle motor 3.5 kw
X-axis Feedback system Closed-loop system
Strokemm 300mm 300mm/500mm
Max. moving speed 100 m/min
Min. feed 0.001 (0.0001)
Servo motor of X-axis 3.5kw
Z-axis Spindle motor 15kw
Rotate speed 20000rpm/ 36000rpm/ 42000 rpm
Strokemm 100mm 130mm
Z-axis drive Servo motor 3.5kw
Min. feed 0.001(0.0001)
Cooling system Equipment filter system Magnetic separator + Paper filter machine
Tank volume 100 L
Motor 0.2 KW
Lubricating system Tank volume 2 L
Motor 45 W
Hydraulic system Tank volume 60L
Motor 2.2KW
Size/Weight Equipment protection type Total seal protection
Weight 6000Kg 6500Kg
Packing (L ×W ×H) 2300×2000×2100(mm) 3600 x 2300 x 2100 (mm)



Long Life Low Noise CNC Internal Grinding Machine For High Precision Gear 0

Long Life Low Noise CNC Internal Grinding Machine For High Precision Gear 1

Marble bed




■The bed of whole series of products are all made of marble.

■There are the advantages such as good vibration absorption performance , intensive to cold and heat, strong integration performance , with stability, environmental protection and energy saving, and so on.

Test


▪High-precision on-line detector system is adopted

▪ The outer and inner diameter can be measured online simultaneously

▪ The workpiece that can be calibrated and measured

▪ Zero and reference points can be set for subsequent machining

▪ Reduce non-machining time during grinding

▪ Improve the accuracy of parts

System




▪ The most powerful CNC control unit

▪ The whole series of products adopt SIEMENS operating system

▪ SINUMERIK Brand-new SINUMERIK user operating interface

▪ Predetermine movement control to shorten processing time and improve the quality and accuracy of the workpiece surface

▪ It not only reduces the setup time and operation complexity of machine tools, but also makes it easy for operators to view and edit by equipping with a variety of grinding form procedure

▪ Ethernet, USB and flash card storage.

▪ The simplest interactive design, easy to learn, and large storage.

▪ Remote diagnosis and help, background editing function, setting a security password.

Spindle


spindle-1.jpg spindle-2.jpg



▪ This spindle is a high-precision grinding spindle made in Switzerland, it is the best choice for the best process design, with the following best quality characteristics:

a. Short preheating time. Easy to operate, convenient maintenance and a wide range of applications

b. Good mechanical properties with durabilities

Grinding wheel repair system

grinding wheel repair system.jpg

High-precision motorized spindle-powered roller-type structural grinding wheel-repairing method, the best choice for high-precision and high-efficiency forming and dressing grinding, is mainly used for dressing internal and external cylindrical CBN grinding wheels, with characteristics of high dressing precision, high efficiency, good straightness, etc. The single point diamond pen dressing method can be chosen.
