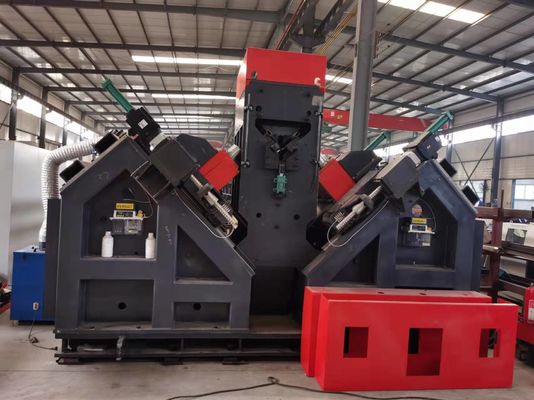

High Speed CNC Angle Drilling and Marking Line Model AMD2532 with 6 Drilling Heads

High Speed CNC Angle Drilling and Marking Line Model AMD2532 with 6 Drilling Heads
High Speed CNC Angle Drilling and Marking Line Model AMD2532 with 6 Drilling Heads High Speed CNC Angle Drilling and Marking Line Model AMD2532 with 6 Drilling Heads High Speed CNC Angle Drilling and Marking Line Model AMD2532 with 6 Drilling Heads

Large Image :  High Speed CNC Angle Drilling and Marking Line Model AMD2532 with 6 Drilling Heads

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: AMD2532
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 1 million per day
Detailed Product Description
Angle Size(mm): 125×125×10~250×250×35 Max. Length Of Raw Material (m): 14
Marking Force(kN): 1200 No. Of Character: 18
Max. Drilling Diameter (mm): 40 Taper Of Drilling Spindle: BT40
High Light:

3 ply medical surgical mask

,

Corona Virus Medical Surgical Mask

High Speed CNC Angle Drilling and Marking Line Model AMD2532 with 6 Drilling Heads



High Speed CNC Angle Drilling and Marking Line Model AMD2532 with 6 Drilling Heads 0



Applicable industry:

The machine is the automatic special equipment used for angle steel drilling mainly in the field of angle steel tower industry.

Product Composition:

The production line is composed of infeed transfer table unit, rotating loading unit, feeding conveyor unit, marking unit, two drilling units, outfeed conveyor unit, hydraulic system and electrical control system etc.

Product feature:

  • Adopt CNC technology, servo motor infeeding, with high efficiency, stable working precision.
  • Key hydraulic, pneumatic and electric elements are all domestic and international brand.
  • Easy programming and can directly use the program data made by lofting software.
  • Software with Chinese, English interface, easy operation, and can display the drawing of workpiece.
  • Loading, marking, drilling and unloading are all performed automatically.
  • Just need to input size of work piece, diameter of holes, stadia and quantity of workpiece when edit program, or use CAD/CAM lofting software direct conversion.
  • The machining line is installed with supporting and straight pressing device.
  • With avoided shearing functions, so as to process fixed length angles.
  • With self-diagnosis failures function.
  • Shearing unit is optional, using double blades cutting.

Specifications:

Model AMD2532
Angle size(mm) 125×125×10~250×250×35
Max. length of raw material (m) 14
Max. length of finished angle (m) 14
Marking force(kN) 1200
Marking unit type Close type
No. of character group 1
No. of character 18
Character size (mm) 14×10×19 or 20×12×19
Range of stadia (back mark)(mm) 50~220 stepless
No. of drill on each side 3
Max. drilling diameter (mm) 40
Taper of drilling spindle BT40
Stroke of Spindle(mm) 140
Max. Spindle rotation speed(r/min) 6000
Max. feeding speed of drilling head(m/min) 14
Programming mode Input by keyboard, RS232 interface, floppy disk and USB interface
No. of CNC axes 9
Overall dimensions(m) 34.5×7.5×2.5
Machine weight (kg) ≈30000

AMD2532

High Speed CNC Angle Drilling and Marking Line Model AMD2532 with 6 Drilling Heads 1High Speed CNC Angle Drilling and Marking Line Model AMD2532 with 6 Drilling Heads 2
