High Speed CNC Plate Punching Machine Metal Thickness 50mm Model PP103

High Speed CNC Plate Punching Machine Metal Thickness 50mm Model PP103
High Speed CNC Plate Punching Machine Metal Thickness 50mm Model PP103

Large Image :  High Speed CNC Plate Punching Machine Metal Thickness 50mm Model PP103

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: PP103
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 300 sets/year
Detailed Product Description
Workpiece Size: 1500x800mm Workpiece Thickness: 25mm
Punching Force: 1000kN Hole Diameter: 26mm
Marking Power: 800kN Die-stations: 3
High Light:

50mm CNC Plate Punching Machine

,

800kN CNC Plate Punching Machine

,

PLC Controlled CNC Plate Punching Machine

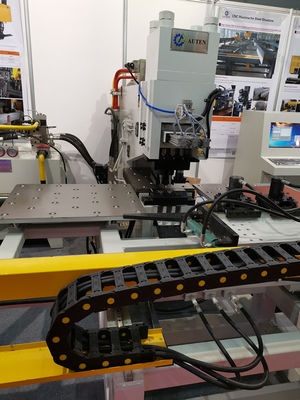

High Speed CNC Plate Punching Machine Metal Thickness 50mm Model PP103



Applicable industry:
Used for punching, marking and drilling of steel plates in the field of steel tower. It is also used to punch, drill and mark of metal plates of other industries.

Product feature:
1. The machine-frame is made by C-type plate welding, with good rigidity and big handling space. The machine sets three die-stations (among them, one is the marking die-station), automatic switching die-stations. Clamping system can adapt to different workpiece, with zero baffle as datum mark, and workpiece supported by rolling-ball working table. X & Y axis action controlled by servo motor and ball-screw driving and PLC control the position of punching, so as to make the whole machining process automatically; Operator input the workpiece program, it can be used repeatedly.
2. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision.

3. Easy programming, may input the diameter of holes, position and the quantity of work piece to computer, and also may use the program generated by lofting software, or adopt direct conversion CAD/CAM

High Speed CNC Plate Punching Machine Metal Thickness 50mm Model PP103 0



Specifications:

Model BNC100 BNCZ100
Max size of work piece L×W(mm) 1500×800
Max. punching diameter (mm) Φ26
Max. drilling diameter (mm) / Φ50
Plate thickness (mm) Punching 5~25 (Q235)
Drilling 40
Punching force (kN) 1000
Marking force (kN) 800
Min. distance between hole and plate edge (mm) Punching 25
Drilling Depends on hole diameter
Die-stations 3 4
Feeding speed of drilling(mm/min) / 25~280
Stroke of drilling spindle(mm) / 180
Rotation speed of drilling spindle(r/min) / 120~560
