Steel Structure Fabrication Core Machine High Speed CNC H Beam Drilling Machine Line

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Steel Structure Fabrication Core Machine High Speed CNC H Beam Drilling Machine Line

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: BHD1250C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD150000
Packaging Details: container
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/year
Detailed Product Description
Condition: New Drilling Speed: 30-3000r/min
Type: Drilling Mahine Max. H Beam Size: 1250x600mm
Spindle Type: BT40/BT50 Max. Hole Diameter: φ40/50 Mm
Max. Length: 12m After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

CNC H beam Drilling Machine

,

12m CNC H beam Drilling Machine

,

Steel Structure H beam Drilling Machine

Steel Structure Fabrication Core Machine High speed CNC H beam Drilling Machine Line

Application industry:

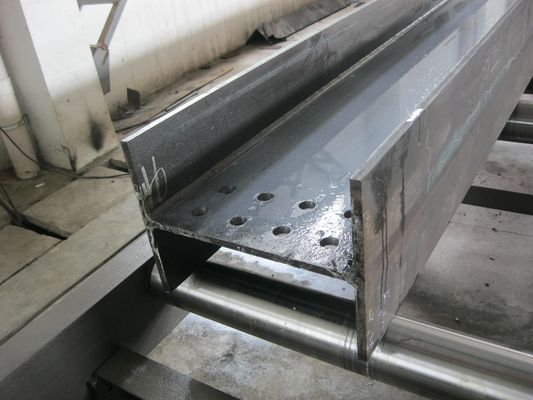

This machine tool is mainly used for drilling of H-shaped steel. The machine tool uses three high-speed precision drilling spindles to drill the workpiece. It has the characteristics of high machining accuracy and convenient operation. It is an indispensable high-efficiency equipment in the steel structure industry and is widely used in construction, bridges, tower masts and grids. And other industries.

Machine structure:

1.This machine tool is mainly composed of main machine body, cnc feeding system, material conveyor, electrical system, hydraulic system, cooling system, lubrication system, waste box and other parts. The machine tool adopts a fixed bed structure and a movable workpiece structure, which is suitable for the processing of large H-shaped steel, is convenient for continuous production, and has a high degree of automation.

 2. The lubrication system uses a combination of centralized lubrication and manual lubrication. Centralized lubrication is mainly used for timing and quantitative lubrication of main linear guides and lead screws.

     3. The control system of the machine tool is composed of a host computer, PLC and so on.

Programming method: input CAD drawings or processing parameters through USB interface or keyboard to generate processing program. The processing program can be stored, recalled, displayed and communicated at any time according to the part number. The machine tool can not only realize the manual adjustment and control of each processing parameter, but also realize the automatic control processing of the whole process.

 4. The material conveyor is divided into a material feeding conveyor and out-feeding conveyor. The feeding conveyor is composed of a conveyor support, a supporting roller, a side pushing device, etc., which is used to carry the profiled steel blank, position the profiled steel blank in the Y direction and cooperate with the CNC feeding device to feed. The out-feeding conveyor is composed of a material channel bracket, a supporting roller, etc., which are used to carry the finished workpiece.

Specifications:

H beam parameter Max. Size Width x Height 1250x600mm
Min. Size Width x Height 200×75mm
Max. Beam Length 12000mm
Main spindle Qty. 3
Model BT40
Motor power 3x11 kW
Spindle speed 200~3000 r/min
Max. Hole diameter φ40 mm
Motor power Feed servo motor power 2x3 kW
Positioning servo motor power 2x3 kW
Processing Accuracy Hole distance deviation Two holes within 1 meter ±0.5
The allowable deviation value increases by ±0.2mm for every additional 1 meter of the hole distance, and the maximum does not exceed ±2mm
End margin deviation ±1.0 mm
Hydraulic system Hydraulic pump pressure 7 MPa
Oil pump motor power 7kW
Electrical System Control method PLC
Number of CNC axes 7
Overall size (L x W x H) 32000x6200x4000
Weight of main machine About 15000kg
