CNC Angle Punching Machine Line For Power Transmission Steel Tower

CNC Angle Punching Machine Line For Power Transmission Steel Tower
CNC Angle Punching Machine Line For Power Transmission Steel Tower CNC Angle Punching Machine Line For Power Transmission Steel Tower CNC Angle Punching Machine Line For Power Transmission Steel Tower

Large Image :  CNC Angle Punching Machine Line For Power Transmission Steel Tower

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: JNC2020
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD50000-USD80000
Packaging Details: container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/year
Detailed Product Description
Condition: New Power Source: Hydraulic
Voltage: Customized Cnc Or Not: CNC
Angle Size: 50*50*4-200*200*20mm Punching Force: 1000kN
High Light:

Hydraulic CNC Angle Punching Machine

,

1000kN CNC Angle Punching Machine

,

Single Blade CNC Angle Line Machine

Top Quality CNC Angle Punching Machine Line Made in China for Power Transmission Steel Tower

Applicable Industry:The machine is the special equipment used for angle steel punching, marking & shearing in the field of angle steel tower industry.

Product Composition:

It is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.

Product Feature:

1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts all imported.

2. There are three sets of punch and die on each side which can install three kinds of punches with different diameters. Three sets of moulds can move altogether controlled by PLC to change the punching back mark.

3. Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece. Easy programming and can directly use the program data made by lofting software. Only need to input size of workpiece, diameter of holes, back mark and quantity of workpiece when edit program.

4. CNC infeed carriage is driven by servo motor. The photoelectric encoder feeds back the information. Closed loop control to ensure high positioning precision.

5. All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.

6. The control system consists of the host computer, CNC system, servo motor, PLC, external examination sensors, etc. Just input the dimension of workpiece, the processing will be created. Furthermore, the program can be stored, selected, displayed and communicated as per the workpiece No..



Specifications:



Model JNC1010 JNC1412 JNC2020
Angle size (mm) 40х40х3~
100х100х10
40х40х3~
140х140х12
50х50х4~
200х200х20

Max. Punching

(Dia. х Thi.) (mm)

Φ26х10 Φ26х12 Φ26х20
Punching force (kN) 630 630/1000 1000/1200
Marking force (kN) 630 630/900/1200
Cutting force (kN) 1000 900/1800 1540/4300
Max. length of blank (m) 12 12 14
Max.length of finished (m) 10 12 14
Punches per side 2 2 or 3 3
Group of marking letters 4 4 4
Number of letters per group 12
Character size(mm) 14x10x19
CNC axes 3
Cutting mode Single Blade Double Blade or Single Blade
Feeding speed of angle(m/min) 80 80 60
Processing precision Accordance with GB2694
Programming mode Input by keyboard,USB interface
Overall dimension (m) About 28x6.5x2.2 About 29x6.5x2.2 About 32x7x2.35

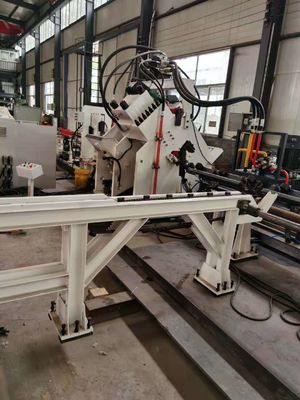

CNC Angle Punching Machine Line For Power Transmission Steel Tower 0
