Multifunction High Speed CNC Plate Punching And Drilling Machine Punching Hole Diameter 26mm

Certification
China Jinan Auten Machinery Co., Ltd. certification
China Jinan Auten Machinery Co., Ltd. certification
The cooperation is very enjoyable. Jinan Auten has an excellent professional team, the equipment works well and stable, the timely and enthusiastic after-sales service has impressed us. We hope that we can have more in-depth cooperation in the future!

—— PT. Bukaka

The CNC processing machine is easy for maintenance, high performance, moreover, the price is affordable.

—— Bob

Nice cooperation, we appreciate their patience, and hard working.

—— Mary

I'm Online Chat Now

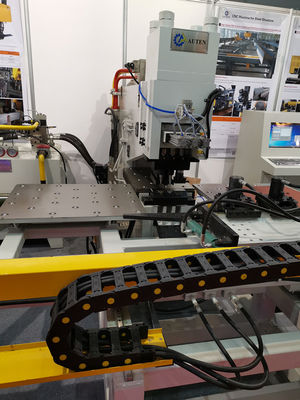

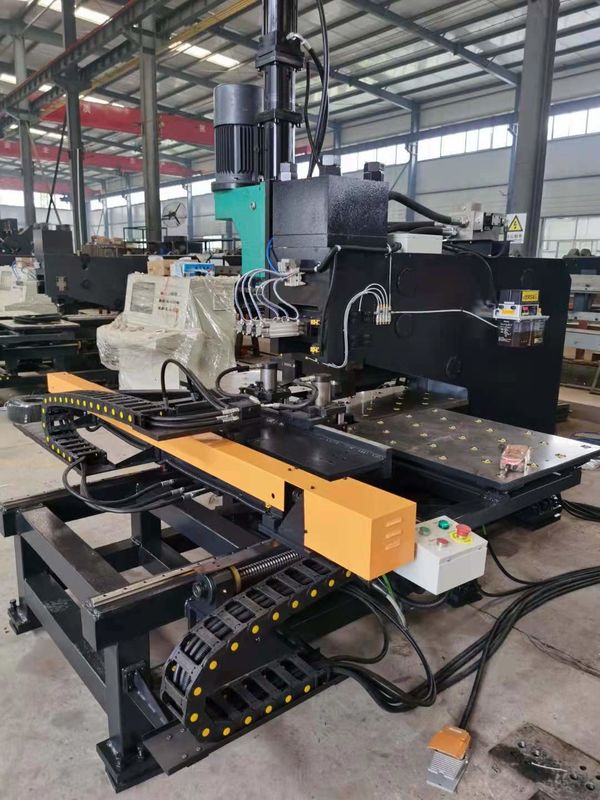

Multifunction High Speed CNC Plate Punching And Drilling Machine Punching Hole Diameter 26mm

Multifunction High Speed CNC Plate Punching And Drilling Machine Punching Hole Diameter 26mm
Multifunction High Speed CNC Plate Punching And Drilling Machine Punching Hole Diameter 26mm

Large Image :  Multifunction High Speed CNC Plate Punching And Drilling Machine Punching Hole Diameter 26mm

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: BNCZ100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 300 sets/year
Detailed Product Description
Plate Size: 1500x800mm Plate Thickness: 5~25mm
Punching Force: 1000kN Hole Diameter: 26mm
CNC Or Not: CNC Die-stations: 3
Drilling Hole Diameter: 50mm
High Light:

Multifunction Cnc Plate Drilling Machine

,

Diameter 26mm Cnc Plate Drilling Machine

,

RS232 Interface CNC Plate Punching Machine



Multifunction High Speed CNC Plate Punching and Drilling Machine Punching Hole Diameter 26mm



Applicable industry:
Used for punch, drill and mark of joint plate in the field of iron tower. It is also used to punch, drill and mark of metal plate of other trade.

Product feature:

1. The machine-frame is made by C-type plate welding, with good rigidity and big handling space. The machine sets three die-stations (among them, one is the marking die-station), automatic switching die-stations. Clamping system can adapt to different workpiece, with zero baffle as datum mark, and workpiece supported by rolling-ball working table. Axis X & Y action should be controlled by servo motor and ball-screw driving, and double-axis CNC system controls the position of punching, so as to make the whole machining process automatically; operator may input the sizes of workpiece to computer for repeated calling program in the future.

2. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision.

3. Important functional components adopt modular assembly, easy to repair it.

4. Carry out punching, marking and drilling on the one plate.

5. Drilling unit has the functions including rapid falling, slow work-feeding and quick feeding back to improve working efficiency.

6. Easy programming, may input the diameter and position of holes to computer, and also may use the program generated by lofting software, or adopt direct conversion CAD.

7. The hydraulic station adopts double pump, single motor, water cooling system, sleeve type coupling for all pipelines. The glue of hose and coupling are exported.



Product Basic Parameter:

Model BNCZ100
Max size of work piece L×W(mm) 1500×800
Max. diameter of punching (mm) Φ26
Plate thickness of punching (mm) 5~25 (Q235)
Max. diameter of drilling (mm) Φ50
Plate thickness of drilling (mm) 40
Punching force (kN) 1000
Marking force (kN) 800
Min. distance between hole and plate edge (mm) Punching 25
Drilling Depends on hole diameter
Dimensions of characters (mm) 14×10×19
Quantity of characters 12
Die-stations 4
Feeding speed of drilling(mm/min) 25~280
Stroke of drilling spindle(mm) 180
Rotation speed of drilling spindle(r/min) 120~560
Precision Accordance with GB2694
Programming mode Input by keyboard, RS232 interface, and USB interface
Overall dimensions L×W×H (mm) 3200×3000×2600
Weight of machine (kg) Approx. 5800
