Powerful Hydraulic And Pneumatic Systems CNC H Beam Drilling And Tapping Machine Total Power 52KW

Large Image : Powerful Hydraulic And Pneumatic Systems CNC H Beam Drilling And Tapping Machine Total Power 52KW

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001
Model Number:	BHD700

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	wooden case
Delivery Time:	60 days
Payment Terms:	L/C, T/T
Supply Ability:	200 sets/year

Contact Now

Detailed Product Description

Function:	Drilling And Tapping	Max. Size Width X Height:	700×500mm
Min. Size Width X Height:	100×100mm	Beam Length:	2000～12200mm
Main Spindle:	BT40	Motor Power:	11kw
Spindle Speed:	100～3000 R/min	Hole Diameter:	φ5～φ30 Mm
Highlight:	cnc tool grinding machine , cnc internal grinding machine

Powerful Hydraulic and Pneumatic Systems CNC H Beam Drilling and tapping Machine Total power 52KW

Application Industry:

This machine tool is primarily designed for drilling operations on H-shaped steel. It employs three high-speed precision drilling spindles for workpiece drilling, featuring high machining accuracy and user-friendly operation. As an indispensable high-efficiency equipment in the steel structure industry, it is widely utilized in sectors such as construction, bridges, tower masts, grids, and others.

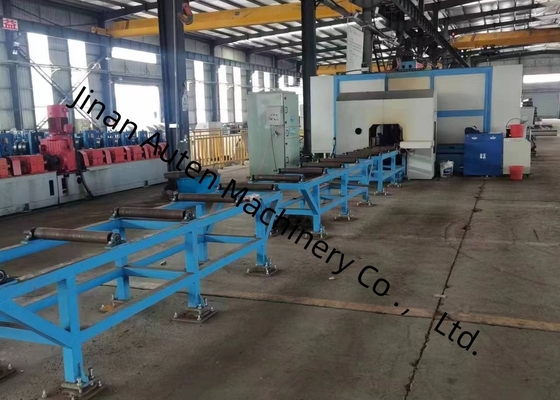

Powerful Hydraulic And Pneumatic Systems CNC H Beam Drilling And Tapping Machine Total Power 52KW 0

1. Cooling system:

The aerosol cooling method is used to cool the drill bit, that is, it is realized by compressed air + cooling water. Its advantages are less coolant consumption, cost saving, environmental protection, and reduced drill bit wear. The flexible nozzle is installed on the headstock, and the spray position of the nozzle can be adjusted conveniently, so that it can always cool the drill bit.

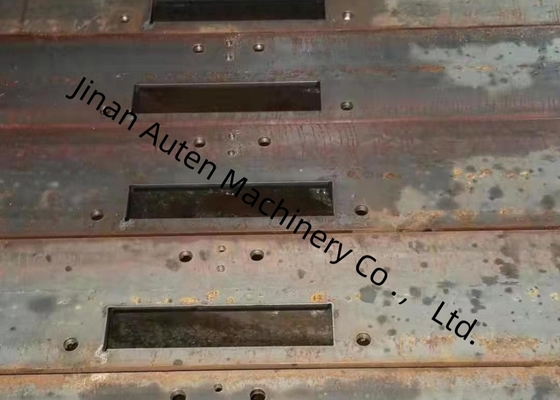

Powerful Hydraulic And Pneumatic Systems CNC H Beam Drilling And Tapping Machine Total Power 52KW 1

2. Hydraulic system: Provide power to the workpiece pressing device.

3. Pneumatic system: It is used to provide power to the side thruster, main shaft blowing, etc.

4. Lubrication system:

It adopts a combination of centralized lubrication and manual lubrication. A centralized lubrication device is used for regular and quantitative lubrication of certain linear guides and lead screws, and other lubrication points are lubricated by manual lubrication.

Powerful Hydraulic And Pneumatic Systems CNC H Beam Drilling And Tapping Machine Total Power 52KW 2

5. Electrical System:

The control system of the production line is composed of a host computer and PLC.
Programming method: Automatically generate processing programs through CAD drawings.

Powerful Hydraulic And Pneumatic Systems CNC H Beam Drilling And Tapping Machine Total Power 52KW 3

Specifications:

H beam parameter	Max. Size Width x Height		700×500mm
	Min. Size Width x Height		100×100mm
	Beam Length		2000～12200mm
Main spindle	Qty.		3
	Model		BT40
	Motor power		11 kW
	Spindle speed		100～3000 r/min
	Hole diameter		φ5～φ30 mm
CNC axis	Servo motor power of X axis		About 5 kW
	Servo motor power of horizontal drilling positioning axis		About 1.5 kW
	Servo motor power of vertical drilling positioning axis		About 3 kW
	Servo motor of drilling infeeding		About 2 kW
Tool magazine	Qty.		3
	Type		Row style
	Tool magazine capacity		4 x 3
Processing Accuracy	Hole distance deviation	Two holes within 1 meter	±0.5
		The allowable deviation value increases by ±0.2mm for every additional 1 meter of the hole distance, and the maximum does not exceed ±2mm
	End margin deviation		±1.0 mm
Machine size			About 33x5.5x3.3m
Total power			About 52 kW
