High Speed 1000 x 1000mm CNC Plate Drilling and Milling Machine Model PHD1010 for High-Volume Plate/Structural Component Machining

High Speed 1000 x 1000mm CNC Plate Drilling and Milling Machine Model PHD1010 for High-Volume Plate/Structural Component Machining
High Speed 1000 x 1000mm CNC Plate Drilling and Milling Machine Model PHD1010 for High-Volume Plate/Structural Component Machining High Speed 1000 x 1000mm CNC Plate Drilling and Milling Machine Model PHD1010 for High-Volume Plate/Structural Component Machining High Speed 1000 x 1000mm CNC Plate Drilling and Milling Machine Model PHD1010 for High-Volume Plate/Structural Component Machining

Large Image :  High Speed 1000 x 1000mm CNC Plate Drilling and Milling Machine Model PHD1010 for High-Volume Plate/Structural Component Machining

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: PHD1010
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
LxW: 1000 X 1000 Mm Gantry Height: 600mm
Spindle Taper: BT50 Max.drilling Diamter: Φ60 Mm
Max.thickness: ≤180 Mm Tapping Diameter: M3-M20
Spindle Speed: 30~3000 R/min

Application:

The CNC gantry drilling and milling machine is primarily designed for drilling, chamfering, tapping, and milling operations on plate/structural components, including flanges, discs, rings, and plates, within its effective processing range. It enables drilling of through-holes and blind holes on both single-material and composite workpieces. With fully digital control over the machining process, the machine offers intuitive operation, supporting automated, high-precision, multi-variety, and mass-production capabilities.

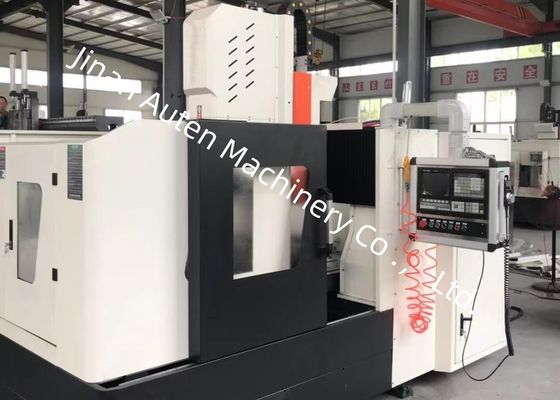

High Speed 1000 x 1000mm CNC Plate Drilling and Milling Machine Model PHD1010 for High-Volume Plate/Structural Component Machining 0



Equipment Structure:
The equipment features an integrally cast structure, comprising a worktable, fixed-beam gantry, movable sliding saddle, drilling & milling power head, automatic lubrication system, protective enclosures, circulating cooling device, CNC system, and electrical system. Supported by rolling hard rail pairs for guidance and driven by precision lead screw pairs, the machine ensures high positioning accuracy and repeat positioning accuracy.

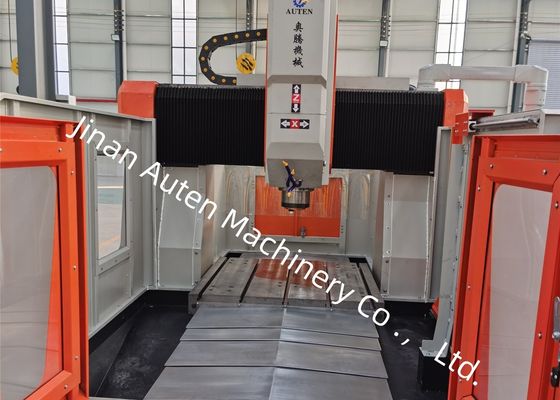

High Speed 1000 x 1000mm CNC Plate Drilling and Milling Machine Model PHD1010 for High-Volume Plate/Structural Component Machining 1





  1. T-Slot Workbench
    Constructed from gray iron (HT250), the workbench undergoes secondary tempering and vibration aging treatment to eliminate internal stress, ensuring exceptional rigidity and resistance to deformation.
  2. Fixed-Beam Gantry
    The fixed-beam gantry is fabricated from gray iron (HT250) casting. Its front face is equipped with two ultra-high-load rolling linear guide pairs, a set of precision ball screw pairs, and a servo motor, supporting the installation of the drilling power head for smooth linear motion.

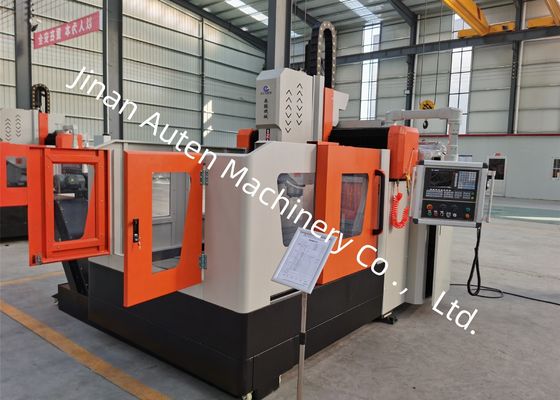

High Speed 1000 x 1000mm CNC Plate Drilling and Milling Machine Model PHD1010 for High-Volume Plate/Structural Component Machining 2



3. Movable Sliding Saddle
Engineered as a precision cast iron structure, the sliding saddle integrates two high-load CNC hard-track sliding tables, a set of precision ball screw pairs, and a high-precision planetary reducer connected to the servo motor. This configuration drives the Z-axis movement of the drilling power head, enabling functions such as rapid forward/backward motion, working feed, stop, and automatic chip breaking/removal with pause.

Specifications:

Workpiece size LxW 1000x1000 mm
Gantry height 600 mm
Drilling power head Qty. 1
Spindle taper BT50
Max.drilling diamter Φ60 mm
Max.thickness ≤180 mm
Tapping diameter M3-M20
Spindle speed 30~3000 r/min
Servo spindle motor power 11kW
Distance from the lower end of the spindle to the worktable 200-600mm

Lateral movement of power head

(X axis)

 Max.horizontal stroke 1000 mm
Lateral movement speed 0~9 r/min
Servo motor power for lateral movement 10N/M
Gantry longitudinal movement (Y axis) Max. feed stroke 1000 mm
Feed moving speed 0~9 m/min
Feed servo motor power 15N/M
Vertical ram feed motion (Z axis) Max. stroke 400 mm
Moving speed 0~8 m/min
Servo motor power 1x15N/M (Brake)
Three-axis positioning accuracy X/Y/Z/A/B/C 0-0.02mm
Three-axis repeat positioning accuracy X/Y/Z/A/B/C 0-0.01mm
Machine weight / About 5T
Overall size LxWxH 3200x2200x2200 mm



Main components:

No. Name Brand
1 CNC system China GSK/KND
2 servo motor+ servo driver China GSK/KND
3 Pneumatic knife cylinder China Taiwan AirTAC
4 low-voltage apparatus Omron/Schneider/Delixi
5 Auto lubrication system China Taiwan Hurun
6 ball screw Taiwan TBI
7 linear guide Taiwan HIWIN
8 Hydraulic valves Italy ATOS
9 High flexible shielded cable China ECHU
10 Rotary joint Italy Rotofors
