China Top Quality Manufacture for CNC Drilling, Punching, Cutting, Milling, Forming Machines of Angles, Beams, Plates and Flanges!
Do the new ones, do the good ones !
|
Product Details:
Payment & Shipping Terms:
|
| Cutting Range: | 6m 9m 12m( Customized ) | Cutting Method: | Flame/plasma |
|---|---|---|---|
| Flame Cutting Speed: | 20—700mm/min | Plasma Cutting Speed: | 500-3500mm/min |
| Plasma Max. Hole Thickness: | 14mm | Driving Mode: | Servo |
| High Light: | pipe cutting beveling machine,cnc tube punching machine |
||

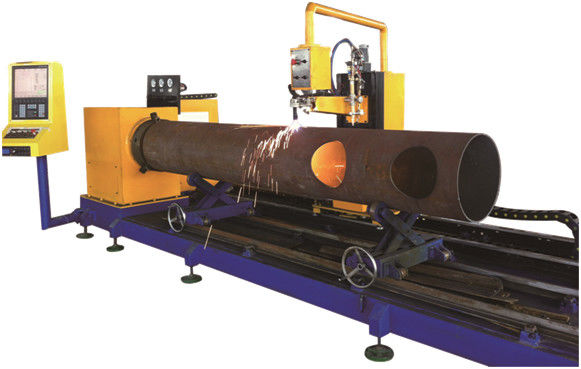

3 Axis CNC Pipe Cutting Machine Cutting Round Steel Pipes with High Precision
Parameter:
| Mode | XY3 Pipe CNC cutting machine |
| Cutting range | 6m 9m 12m( customized ) |
| Machine size | 7800*1800*1650mm( customized ) |
| Cutting method | Flame/plasma |
| Flame cutting speed | 20—700mm/min |
| Plasma cutting speed | 500-3500mm/min |
| Control system | Advantech industrial computer |
| Plasma Max. hole thickness | 14mm |
| Plasma Max. edge cutting thickness | 18mm |
| Plasma torch anti-collision system | yes |
| Driving mode | servo |
| Software | KSY pipe apply software |
| Nesting software | STARCAM/FASTCAM |
| Working condition | |
| Working pressure of compressed gas | Above 7mpa |
| Required gas flow of plasma | 4500L/H |
| Working environment | Ventilation, no concussion |
| Power wattage | 5KW |
| Types of gas | Acetylene propane |
Brief introduction:

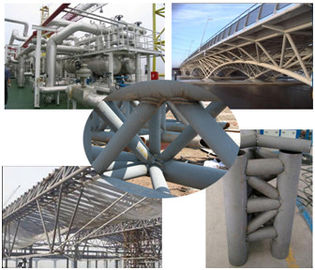

Used for cutting round steel pipes. It can cut carbon steel, stainless steel and other material. It is widely used in cutting pressure vessel pipes, pipe processing, network structure, steel structure, marine engineering, oil pipelines and other industries.
Features:

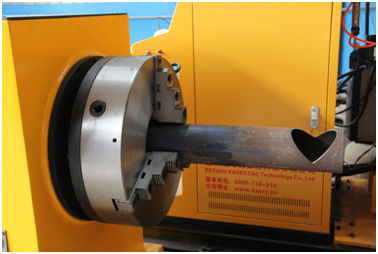

Details

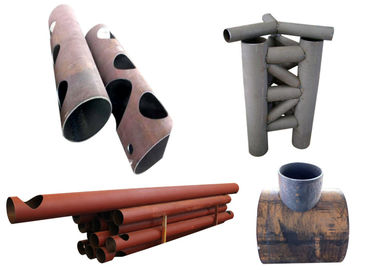

Workpieces
