8 Axis CNC Cutting Machine for all Profiles & Pipes Advanced Technology

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  8 Axis CNC Cutting Machine for all Profiles & Pipes Advanced Technology

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: 8 Axis
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 50 days
Payment Terms: L/C, T/T
Supply Ability: 300 sets/year
Detailed Product Description
Cutting Range: 6m 9m 12m( Customized ) Cutting Method: Flame/plasma
Flame Cutting Thickness: 6—60mm Plasma Cutting Thickness: Standard 2—14mm
Plasma Max. Edge Cutting Thickness: 18mm Require Gas Flow Of Plasma: 4500L/H
High Light:

cnc plasma pipe cutting machine

,

pipe cutting beveling machine

8 Axis CNC Cutting Machine for all Profiles & Pipes Advanced Technology



Applications:

1. Applies to cut all kinds profiles, such as channel, beam, angle, ball flat steel, pipe and rectangular pipe and other type pipes.

2. Especially for steel construction, shipbuilding, marine engineering, the elevator industry, building walls, bridges, towers and mechanical engineering industries.



Brief introduction:

It is specialized cutting machine for square pipe, rectangular pipe, oval pipe and profile H ,L ,U type steel and any other special pipes.



Features:

1, AUTOCAD space programming system configuration KSY application plug-ins, modeling at a glance, enabling the cutting process requirements rectangular, tapered, polygonal, oval-shaped pipe, and other special fittings

2. Independent research and development to optimize CNC pipe systems with large EGES DXF SAT and STL software compatibility.

3. The users can enjoy free special cutting technology development and lifelong technical services.



Parameter:

Model 8 axis all profiles & pipes CNC cutting machine
Cutting range 6m 9m 12m ( customized )
Machine size 7200*1350*2000mm( customized )
Cutting method Flame/plasma
Cutting thickness

Flame:6—60mm

Plasma: standard 2—14mm

Flame cutting speed 20—700mm/min
Plasma cutting speed 500-3500mm/min
Control system Advantech industrial computer
Plasma Max. hole thickness 14mm
Plasma Max. edge cutting thickness 18mm
Plasma torch crash protection system Yes
Driving motor Servo
Software KSY pipe apply software
Working condition
Working pressure of compressed gas Above 7mpa
Require gas flow of plasma 4500L/H
Working environment Ventilation ,no concussion
Power wattage 5KW
Types of gas Acetylene propane



8 Axis CNC Cutting Machine for all Profiles & Pipes Advanced Technology 0

                                                                                         Details

8 Axis CNC Cutting Machine for all Profiles & Pipes Advanced Technology 1

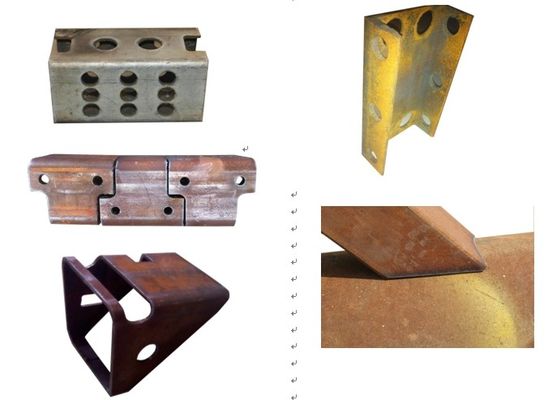

Workpiece

8 Axis CNC Cutting Machine for all Profiles & Pipes Advanced Technology 2

Workpiece



                                     8 Axis CNC Cutting Machine for all Profiles & Pipes Advanced Technology 3

Structure
