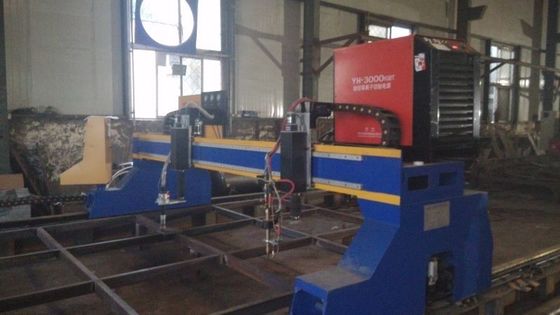

Heavy Type CNC Metal Plate Flame and Plasma Cutting Machine with High Precision

Heavy Type CNC Metal Plate Flame and Plasma Cutting Machine with High Precision
Heavy Type CNC Metal Plate Flame and Plasma Cutting Machine with High Precision Heavy Type CNC Metal Plate Flame and Plasma Cutting Machine with High Precision Heavy Type CNC Metal Plate Flame and Plasma Cutting Machine with High Precision Heavy Type CNC Metal Plate Flame and Plasma Cutting Machine with High Precision

Large Image :  Heavy Type CNC Metal Plate Flame and Plasma Cutting Machine with High Precision

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: PL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 300 sets/year
Detailed Product Description
Cutting Range: 2.2m (customized) Cutting Method: Flame/Plasm
Flame Cutting Thickness: 6~160mm Effective Cutting Length: 4m (customized)
Plasma Source /thickness: Hypertherm 125A .25mm Warranty: 1 Year
High Light:

cnc plasma flame cutter

,

gantry cnc cutting machine

Heavy Type CNC Metal Plate Flame and Plasma Cutting Machine with High Precision



Brief introduction

Gantry CNC cutting machine. Applicable to all kinds of thick sheet metal precision machining industry, such as: sheet metal processing, steel, shipyards, mechanical processing and other large enterprises.



Features:

It suitable for industrial applications with long time and can meet the high standards of the precision, performance and simple operation.

Unlimited turret solved the difficult problem of plate groove cutting, tilt up to 50 °. Incremental sensors for long variable groove, constant angle torch height control provided by the plasma arc voltage.



Parameter:

No. Items Parameters
1 Effective cutting width 2200mm
2 Effective cutting length 4000mm
3 Flame cutting thickness 6-160mm
4 High precision Plasma source /thickness Hypertherm 125A .25mm
5 Cutting torch lifting distance 200mm
6 Machine speed 0-9000mm/min
7 Speed error ≤±5%
8 Flame torch One group
9 Plasma torch One group
10 HYD Arc voltage height control One ,best brand in China
11 Automatic ignition device Four
12 Drive mode Bilateral drive
13 System console direction According to user requirements
14 Transmission pipeline Towline lateral, vertical towline
15 Auto-precision ≤±1.0mm
16 Longitudinal linear precision ±0.2mm/10m



17

Integrated precision machine

(to the right of integrated graphics shall prevail) length (four) 1000 x 1000

Scribing speed 500-800mm/min
Heavy Type CNC Metal Plate Flame and Plasma Cutting Machine with High Precision 0
18 Length (four) ±0.5mm
19 Diagonal error |AD-BC| ±0.5mm
20 Back to the origin of deviation ±0.2mm
21 Intersection deviation ±0.5mm
22 Inverse linear deviation ±0.2mm
23 Cutting surface quality (roughness) (optional δ = 25 plates)

Rz(um)=70+1.2a

Visual: Roughness 12.5

24 Squareness and inclination tolerances

μ(mm)=0.4+0.015a

Tools: angle ruler

25 Straight angle

4M × 20M square diagonal error

≦ ± 0.2 mm / 10m

26 Walks nonstraightness

Longitudinal ≦ ± 0.2mm / effective length

Transverse ≦ ± 0.2mm / effective length

20 Torch angle error ≦±0.5º
21 Equipment Noise ≤80 db
22 Raile & guide way From taiwan ,30kg heavy rails
23 Rack & Pinion From Gearbox Germany



Remark: The parameter only for reference, the cutting range and machine size can be designed according to user’s requirement.
