Product Details:
Payment & Shipping Terms:
|
| Machine Function: | Used For Angle Cutting, Die Changing For Marking And Punching | Processing Angle Steel Size Range (mm): | L40×40×3~L200×200×20 |
|---|---|---|---|
| Nominal Pressure(kn): | 1600 | Cylinder Stroke(mm): | 60 |
| Maximum Cutting Ability: | L200×200×20 | Shearing Times（min-1）: | 15~20 |
| Angle Cutting Die Rotation Angle(°): | 360（manual） | ||
| Highlight: | cnc plasma flame cutter,gantry cnc cutting machine |
||

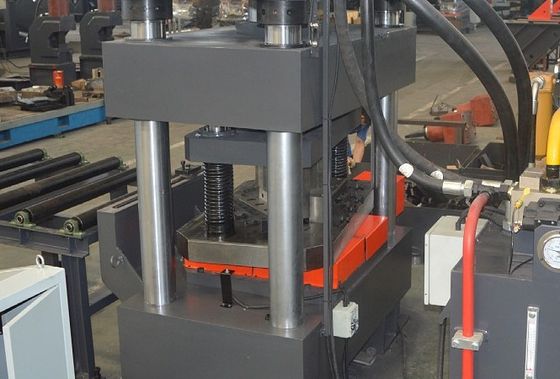

QJ20 Hydraulic Angle Cutting Machine for angle cutting die changing for marking and punching
Usage
This machine is mainly used for angle steel, plate and other cutting angle.
Advantages
QJ200 Hydraulic Angle Cutting Machine is a four-column closed structure, the structure of strong steel. Angle cutting mould for the right angle of four edges, rotary multi-directional angle cutting mould, cut different angles of the angle, only need to adjust the rotary mould frame can be, the angle does not need to rotate, so the angle cutting operation covers an area of small, small angle cutting error. The four edges of the blade can be used, the use rate of the blade has been greatly improved.
Parameter:
| Machine model | QJ20 | |
|
Machine function |
Used for angle cutting, die changing for marking and punching | |
| Processing angle steel size range (mm) | L40×40×3~L200×200×20 | |
| nominal pressure(kn) | 1600 | |
| cylinder stroke(mm) | 60 | |
|
maximum cutting ability |
Material Q345 510N/mm² | L200×200×20 |
| Material Q420 560N/mm² | L200×200×16 | |
| shearing times(min-1) | 15~20 | |
| angle cutting die rotation angle(°) | 360(manual) | |
