630KN Punching Force Customizable CNC Angle Punching Marking And Shearing Line 4 Group of Marking letters

Large Image : 630KN Punching Force Customizable CNC Angle Punching Marking And Shearing Line 4 Group of Marking letters

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001
Model Number:	JNC1412

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	wooden case
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	200 sets/year

Contact Now

Detailed Product Description

Functions:	Punching, Marking, Cutting	Max. Length Of Blank (m):	12
Max. Length Of Finished (m):	10	Punches Per Side:	2
Group Of Marking Letters:	4	Number Of Letters Per Group:	12
Dimension Of Letter (mm):	141019	Cutting Mode:	Single Blade Cutting
Highlight:	cnc tool grinding machine , cnc profile grinding machine , 350mm Dia CNC Grinding Machine

630KN Punching Force Customizable CNC Angle Punching Marking And Shearing Line 4 Group of Marking letters

Applicable Industry:

This machine is a specialized equipment designed fo

r angle steel punching, marking, and shearing operations in the angle steel tower industry.

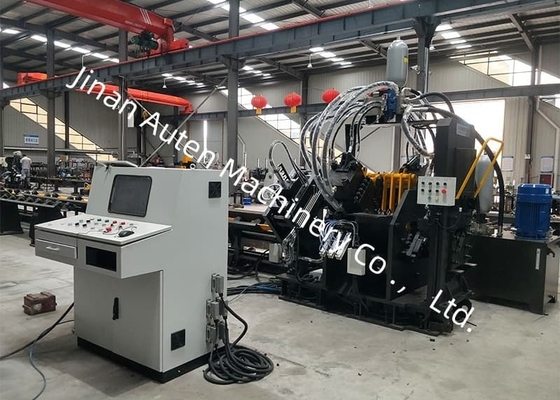

630KN Punching Force Customizable CNC Angle Punching Marking And Shearing Line 4 Group of Marking letters 0

Product Composition:

This machine is primarily composed of a transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical, and pneumatic systems, among other components.

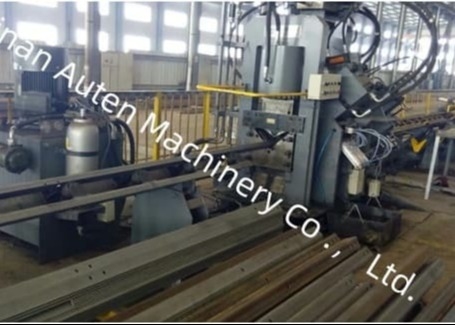

630KN Punching Force Customizable CNC Angle Punching Marking And Shearing Line 4 Group of Marking letters 1

Product Features:

1. Incorporates CNC technology and servo motor feeding, delivering high efficiency and consistent workpiece precision. Key hydraulic, pneumatic, and electrical components are all imported.

2. Each side is equipped with three sets of punches and dies, capable of accommodating three punches with different diameters. Under PLC control, the three sets of moulds can move synchronously to adjust the punching back mark.

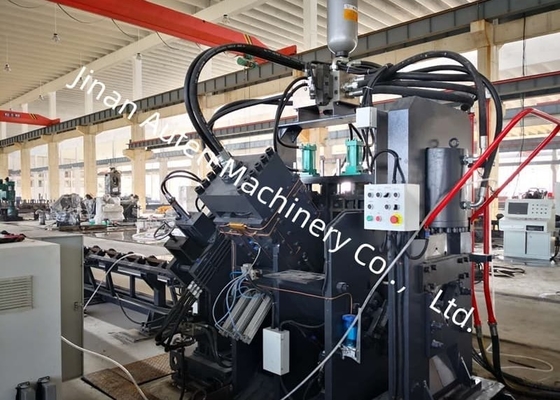

630KN Punching Force Customizable CNC Angle Punching Marking And Shearing Line 4 Group of Marking letters 2

Specifications:

Functions	Punching, marking, cutting
Angle size(mm)	∟40×40×3～∟140×140×12
Max. length of blank (m)	12
Max. length of finished (m)	10
Max. Punching (dia. х thi.) (mm)	Φ26×12(Material:Q345 510N/mm2)
Punches per side	2
Punching force (kN)	630
Marking force (kN)	630
Cutting force (kN)	1800
Group of Marking letters	4
Number of letters per group	12
Dimension of letter (mm)	14×10×19
Cutting mode	Single blade cutting
CNC axes	3
Feeding speed of angle (m/min)	80
Cooling method of hydraulic system	Water cooling
Processing precision	Accordance with GB2694
Program function	Input by keyboard and USB interface
Dimension(mm)	28000×6500×2200
