High Speed CNC Plate Punching and Marking Machine Used for Steel Plates Processing Holes

High Speed CNC Plate Punching and Marking Machine Used for Steel Plates Processing Holes
High Speed CNC Plate Punching and Marking Machine Used for Steel Plates Processing Holes

Large Image :  High Speed CNC Plate Punching and Marking Machine Used for Steel Plates Processing Holes

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: BNCZ100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 300 sets/year
Detailed Product Description
Plate Size Scope: 1500x800mm Thickness: 5~25 (Q235)
Punching Force: 1000kN Hole Diameter: 26mm
CNC Or Not: CNC Die-stations: 3
Drilling Spindle: 120~560 R/min Weight: 5500kgs
High Light:

cnc plate drilling machine

,

steel plate punching machine

High Speed CNC Plate Punching and Marking Machine Used for Steel Plates Processing Holes



Applicable:
Used for punching, marking and drilling of steel plates in the field of steel tower. It is also used to punch, drill and mark of metal plates of other industries.

Feature:
1. The machine-frame is made by C-type plate welding, with good rigidity and big handling space. The machine sets three die-stations (among them, one is the marking die-station), automatic switching die-stations. Clamping system can adapt to different workpiece, with zero baffle as datum mark, and workpiece supported by rolling-ball working table. X & Y axis action controlled by servo motor and ball-screw driving and PLC control the position of punching, so as to make the whole machining process automatically; Operator input the workpiece program, it can be used repeatedly.
2. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision.
3. Drilling unit has the functions including rapid falling, slow work-feeding and quick feeding back to improve working efficiency.
4. Easy programming, may input the diameter of holes, position and the quantity of work piece to computer, and also may use the program generated by lofting software, or adopt direct conversion CAD/CAM.

High Speed CNC Plate Punching and Marking Machine Used for Steel Plates Processing Holes 0



Product Basic Parameter



Model BNC100
Max size of work piece L×W(mm) 1500×800
Max. diameter of punching (mm) Φ26
Plate thickness of punching (mm) 5~25 (Q 235)
Punching force (KN) 1000
Marking force (KN) 800
Min. distance between hole and plate edge (mm) 25
Dimensions of characters (mm) 14×10×19 By customers’ request
Quantity of character 12
Die-stations 3
Precision Accordance with GB2694
Programming mode Input by keyboard, RS232 interface and USB interface
Overall dimensions L×W×H (mm) 3200×3000×1900





Machine details:



High Speed CNC Plate Punching and Marking Machine Used for Steel Plates Processing Holes 1

High Speed CNC Plate Punching and Marking Machine Used for Steel Plates Processing Holes 2



High Speed CNC Plate Punching and Marking Machine Used for Steel Plates Processing Holes 3

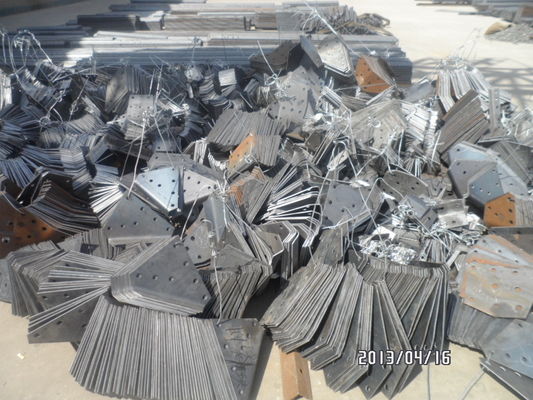

                                                                                 Workpieces
