High Speed Automatic Galvanize Steel Roller Forming Machine Cable Tray Making Machine

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  High Speed Automatic Galvanize Steel Roller Forming Machine Cable Tray Making Machine

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 60 days
Supply Ability: 200 sets per year
Detailed Product Description
Function: Roll Forming Galvanize Cable Tray Material: Mild Steel ,galvanized Steel
Material Thickness: 0.5~2 Mm Material Width: 100~700mm
Tray Side Height:: 50~200mm
High Light:

cold roll forming machine

,

corrugated plate roll forming machine

High Speed Automatic Galvanize Steel Roller Forming Machine Cable Tray Making Machine

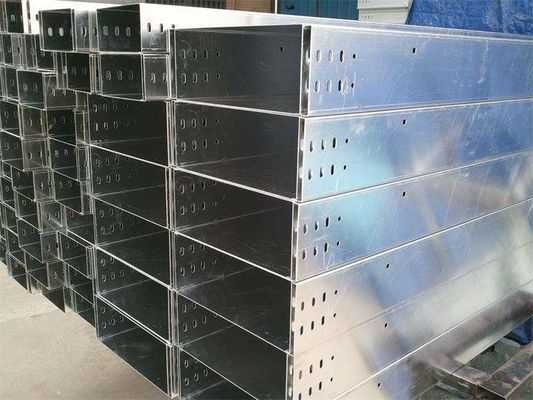

High Speed Automatic Galvanize Steel Roller Forming Machine Cable Tray Making Machine 0



The production line is highly integrated by uncoiling, leveling, forming, cutting off, punching. The whole production line is controlled by PCL program. Operators can select a preset program to run the whole line automatically by using touch screen. The methods of operation include automatic control, manual control, separate operation and emergency stop.



Main technical parameters of roll forming machine metal roof



Suitable material

Aluminum coils

Thickness:0.3 mm-6mm
Forming speed

about 35-40m/min (without cut time)


Power Requirement
Main motor power:5.5KW
Electric power:3kw
Material of forming rollers

High grade No.45 forged steel, with digital-controlled procession,

plated wit chrome on surface

Material of cutting device

Cr12 Mov.with quenched treatment

Material of shaft
Dia. is 72mm
Control system

Mitsubishi PLC and transducer (Japan)

Machine weight

8060kgs

Machine’s layout size

8.975*1.63*1.75 m(L*W*H)

1

Manual decoiler

1 pc (capacity:5 tons)

2

Guiding Equipment

1 set
3

Roll Forming Equipment

1 set
4

Auto Electrical Cutting Device

1 pc
5

PLC Control Panel

1 set

6

Tool Box

1 pc

High Speed Automatic Galvanize Steel Roller Forming Machine Cable Tray Making Machine 1
