Heavy Large Culvert Steel Roller Forming Machine , Corrugated Sheet Making Machine

Heavy Large Culvert Steel Roller Forming Machine , Corrugated Sheet Making Machine
Heavy Large Culvert Steel Roller Forming Machine , Corrugated Sheet Making Machine

Large Image :  Heavy Large Culvert Steel Roller Forming Machine , Corrugated Sheet Making Machine

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: DFCP1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 75 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/year
Detailed Product Description
Raw Material: Hot Rolled Steel Plate Raw Material Yield Strength: 235Mpa
Raw Material Tension Strength: Max 450Mpa Suitable Steel Coil Outer Diameter: ≤Ф1500 Mm
Suitable Steel Coil Inner Diameter: Ф508mm Raw Material Width: ≤1200mm
Raw Material Thickness: 10mm Name: Steel Roll Forming Machine
High Light:

cold roll forming machine

,

corrugated plate roll forming machine

High Precison Highway Railway Heavy Large Culvert Corrugated Plate Roll Forming Machine Line



Introduction:

The corrugated steel plate culvert is a high-quality highway building material that replaces the circular pipe culvert, the cover culvert, the box culvert, the arch culvert and the small bridge. It can be used for highway and railway transverse passages, tunnels, culverts, drainage pipes and shelters.



Wave plate culvert advantages:

1. The corrugated steel plate culvert has both rigidity and flexibility; the structure is subjected to reasonable force, the load distribution is uniform, and it has certain resistance to deformation.

2. Standardized design, large-scale factory production; short production cycle, high efficiency, is conducive to reducing costs and improving quality.

3. The installation speed is fast, the construction period is short, and the social and economic benefits are obvious.

4. Construction can be carried out all year round, construction is not affected by the season, and is not affected by the environment.

5. It can effectively solve the problem of damage to concrete bridges and culverts due to repeated frost heaving in cold regions of northern area.

6. It is especially suitable for long-term: special areas such as frozen soil, expansive soil, soft soil and collapsible loess, which can avoid the damage of culvert caused by uneven settlement caused by deformation of foundation.

7. Reduce the use of conventional building materials such as cement, sand, stone, etc.

8. Compared with concrete bridges and culverts, the comprehensive cost of corrugated steel plate bridges and culverts of the same span is low.

9. The amount of post-care work is small and the cost of maintenance is low.



Wave plate culvert application field:

1. Roads and railways: culverts, passages, small bridges, tunnels, culvert overhauls, temporary access roads, seepage wells.

2. Municipal and construction: common trench, optical cable protection, drainage ditch, tower crane cofferdam, vertical pile shell.

3. Coal mines: mineral pipelines, personnel and mining machinery passages, shafts.

4. Civil use: power plant flue, grain storage bin, fermenter, wind power.

5. Military: military access roads, air defense passages, evacuation passages.



Main technical parameter:

Raw material yield strength: 235MpaRaw material kind: cold rolled steel (Q235)

Raw material tension strength: max 450Mpa

Suitable steel coil outer diameter: ≤Ф1500 mm

Suitable steel coil inner diameter: Ф508mm

Raw material width: ≤1200mm

Raw material thickness: 10mm

Single steel coil weight: max 10000kg

Remark: The parameter only for reference, the size can be designed according to user's requirement.





High Speed Automatic Highway Guardrail Two Waves Roll Forming Machine Production Line Top Quality


Highway guardrail machine:

Roll forming machine for Guard rail product line, can manufacture various kinds of Guardrail panels that have a fashionable outline and high tension strength. They are easily to install and can bring high economical benefit, which are popular used in the high way construction field. The production line consist cutting device, hydraulic units, computer control system, worktable, punching device and so on!

We can manufacture many kinds of panel to satisfy customers, you can also provided the drawings what you want or real objects of sectional materials and then we will manufacture it for you accordingly.



Roll forming line working process:

Decoilre-leveler-material loopservo feedermulti-station punchermain roll formermoving cutterauto stacker



Specifications:

Material hot rolled low carbon steel
Material yield strength 235~350Mpa
Material tension strength max 515Mpa
Suitable steel coil outer diameter ≤Ф1820 mm
Suitable steel coil inner diameter Ф500~608mm
Material width ≤750mm
Material thickness 3.0mm
Single steel coil weight: Max 6000kg






Heavy Large Culvert Steel Roller Forming Machine , Corrugated Sheet Making Machine 0Heavy Large Culvert Steel Roller Forming Machine , Corrugated Sheet Making Machine 1

Heavy Large Culvert Steel Roller Forming Machine , Corrugated Sheet Making Machine 2

Heavy Large Culvert Steel Roller Forming Machine , Corrugated Sheet Making Machine 3

Heavy Large Culvert Steel Roller Forming Machine , Corrugated Sheet Making Machine 4

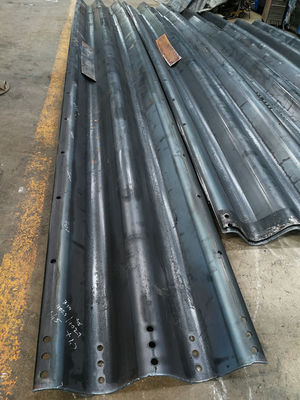

Workpiece showing
