Product Details:
Payment & Shipping Terms:
|
| Oil Tank Pressure (kN): | 1600 | Angle Opening & Closing Range (mm): | L80x7～L200x16 |
|---|---|---|---|
| Angle Opening & Closing Degree (°): | 16° | Heating Power (kW): | 2x80 |
| Outside Double-sided Bending: | L80x7～L250x32 | Inner Single Side Bending: | L80x7～L200x18 |
| High Light: | 28g/M2 Surgical Face Mask,Non Woven Surgical Face Mask |
||

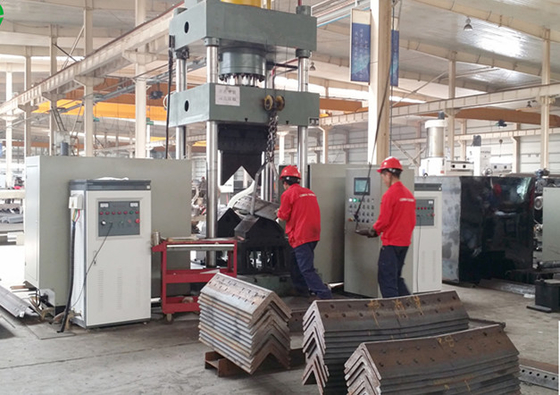

Electric Heating CNC Angle Bending Machine High Efficiency and Fast Speed
Applicable industry:

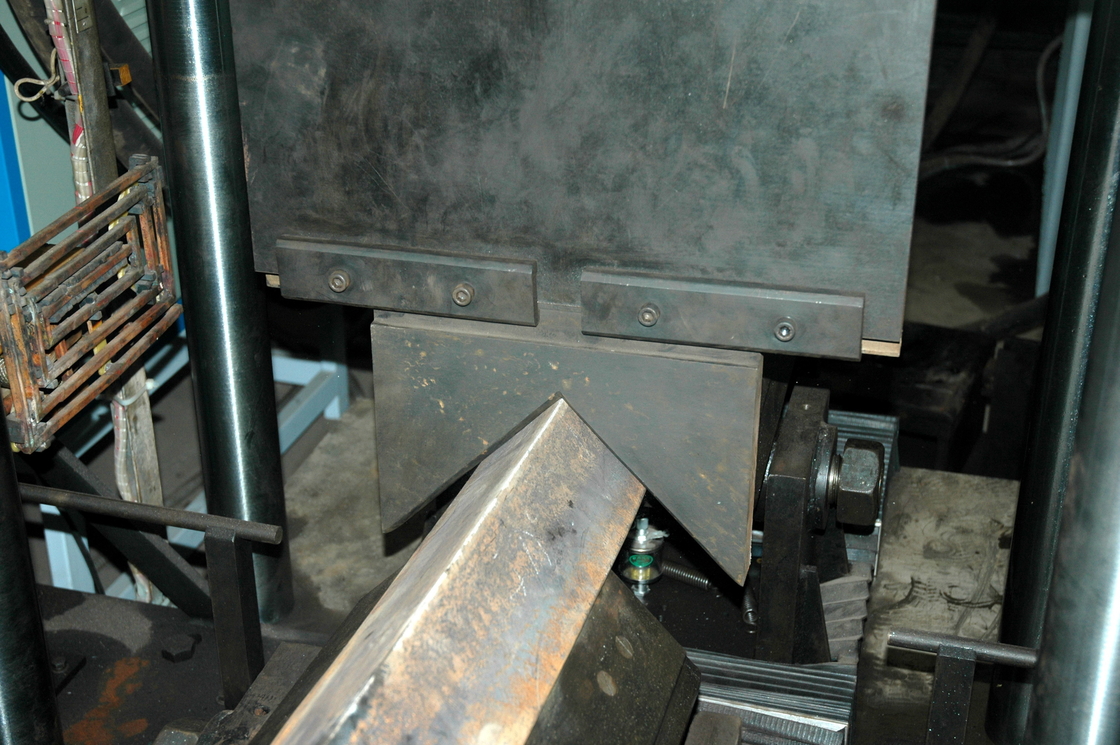

Heat bending also call fire bending , after the workpiece heated to a definite temperature of the bending process. It is used to bend angle of angle steel for Transmission tower & Communication tower & Microwave tower etc.
Features:
1. It adopts numerical control programmable controller, touch screen input information and status feedback, and the operation is simple.

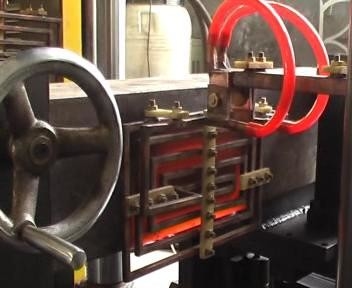

2, Adopts intelligent super-audio induction heating, in order to improve production efficiency, reduce production costs while ensuring the company's working environment.
3, Multi-purpose machine, does not need to be equipped with other tooling molds.
4, CNC control, to ensure the molding angle of the workpiece, to ensure product quality and improve production efficiency.
6. When process angle size less than L100×L100×10, cold pressing can be used when the degree of bending is less than 5°.
7. Processing speed: cold pressing processing for 10s/time, heating processing for 120s/time (determined according to actual processing materials and materials), processing of workpiece when heating temperature is 800 degrees (ie red), (determined according to actual material and bending angle) .
Parameter:
| No. | Model | GHQ250～700 |
| 1 | Oil Tank Pressure (kN) | 1600 |
| 2 |
Processing Angle Range (mm) Heel up (outside double-sided bending) |
L80*7～L250*32 |
| 3 | Outward double-sided bending degree for angles (°) | 30° |
| 4 |
Processing Angle Range (mm) Compression (inner single side bending) |
L80*7～L200*18 |
| 5 | Inner single side bending degree for angles (°) | 20° |
| 6 |
Processing Angle Range (mm) Tension (outward single side bending) |
L80*7～L200*18 |
| 7 | Outward single side bending degree for angles (°) | 16° |
| 8 | Bending Plate thickness (mm) | 2～16 |
| 9 | Bending Plate width (mm) | 700 |
| 10 | Bending degree for plates (°) | 90° |
| 11 | Angle opening & closing range (mm) | L80*7～L200*16 |
| 12 | Angle opening & closing degree (°) | 16° |
| 13 | Oil Tank Stroke (mm) | 800 |
| 14 | Motor Power (kW) | 15 |
