Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Automation: | Automatic |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service,Field Installation,Free Spare Parts | Raw Material: | Metal Sheet,steel Sheet |
| Warranty: | 12 Months,1 Year | Color: | Customized |
| Application: | Construction Projects,Iron Plate | Workpiece Size: | 2000x2000mm |
| High Light: | 2800mm Drilling And Milling Machine,BT50 Drilling And Milling Machine,18 Ton Drilling And Milling Machine |
||

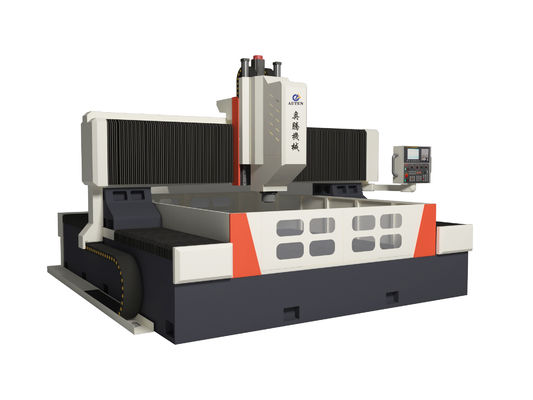

High Speed CNC Steel Tube Plate Flange Drilling Tapping And Milling Machine Model PHD2020
Application:
Used for drilling, chamfering, tapping and milling of plate/structure parts.
It is mainly used for high-efficiency drilling processing of flanges, discs, rings, plates and other workpieces whose thickness is within the effective range. Drilling through holes and blind holes can be realized on single material parts and composite materials. The machining process of the machine tool is digitally controlled, and the operation is very convenient. It can realize automation, high precision, multiple varieties and mass production.
Machine structure:
The machine bed is cast, mainly composed of worktable, movable gantry, movable sliding saddle, drilling and milling power head, automatic lubrication device, protective device, circulating cooling device, digital control system, electrical system, etc. Rolling hard rail pair support and guidance, precision lead screw pair drive, the machine tool has high positioning accuracy and repeat positioning accuracy.
1.Four-jaw self-centering workbench
The workbench is made of grey iron (HT250), which is finished by secondary tempering and vibration aging treatment, with good rigidity and no deformation. The work surface adopts casting structure. Four-claw self-centering design for flange and tube plate processing.
2.Movable gantry:
The movable gantry is made of gray cast iron (HT250). The front side of the gantry is equipped with two ultra-high bearing capacity rolling linear guide pairs, a set of precision ball screws and a servo motor, so that the power head slide is used as the Y axis. When moving in the same direction, the drilling power head is installed on the power head slide plate. The gantry movement is realized by the rotation of the ball screw driven by the servo motor through the precision coupling.
3,Movable saddle:
The sliding saddle is a precision cast iron structure. The sliding saddle is equipped with two ultra-high load-bearing CNC hard-track sliding tables, a set of precision ball screw pairs and a high-precision planetary reducer connected to the servo motor to drive the drilling power The head moves in the Z-axis direction, which can realize the fast forward, work forward, fast reverse, stop and other actions of the power head. It has the functions of automatic chip breaking, chip removal and pause.
Specifications:
| Workpiece size | LxW | 2000x2000 mm |
| Gantry height | 600 mm | |
| Drilling power head | Qty. | 1 |
| Spindle taper | BT50 | |
| Max.drilling diamter | Φ80 mm | |
| Max.thickness | ≤180 mm | |
| Tapping diameter | M3-M28 mm | |
| Spindle speed | 30~3000 r/min | |
| Servo spindle motor power | 22kW | |
| Distance from the lower end of the spindle to the worktable | 200-600mm | |
|
Lateral movement of power head (X axis) |
Max.horizontal stroke | 2000 mm |
| Lateral movement speed | 0~9 r/min | |
| Servo motor power for lateral movement | 1x2.4 kW | |
| Gantry longitudinal movement (Y axis) | Max. feed stroke | 2000 mm |
| Feed moving speed | 0~9 m/min | |
| Feed servo motor power | 2x2.4 kW | |
| Vertical ram feed motion (Z axis) | Max. stroke | 400 mm |
| Moving speed | 0~8 m/min | |
| Servo motor power | 1x2.4 kW | |
| Three-axis positioning accuracy | X/Y/Z/A/B/C | 0-0.02mm |
| Three-axis repeat positioning accuracy | X/Y/Z/A/B/C | 0-0.01mm |
| Machine weight | / | About 18T |
| Overall size | LxWxH | 4200x4500x2800 mm |
