High Speed CNC Plate Drilling And Milling Machine Spindle Speed 30~3000 R/Min

small.img.alt small.img.alt small.img.alt

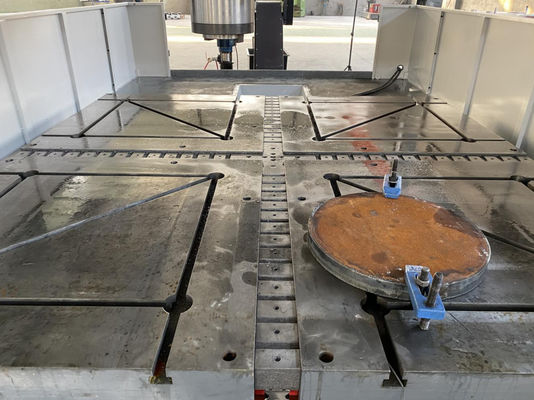

Large Image :  High Speed CNC Plate Drilling And Milling Machine Spindle Speed 30~3000 R/Min

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: PHD2020
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD50000~100000
Packaging Details: Container
Delivery Time: 40 days
Payment Terms: L/C, T/T
Detailed Product Description
Condition: New Automation: Automatic
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service,Field Installation,Free Spare Parts Raw Material: Metal Sheet,steel Sheet
Warranty: 12 Months,1 Year Color: Customized
Application: Construction Projects,Iron Plate Workpiece Size: 2000x2000mm
Spindle Speed: 30~3000 R/min
High Light:

CNC Plate Drilling and Milling Machine


3000 r/min Drilling and Milling Machine


22kW Drilling and Milling Machine

High Speed CNC Plate Drilling and Milling Machine Spindle Speed 30~3000 r/min


Used for drilling, chamfering, tapping and milling of plate/structure parts.

It is mainly used for high-efficiency drilling processing of flanges, discs, rings, plates and other workpieces whose thickness is within the effective range. Drilling through holes and blind holes can be realized on single material parts and composite materials. The machining process of the machine tool is digitally controlled, and the operation is very convenient. It can realize automation, high precision, multiple varieties and mass production.


Machine structure:

The machine bed is cast, mainly composed of worktable, movable gantry, movable sliding saddle, drilling and milling power head, automatic lubrication device, protective device, circulating cooling device, digital control system, electrical system, etc. Rolling hard rail pair support and guidance, precision lead screw pair drive, the machine tool has high positioning accuracy and repeat positioning accuracy.


1,Drilling power head:

The drilling power head adopts a dedicated servo spindle motor, and the geared synchronous belt decelerates to increase the torque to drive the precision spindle. The spindle adopts the first three rear two five-row Japanese angular contact bearings to achieve stepless speed change. The spindle is equipped with a pneumatic tool change system to enable tool replacement Fast and convenient, the feed is driven by a servo motor and a ball screw. The X and Y axes can be linked, using semi-closed loop control, which can realize linear and circular interpolation functions. The spindle end is a BT50 taper hole, equipped with Italian Rotofors high-speed rotary joint, and can use high-speed U-drilling center to discharge water.


2,Automatic lubrication device and protective device:

Equipped with Taiwan's original volumetric partial pressure automatic lubrication device, it can automatically lubricate various motion pairs such as guide rails, screws, racks, etc., without dead angles, and ensure the service life of the machine tool. The X-axis and Y-axis of the machine tool are equipped with dust-proof protective covers, and splash-proof baffles are installed around the workbench.




Workpiece size LxW 2000x2000 mm
Gantry height 600 mm
Drilling power head Qty. 1
Spindle taper BT50
Max.drilling diamter Φ80 mm
Max.thickness ≤180 mm
Tapping diameter M3-M28 mm
Spindle speed 30~3000 r/min
Servo spindle motor power 22kW
Distance from the lower end of the spindle to the worktable 200-600mm

Lateral movement of power head

(X axis)

Max.horizontal stroke 2000 mm
Lateral movement speed 0~9 r/min
Servo motor power for lateral movement 1x2.4 kW
Gantry longitudinal movement (Y axis) Max. feed stroke 2000 mm
Feed moving speed 0~9 m/min
Feed servo motor power 2x2.4 kW
Vertical ram feed motion (Z axis) Max. stroke 400 mm
Moving speed 0~8 m/min
Servo motor power 1x2.4 kW
Three-axis positioning accuracy X/Y/Z/A/B/C 0-0.02mm
Three-axis repeat positioning accuracy X/Y/Z/A/B/C 0-0.01mm
Machine weight / About 18T
Overall size LxWxH 4200x4500x2800 mm
