Product Details:
Payment & Shipping Terms:
|
| Workpiece Size: | 600 X 600 Mm | Spindle Taper: | BT40 |
|---|---|---|---|
| Max.drilling Diamter: | 35mm | Tapping Diameter: | M3-M15 |
| Condition: | New | Color: | Customized,depend On Your Need |
| High Light: | CNC Plate Drilling Machine 3000 R/Min,CNC Plate Drilling Machine High Speed,35mm Dia CNC Plate Drilling Machine |
||
High Speed CNC Flange Plate Drilling and Milling Machine Spindle speed 30~3000 r/min
Application:

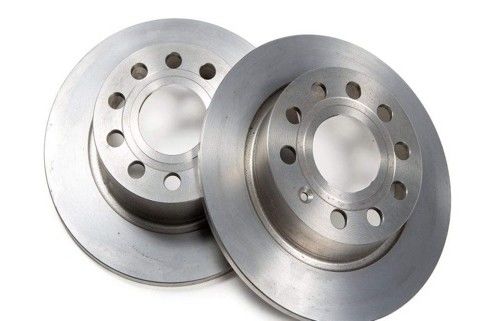

The CNC gantry drilling and milling machine is mainly used for the drilling, chamfering, tapping, and milling of plate/structural parts with the thickness of flanges, discs, rings, plates and other workpieces within the effective range. Drilling through holes and blind holes can be realized on single material parts and composite materials. The processing process is digitally controlled and the operation is very convenient. It can realize automation, high precision, multiple varieties and mass production.
Equipment structure:
The equipment is integrally cast, mainly composed of worktable, fixed beam gantry, movable sliding saddle, drilling and milling power head, automatic lubrication device, protective device, circulating cooling device, digital control system, electrical system, etc. Rolling hard rail pair support and guidance, precision lead screw pair drive, the machine tool has high positioning accuracy and repeat positioning accuracy.
The workbench is made of gray iron (HT250), which is finished by secondary tempering and vibration aging treatment, with good rigidity and no deformation.
2. Fixed beam type gantry:
The gantry is made of gray iron (HT250). The front side of the gantry is equipped with two ultra-high bearing capacity rolling linear guide pairs, a set of precision ball screws and a servo motor to make the power head slide plate move in the Y axis direction , Drilling power head is installed on the power head slide plate. The gantry movement is realized by the rotation of the ball screw driven by the servo motor through the precision coupling.
Specifications:
| Workpiece size | LxW | 600 x 600 mm |
| Gantry height | 400 mm | |
| Drilling power head | Qty. | 1 |
| Spindle taper | BT40 | |
| Max.drilling diamter | Φ35 mm | |
| Max.thickness | 40 mm | |
| Tapping diameter | M3-M15 | |
| Spindle speed | 30~3000 r/min | |
| Servo spindle motor power | 7.5kW | |
| Distance from the lower end of the spindle to the worktable | 200-540mm | |
|
Lateral movement of power head (X axis) |
Max.horizontal stroke | 600 mm |
| Lateral movement speed | 0~9 r/min | |
| Servo motor power for lateral movement | 10N/M | |
| Gantry longitudinal movement (Y axis) | Max. feed stroke | 600 mm |
| Feed moving speed | 0~9 m/min | |
| Feed servo motor power | 10N/M | |
| Vertical ram feed motion (Z axis) | Max. stroke | 400 mm |
| Moving speed | 0~8 m/min | |
| Servo motor power | 1x2.4kW (Brake) | |
| Three-axis positioning accuracy | X/Y/Z/A/B/C | 0-0.02mm |
| Three-axis repeat positioning accuracy | X/Y/Z/A/B/C | 0-0.01mm |
| Machine weight | / | About 3.5T |
| Overall size | LxWxH | 2200x1600x2200 mm |
