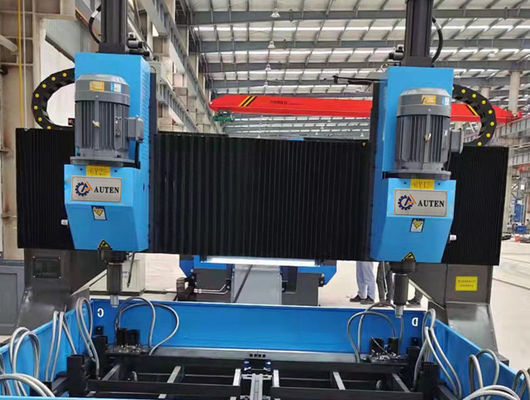

CNC Metal Flange Plate Drilling Machine with Two Drilling Heads PZ2020/2
Applicable Industry:
It is used for drilling holes in steel plates. The workpiece to be processed can be steel structure buildings, bridges, connecting plates on iron towers, or large flanges, heat exchanger tube plates, etc. The CNC drilling machine can make the whole process of drilling work to achieve a complete automation degree with high precision and high efficiency. It is suitable for drilling and processing of connecting plates, anchor plates, end plates, templates, flanges, structural parts and other parts of steel structures, bridges, power communication towers, thermal power station boiler brackets and other industries.
Features:
1. The maximum drilling diameter of this machine is up to 50mm, and the holes on the connecting plate and the foundation plate can be drilled.
2. The maximum workpiece thickness is 100mm, and thinner plates can also be stacked and drilled. The workpiece is clamped by hydraulic clamps, which saves labor for operators and saves time when loading and unloading workpieces.
3. The largest workpiece can reach 3000×2000mm. If it is a small piece, it can be installed on the four corners of the worktable (Note: The tightening method is divided into hydraulic automatic tightening).
4. The screw, guide rail, hydraulic parts, electrical components, numerical control system, etc. configured by this machine are mostly foreign famous brand products. The reliability of the machine is comparable to that of imported equipment, and there are few failures.
5. The downward drilling stroke of the main shaft of this machine is up to 180mm, so the length of the drill bit is not limited. When the drill bit moves downward and does not touch the workpiece, it is a fast movement. Once it touches the workpiece, it will automatically change to the working speed, and after drilling through, it will automatically return quickly, so it saves time.
6. The equipment is equipped with an automatic lubrication system, which can effectively improve the service life of the equipment.
Specifications:
| Item | Parameter | |
| Workpiece size | Width x length | 2000x2000mm |
| Thickness | Max.100 | |
| Diameter | 2000mm | |
| Spindle | Quick-change connector | Morse 4# |
| Drill diameter | Max.Φ50mm | |
| Speed-varying method | Inverter stepless speed regulation | |
| Rotate speed | 20－560r/min | |
| Stoke (Z axis) | 180mm | |
| Feeding | Hydraulic cylinder drive | |
| Workpiece Clamp | Clamp thickness | 15－100mm |
| Number of clamping cylinders | 12 | |
| Clamp force | 7.5kN | |
| Clamp open | Foot switch | |
| Cooling liquid | Method | Forced loop |
| Capacity | 300L | |
| Hydraulic | Clamp force | 6MPa(60kgf/cm2) |
| Fuel tank capacity | 90L | |
| Motor | Main spindle | 5.5kW |
| Hydraulic pump | 2.2kW | |
| Cooling pump | 0.45kW | |
| X-axis servo system | 2kW | |
| Y-axis servo system | 2x1kW | |
| Machine size | LxWxH | 6490×3880×2750mm |
| CNC axis quantity | 3 | |
| Positioning speed | 10000mm/min | |
| Machine size | LxWxH | 6490×3880×2750mm |
