Product Details:
|
| Metal Plate Size: | 2500x2500mm | Metal Plate Thickness: | 200mm |
|---|---|---|---|
| Spindle Taper: | BT50 | Max.tapping Diameter: | M30 Mm |
| Spindle Speed: | 30~3000 R/min | Max.drilling Diamter: | 100mm |
| High Light: | 100mm CNC Flange Plate Drilling Machine,100mm Drilling And Tapping Machine,CNC Drilling And Tapping Machine |
||

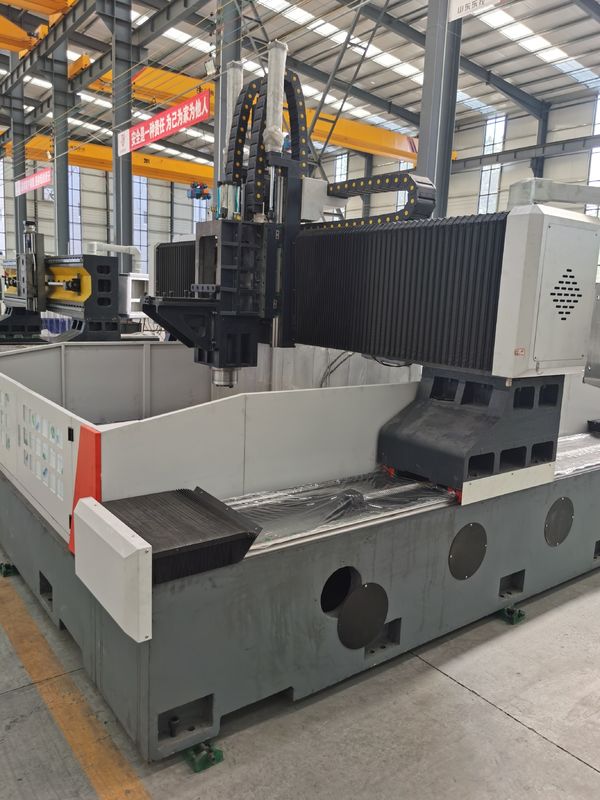

CNC Flange Plate Drilling Machine With Drilling And Tapping Machine 100mm hole diameter
Application:
It is mainly used for efficient drilling of workpieces whose thickness is within the effective range, such as flanges, discs, rings, and plates. Through holes and blind holes can be drilled on elemental material parts and composite materials. The machining process of the machine tool is digitally controlled, and the operation is very convenient. It can realize automation, high precision, multi-variety and mass production.
Machine structure:
The machine bed is cast, mainly composed of worktable, movable gantry, movable sliding saddle, drilling and milling power head, automatic lubrication device, protective device, circulating cooling device, digital control system, electrical system, etc. Rolling hard rail pair support and guidance, precision lead screw pair drive, the machine tool has high positioning accuracy and repeat positioning accuracy.
1.Four-jaw self-centering workbench
The workbench is made of grey iron (HT250), which is finished by secondary tempering and vibration aging treatment, with good rigidity and no deformation. The work surface adopts casting structure. Four-claw self-centering design for flange and tube plate processing.
2.Automatic lubrication device and protective device:
Equipped with Taiwan's original volumetric partial pressure automatic lubrication device, it can automatically lubricate various motion pairs such as guide rails, screws, racks, etc., without dead angles, and ensure the service life of the machine tool. The X-axis and Y-axis of the machine tool are equipped with dust-proof protective covers, and splash-proof baffles are installed around the workbench.
Specifications:
| Workpiece size | LxW | 2500x2500 mm |
| Workbench | T-slot width | 28mm |
| Drilling power head | Qty. | 1 |
| Spindle taper | BT50 | |
| Max.drilling diamter |
Φ100 mm (Carbide core bit) |
|
| Φ80 mm (U drill) | ||
| Max.thickness | ≤200 mm | |
| Max.tapping diameter | M30 mm | |
| Spindle speed | 30~3000 r/min | |
| Servo spindle motor power | 30kW | |
| Distance from the lower end of the spindle to the worktable | 200-600mm | |
|
Lateral movement of power head (X axis) |
Max.horizontal stroke | 2500 mm |
| Lateral movement speed | 0~8 m/min | |
| Servo motor power for lateral movement/torque | 4.5kW/25Nm | |
| Gantry longitudinal movement (Y axis) | Max. feed stroke | 2500 mm |
| Feed moving speed | 0~8 m/min | |
| Feed servo motor power/torque | 2x4.5 kW/25Nm | |
| Vertical ram feed motion (Z axis) | Max. stroke | 600 mm |
| Moving speed | 0~5 m/min | |
| Servo motor power/torque | 4.5kW/25Nm | |
| Three-axis positioning accuracy | X/Y | ≤0.05mm/1000mm |
| Three-axis repeat positioning accuracy | X/Y | ≤0.03mm/1000mm |
