Servo Motor High Speed CNC Drilling Machine For Metal Flange Plate

Servo Motor High Speed CNC Drilling Machine For Metal Flange Plate
Servo Motor High Speed CNC Drilling Machine For Metal Flange Plate Servo Motor High Speed CNC Drilling Machine For Metal Flange Plate Servo Motor High Speed CNC Drilling Machine For Metal Flange Plate Servo Motor High Speed CNC Drilling Machine For Metal Flange Plate Servo Motor High Speed CNC Drilling Machine For Metal Flange Plate

Large Image :  Servo Motor High Speed CNC Drilling Machine For Metal Flange Plate

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: PHD6060
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Container
Delivery Time: 35 days
Payment Terms: L/C, T/T
Supply Ability: 500 sets/ year
Detailed Product Description
Workpiece Size: 600x600mm Spindle Taper: BT40
Max.drilling Diamter: Φ35 Mm Max.thickness: 40
Spindle Speed: 30~3000 R/min Servo Spindle Motor Power: 7.5kW
High Light:

Servo Motor High Speed CNC Drilling Machine

,

CNC Drilling Machine For Flange Plate

,

Servo Motor cnc mill drill

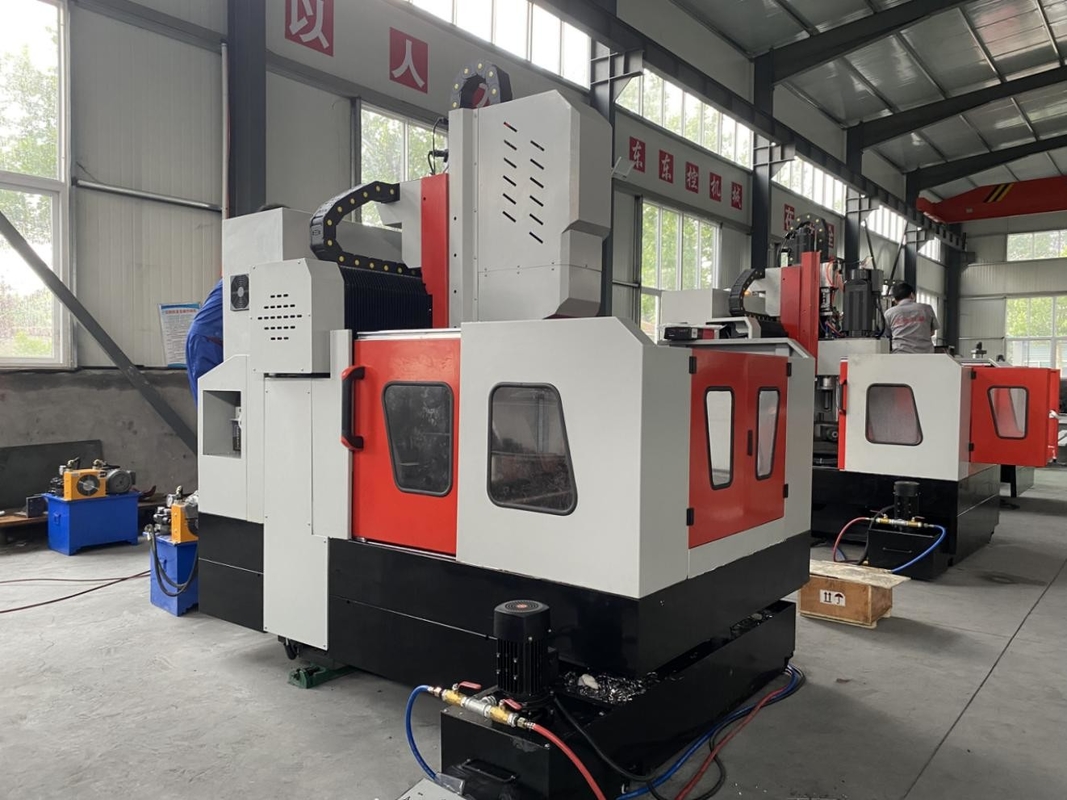

High Speed CNC Milling and Drilling Machine for Metal Flange Plate Model PHD6060

Servo Motor High Speed CNC Drilling Machine For Metal Flange Plate 0

Application:

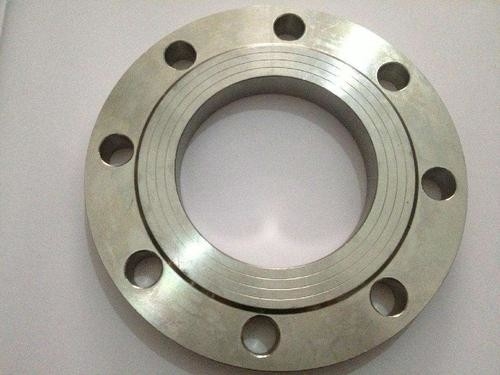

The CNC gantry drilling and milling machine is mainly used for the drilling, chamfering, tapping, and milling of plate/structural parts with the thickness of flanges, discs, rings, plates and other workpieces within the effective range. Drilling through holes and blind holes can be realized on single material parts and composite materials. The processing process is digitally controlled and the operation is very convenient. It can realize automation, high precision, multiple varieties and mass production.

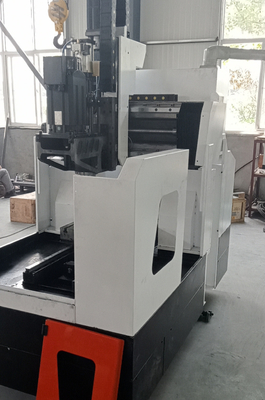

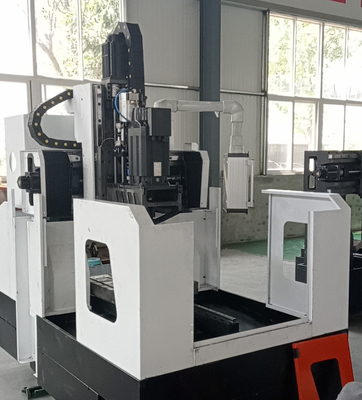

1. Equipment structure:

The equipment is integrally cast, mainly composed of worktable, fixed beam gantry, movable sliding saddle, drilling and milling power head, automatic lubrication device, protective device, circulating cooling device, digital control system, electrical system, etc. Rolling hard rail pair support and guidance, precision lead screw pair drive, the machine tool has high positioning accuracy and repeat positioning accuracy.

2. Fixed beam type gantry:

The gantry is made of gray iron (HT250). The front side of the gantry is equipped with two ultra-high bearing capacity rolling linear guide pairs, a set of precision ball screws and a servo motor to make the power head slide plate move in the Y axis direction , Drilling power head is installed on the power head slide plate. The gantry movement is realized by the rotation of the ball screw driven by the servo motor through the precision coupling.

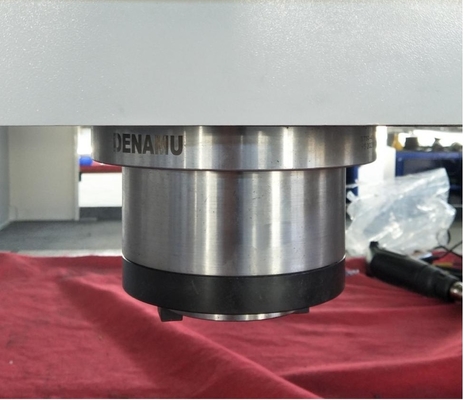

4. Drilling power head:

The drilling power head adopts a dedicated servo spindle motor, and the geared synchronous belt decelerates to increase the torque to drive the precision spindle. The spindle adopts the first three rear two five-row Japanese angular contact bearings to achieve stepless speed change. The spindle is equipped with a pneumatic tool change system to enable tool replacement Fast and convenient, the feed is driven by a servo motor and a ball screw. The X and Y axes can be linked, using semi-closed loop control, which can realize linear and circular interpolation functions. The spindle end is a BT40 taper hole, equipped with Italian Rotofors high-speed rotary joint, and can use high-speed U-drilling center to discharge water.

Specifications:

Workpiece size LxW 600 x 600 mm
Gantry height 400 mm
Drilling power head Qty. 1
Spindle taper BT40
Max.drilling diamter Φ35 mm
Max.thickness 40 mm
Tapping diameter M3-M15
Spindle speed 30~3000 r/min
Servo spindle motor power 7.5kW
Distance from the lower end of the spindle to the worktable 200-540mm

Lateral movement of power head

(X axis)

Max.horizontal stroke 600 mm
Lateral movement speed 0~9 r/min
Servo motor power for lateral movement 10N/M
Gantry longitudinal movement (Y axis) Max. feed stroke 600 mm
Feed moving speed 0~9 m/min
Feed servo motor power 10N/M
Vertical ram feed motion (Z axis) Max. stroke 400 mm
Moving speed 0~8 m/min
Servo motor power 1x2.4kW (Brake)
Three-axis positioning accuracy X/Y/Z/A/B/C 0-0.02mm
Three-axis repeat positioning accuracy X/Y/Z/A/B/C 0-0.01mm
Machine weight / About 3.5T
Overall size LxWxH 2200x1600x2200 mm

Servo Motor High Speed CNC Drilling Machine For Metal Flange Plate 1
