600x600mm CNC Milling And Drilling Machine Special For Processing Metal Flange Plate

600x600mm CNC Milling And Drilling Machine Special For Processing Metal Flange Plate
600x600mm CNC Milling And Drilling Machine Special For Processing Metal Flange Plate 600x600mm CNC Milling And Drilling Machine Special For Processing Metal Flange Plate 600x600mm CNC Milling And Drilling Machine Special For Processing Metal Flange Plate 600x600mm CNC Milling And Drilling Machine Special For Processing Metal Flange Plate 600x600mm CNC Milling And Drilling Machine Special For Processing Metal Flange Plate

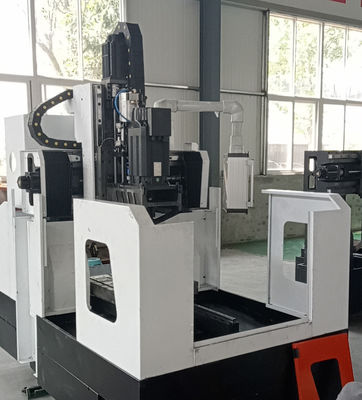

Large Image :  600x600mm CNC Milling And Drilling Machine Special For Processing Metal Flange Plate

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: PHD6060
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Container
Delivery Time: 35 days
Payment Terms: L/C, T/T
Supply Ability: 500 sets/ year
Detailed Product Description
Workpiece Size: 600x600mm Spindle Taper: BT40
Max.drilling Diamter: Φ35 Mm Max.thickness: 40
Spindle Speed: 30~3000 R/min Servo Spindle Motor Power: 7.5kW
High Light:

600x600mm CNC Milling And Drilling Machine

,

Flange Plate CNC Milling And Drilling Machine

,

40mm plate CNC Milling And Drilling Machine

CNC Milling and Drilling Machine Special for Processing Metal Flange Plate

600x600mm CNC Milling And Drilling Machine Special For Processing Metal Flange Plate 0

Application:

The CNC gantry drilling and milling machine is mainly used for the drilling, chamfering, tapping, and milling of plate/structural parts with the thickness of flanges, discs, rings, plates and other workpieces within the effective range. Drilling through holes and blind holes can be realized on single material parts and composite materials. The processing process is digitally controlled and the operation is very convenient. It can realize automation, high precision, multiple varieties and mass production.



1. Equipment structure:

The equipment is integrally cast, mainly composed of worktable, fixed beam gantry, movable sliding saddle, drilling and milling power head, automatic lubrication device, protective device, circulating cooling device, digital control system, electrical system, etc. Rolling hard rail pair support and guidance, precision lead screw pair drive, the machine tool has high positioning accuracy and repeat positioning accuracy.

2. Fixed beam type gantry:

The gantry is made of gray iron (HT250). The front side of the gantry is equipped with two ultra-high bearing capacity rolling linear guide pairs, a set of precision ball screws and a servo motor to make the power head slide plate move in the Y axis direction , Drilling power head is installed on the power head slide plate. The gantry movement is realized by the rotation of the ball screw driven by the servo motor through the precision coupling.

3.Automatic lubrication device and protection device

This machine tool is equipped with Taiwan's original volumetric partial pressure automatic lubrication device, which can automatically lubricate various motion pairs such as guide rails, lead screws, racks, etc., without dead ends, and ensure the service life of the machine tool. The X-axis and Y-axis of the machine tool are equipped with dust-proof shields, and splash-proof baffles are installed around the workbench.

4.Laser interferometer:

The laser interferometer is used to calibrate, and accurately check and compensate the pitch error, backlash, positioning accuracy, repeat positioning accuracy, etc., to ensure the dynamic, static stability and processing accuracy of the machine. Ballbar inspection Each machine uses a British RENISHAW company ballbar to calibrate the true circle accuracy and machine geometric accuracy, and perform circular cutting experiments at the same time to ensure the machine's 3D machining accuracy and circle accuracy.

Specifications:

Workpiece size LxW 600 x 600 mm
Gantry height 400 mm
Drilling power head Qty. 1
Spindle taper BT40
Max.drilling diamter Φ35 mm
Max.thickness 40 mm
Tapping diameter M3-M15
Spindle speed 30~3000 r/min
Servo spindle motor power 7.5kW
Distance from the lower end of the spindle to the worktable 200-540mm

Lateral movement of power head

(X axis)

Max.horizontal stroke 600 mm
Lateral movement speed 0~9 r/min
Servo motor power for lateral movement 10N/M
Gantry longitudinal movement (Y axis) Max. feed stroke 600 mm
Feed moving speed 0~9 m/min
Feed servo motor power 10N/M
Vertical ram feed motion (Z axis) Max. stroke 400 mm
Moving speed 0~8 m/min
Servo motor power 1x2.4kW (Brake)
Three-axis positioning accuracy X/Y/Z/A/B/C 0-0.02mm
Three-axis repeat positioning accuracy X/Y/Z/A/B/C 0-0.01mm
Machine weight / About 3.5T
Overall size LxWxH 2200x1600x2200 mm

600x600mm CNC Milling And Drilling Machine Special For Processing Metal Flange Plate 1
