High-Efficiency and Automated CNC Angle Line Machine for Large-Size Angle Steel Drilling and Stamping

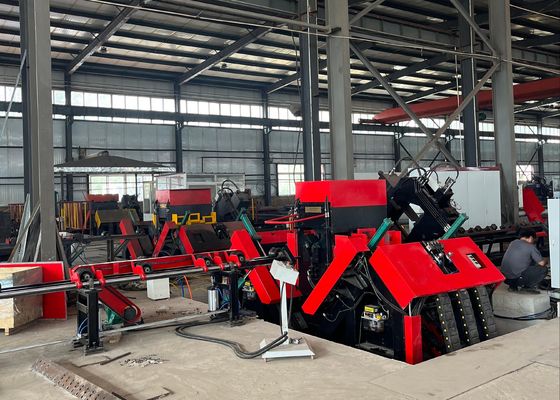

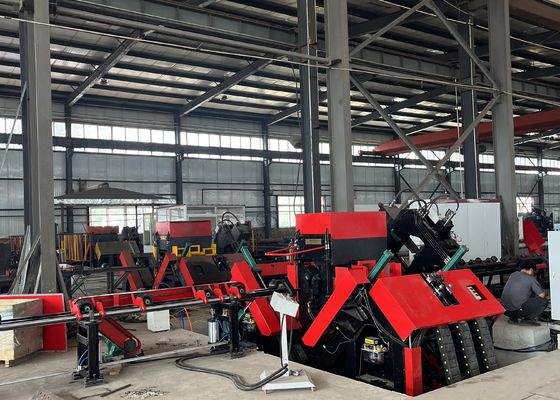

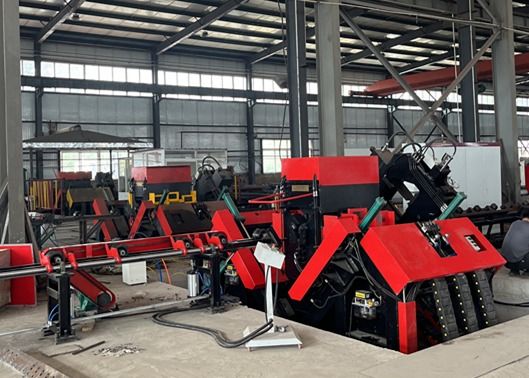

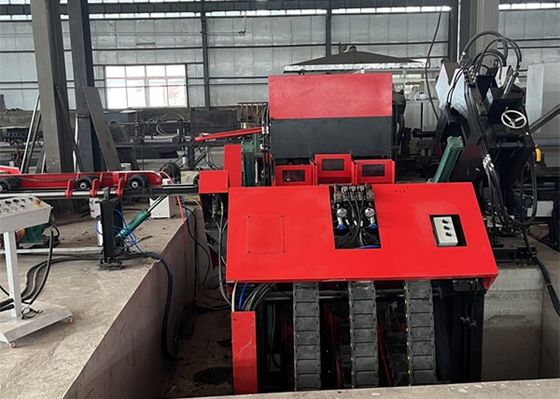

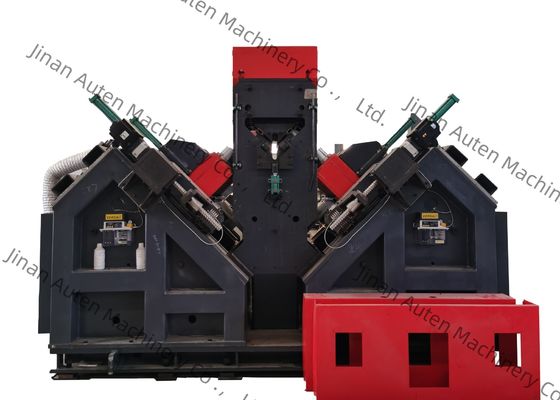

Large Image : High-Efficiency and Automated CNC Angle Line Machine for Large-Size Angle Steel Drilling and Stamping

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001
Model Number:	ADM2532

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Motor Power:	4kw	Processing Speed:	20-25m/min
Drilling Hole Diameter:	Ф13.5~Ф40mm	Condition:	New
Hole Diameter:	26mm	Feature:	High Reliability
Feeding Speed:	100~500 Mm/min	Processing Angle Length:	Min. 300mm
Application:	Steel Structure Tower Foot Welding	Angle Processing Size:	L63x6~L250x32 Mm
Type:	CNC Angle Line	Overall Dimensions:	12000mm X 5000mm X 2000mm
Control System:	Siemens/Fanuc	Processing Angle Size:	40х40х3~125х125х10mm
Marking Force:	700kN

Product Usage:

This equipment is primarily applied to drilling and stamping of large-size, high-strength angle steel for transmission line towers. All holes on angle steel can be processed on this production line, featuring high hole quality, positional accuracy, as well as remarkable production efficiency and automation level.

Product Features:

High Automation Level :The production line is integrated with an automatic loading system (comprising a transverse feeding channel and a rotating loading frame), an automatic unloading mechanism, and an automated feeding device. This enables the complete processing of all holes and steel mark engravings on angle steel in a single pass through the production line, eliminating the need for manual intervention. As a result, it significantly reduces the labor intensity of operators.

(1) The frame and base plate are fabricated from high-grade structural steel (Q345) through welding processes. The entire machine complies with industry standards, including General Technical Conditions for CNC System of Machine Tools, Technical Conditions for Welded Parts of Forging and Pressing Machinery, Technical Conditions for Metal Cutting Machine Tools, and General Principles for Precision Inspection of Forging and Pressing Machinery.

(2) The welding quality of each component on the equipment adheres strictly to the requirements specified in JB/T8609. The length and spacing of intermittent welds are precisely controlled to ensure uniformity.

(3) Forged components undergo stringent quality control to ensure they are free from defects such as laminations, folds, cracks, sand holes, and voids.

(4) All welded metal components, as well as cast and forged parts (including the machine body, worktable, base, and cylinder block), are subjected to tempering treatment to effectively relieve internal stress.

(5) Critical forgings, welds, and castings are inspected using non-destructive testing methods to detect any internal defects or cracks. These components fully meet the relevant industry standards.

High-Efficiency and Automated CNC Angle Line Machine for Large-Size Angle Steel Drilling and Stamping 0

Main parameters:

Model	ADM2532
Angle size(mm)	14014010~25025032
Max. length of raw material (m)	14
Marking force(kN)	1000
No. of character group	1
No. of character	18
Character size (mm)	141019
Range of accurate distance(mm)	50~220(Stepless)
No. of drill on each side	3(2 groups, 6 in total)
No. of blade on each side	3
Taper of drilling spindle	BT40
Max. drilling diameter (mm)	Φ40
Max. Spindle rotation speed(r/min)	6000
Drill cooling unit	MQL 360-2(Dry cooling)
Cooling unit oil storage capacity	2L
Cutting oil	Vegetable oil-based micro cutting oils(2000-25)
fuel consumption	5~50ml/h
CNC trolley drive type	AC servo motor,rack and pinion driving
Max. feeding speed of angle(m/min)	40
AB-axis alignment movement drive method	Linear Motion Guide;AC servo motor;Ball screw Secondary driving
Max. skateboard travel speed of drilling head(m/min)	10
Drilling head drive type	Linear Motion Guide;AC servo motor;Ball screw Secondary driving
Max. feeding speed of drilling head(m/min)	14
Feeder trolley arm working method	Vertical lifting type
Number of tipping cylinders on discharge side	4
Hydraulic station cooling method	Air cooling
No. of CNC axes	9
Air pressure(MPa)	1
Total power	About 150KW
Machine weight (kg)	About 33 tons
Overall dimensions(m)	338.52.5
