High Speed CNC Angle Drilling and Marking Machine Line for Telecommunication Tower

Certification
China Jinan Auten Machinery Co., Ltd. certification
China Jinan Auten Machinery Co., Ltd. certification
The cooperation is very enjoyable. Jinan Auten has an excellent professional team, the equipment works well and stable, the timely and enthusiastic after-sales service has impressed us. We hope that we can have more in-depth cooperation in the future!

—— PT. Bukaka

The CNC processing machine is easy for maintenance, high performance, moreover, the price is affordable.

—— Bob

Nice cooperation, we appreciate their patience, and hard working.

—— Mary

I'm Online Chat Now

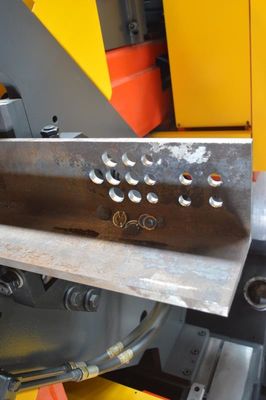

High Speed CNC Angle Drilling and Marking Machine Line for Telecommunication Tower

High Speed CNC Angle Drilling and Marking Machine Line for Telecommunication Tower
High Speed CNC Angle Drilling and Marking Machine Line for Telecommunication Tower

Large Image :  High Speed CNC Angle Drilling and Marking Machine Line for Telecommunication Tower

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: JNC2532G
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden case
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Cnc Or Not: CNC Warranty: 1 Year
Voltage: Customized Function: Angle Drilling And Marking
Angle Size: 100×100×10~300×300×40
High Light:

angle bar cutting machine

,

cnc angle punching machine

High Speed CNC Angle Drilling and Marking Machine Line for Angle Steel Tower



Applicable Industry:The machine is the special equipment used for angle steel drilling & marking mainly in the field of angle steel tower industry.



Product Composition:

The production line is composed of infeed transfer table unit, rotating loading unit, feeding conveyor unit, marking unit, two drilling units, outfeed conveyor unit, hydraulic system and electrical control system etc.

Product feature:

  • Adopt CNC technology, servo motor infeeding, with high efficiency, stable working precision.
  • Key hydraulic, pneumatic and electric elements are all domestic and international brand.
  • Easy programming and can directly use the program data made by lofting software.
  • Software with Chinese, English interface, easy operation, and can display the drawing of workpiece.
  • Loading, marking, drilling and unloading are all performed automatically.
  • Just need to input size of work piece, diameter of holes, stadia and quantity of workpiece when edit program, or use CAD/CAM lofting software direct conversion.
  • The machining line is installed with supporting and straight pressing device.
  • With avoided shearing functions, so as to process fixed length angles.
  • With self-diagnosis failures function.
  • Shearing unit is optional, using double blades cutting.

Specifications:

Model JNC2532G3
Angle size(mm) 125×125×10~250×250×35
Max. length of raw material (m) 14
Max. length of finished angle (m) 14
Marking force(kN) 1200
Marking unit type Close type
No. of character group 1
No. of character 18
Character size (mm) 14×10×19 or 20×12×19
Range of stadia (back mark)(mm) 50~220 stepless
No. of drill on each side 3
Max. drilling diameter (mm) 40
Taper of drilling spindle BT40
Stroke of Spindle(mm) 140
Max. Spindle rotation speed(r/min) 6000
Max. feeding speed of drilling head(m/min) 14
Programming mode Input by keyboard, RS232 interface, floppy disk and USB interface
No. of CNC axes 9
Overall dimensions(m) 34.5×7.5×2.5
Machine weight (kg) ≈30000



  Main Components:

No. Name Brand
1 Servo Motor France Schneider
2 Servo Driver France Schneider
3 PLC France Schneider
4 Precision Spindle BT40 Taiwan KENTURN
5 Spindle motor France Schneider
6 Computer China Lenovo
7 Buttons France Schneider
8 Disconnector France Schneider
9 Transducer France Schneide
10 Contactor switch France Schneide
11 Main hydraulic valve Italy Atos
12 Proximity Switch France Schneide
