1700KN Machine Punching Force Vehicle Longitudinal Beam Flat Plate CNC Punching Production Line 25 molds

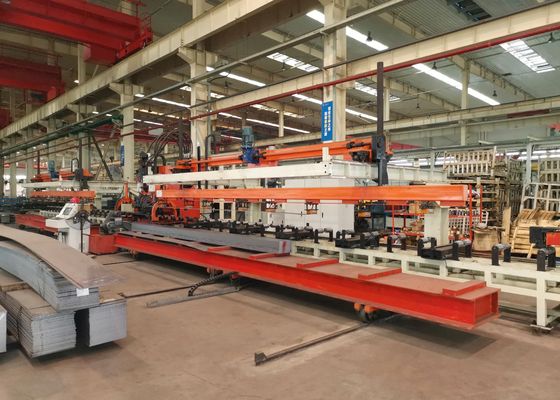

Large Image : 1700KN Machine Punching Force Vehicle Longitudinal Beam Flat Plate CNC Punching Production Line 25 molds

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001
Model Number:	FPCP120

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	By container
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Machine Function:

Punching

Control System:

Power Source:

Hydraulic

Warranty:

1 Year

Highlight:

CNC Plate Punching Production Line

Flat Plate Punching Production Line

Product purpose and characteristics:

The production tine for automotive longitudinal beam is an efficient and high precision automated sheet

metal processing equipment specially designed by our company for punching high-strength longitudinal

beams for automobiles Suitable for punching the longitudinal beams of ultra wide and ultra thick vehicles

such as mining trucks and special vehicles.

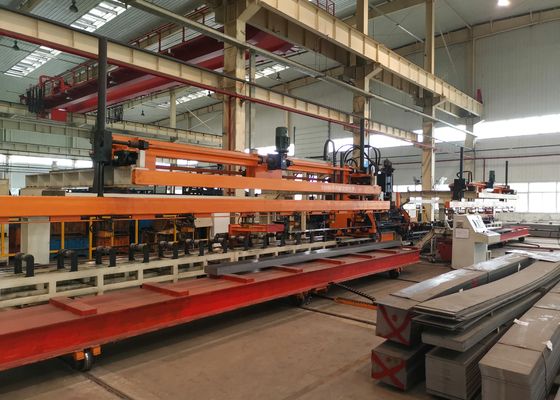

1700KN Machine Punching Force Vehicle Longitudinal Beam Flat Plate CNC Punching Production Line 25 molds 0

Basic parameters of abdominal flushing:

Main machine body type	Semi closed form
Sheet thickness	4-14 mm
Length	4000-15000 mm
Width	Flat panel 200-750 mm U-beam 200-500 mm
Maximum tensile strength	8b=510-950 N/mm2
Main machine punching force	1700KN,2000 KN (optional)
Number of molds	20,25
Max. punching diameter	60mm (Customizable)
Equipment footprint size	38000 x 7500 x 4500 mm

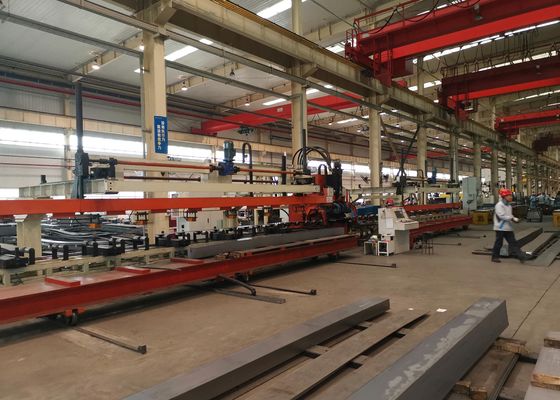

1700KN Machine Punching Force Vehicle Longitudinal Beam Flat Plate CNC Punching Production Line 25 molds 1
