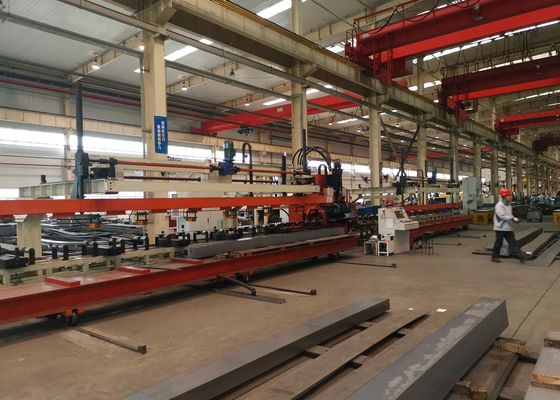

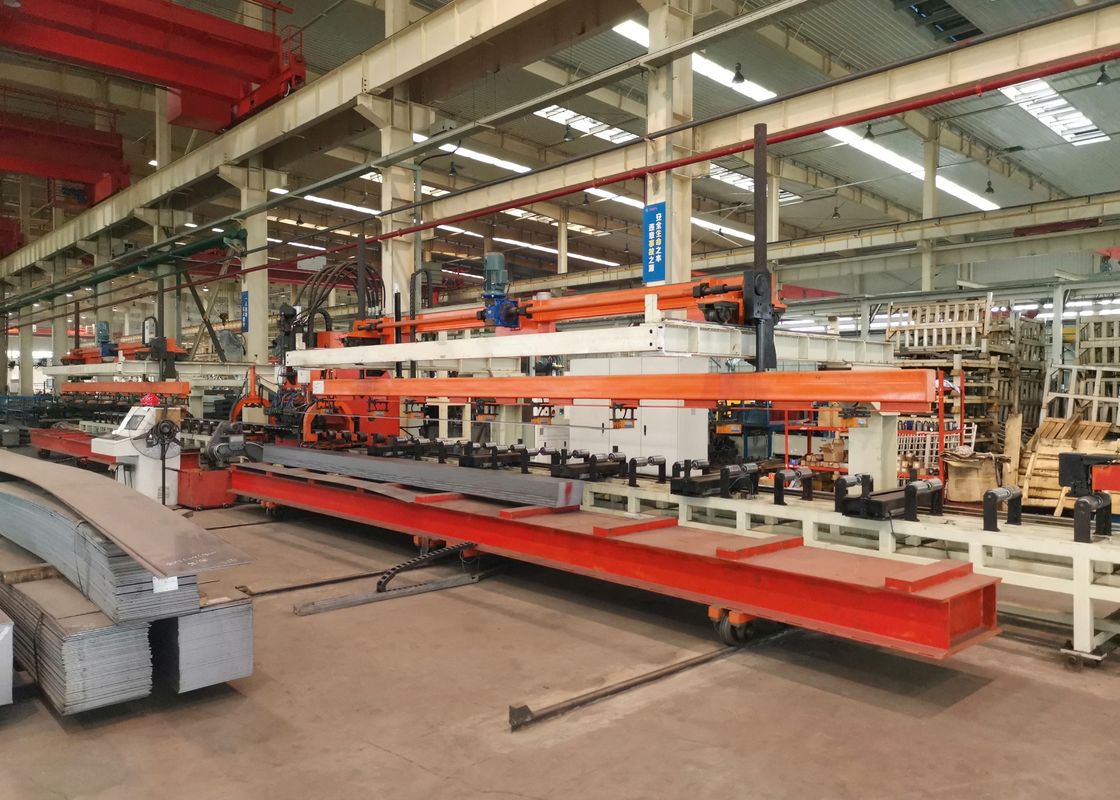

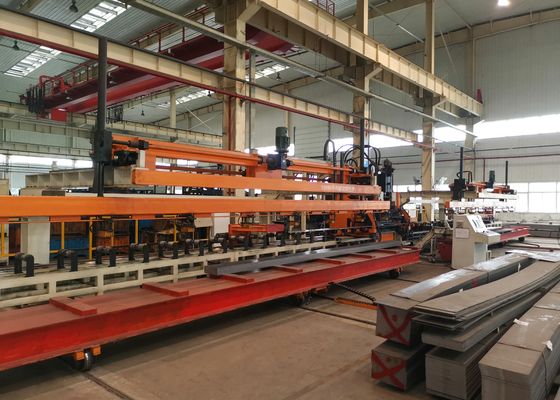

Heavy-Duty Vehical Longitudinal Beam Flat Plate CNC Punching Production Line

Large Image : Heavy-Duty Vehical Longitudinal Beam Flat Plate CNC Punching Production Line

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001
Model Number:	FPCP120

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Machine Function:	Punching	Control System:	CNC
Power Source:	Hydraulic	Warranty:	1 Year

Product purpose and characteristics:

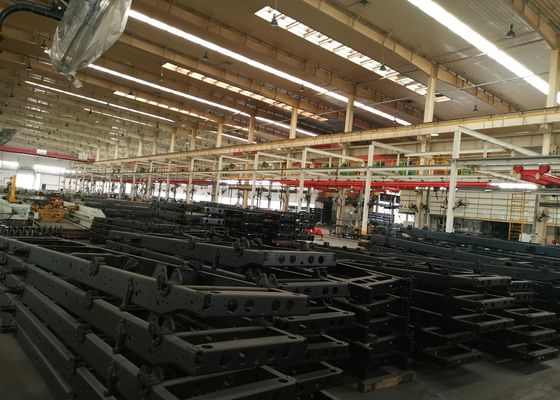

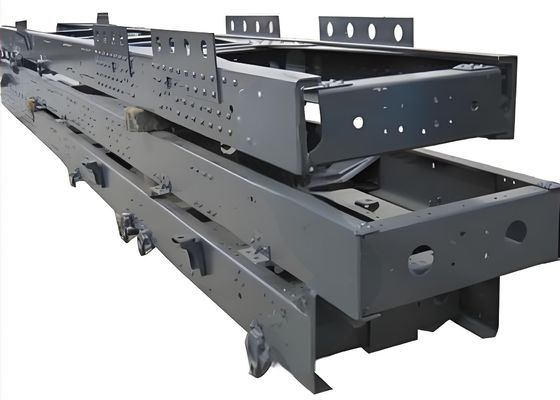

The production tine for automotive longitudinal beam is an efficient and high precision automated sheet

metal processing equipment specially designed by our company for punching high-strength longitudinal

beams for automobiles Suitable for punching the longitudinal beams of ultra wide and ultra thick vehicles

such as mining trucks and special vehicles.

Basic parameters of abdominal flushing:

Main machine body type	Semi closed form
Sheet thickness	4-14 mm
Length	4000-15000 mm
Width	Flat panel 200-750 mm U-beam 200-500 mm
Maximum tensile strength	8b=510-950 N/mm2
Main machine punching force	1700KN,2000 KN (optional)
Number of molds	20,25
Max. punching diameter	60mm (Customizable)
Equipment footprint size	38000 x 7500 x 4500 mm
Overall weight	About 43 tons
