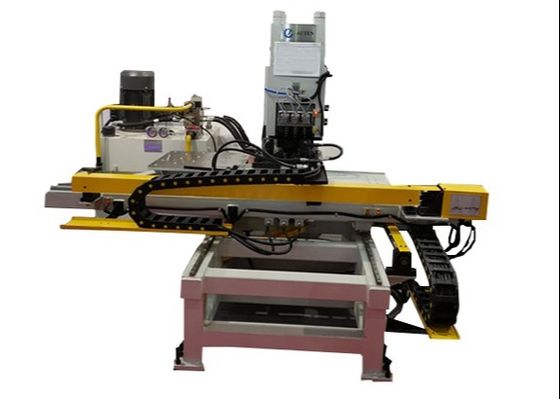

Applicable Industry:
This equipment is specifically designed for punching, marking, and drilling operations on steel plates within the steel tower industry. Additionally, it is versatile enough to perform punching, drilling, and marking tasks on metal plates across various other industrial sectors.
Product Features:

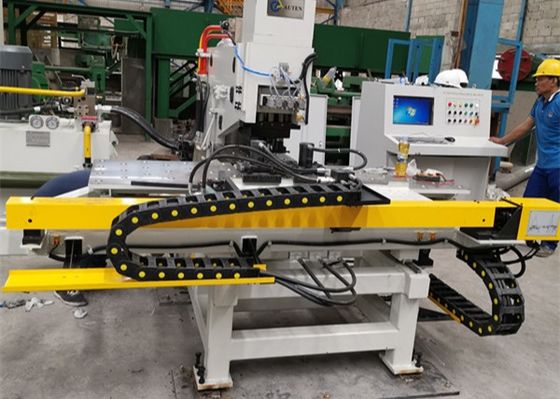

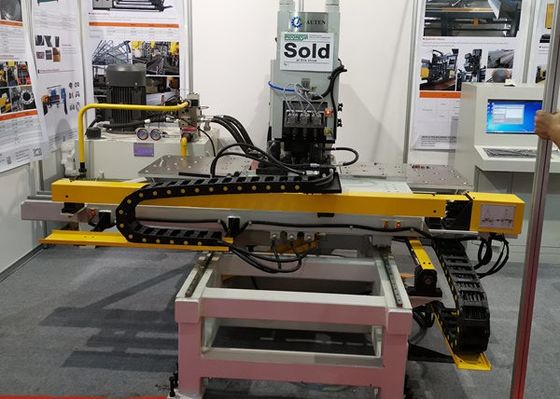

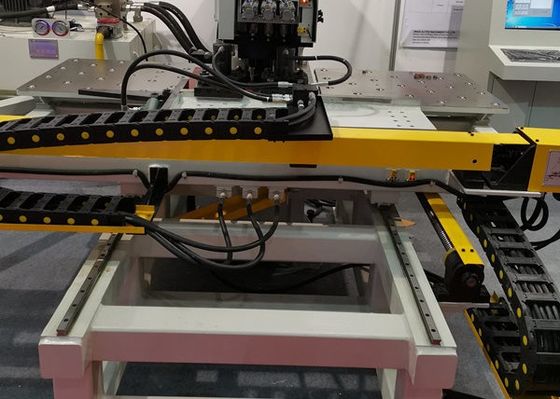

1. Robust Structural Design and Advanced Operation The machine frame is constructed through C-type plate welding, ensuring excellent rigidity and providing a spacious working area. Equipped with three die-stations, including one dedicated for marking, the machine enables automatic die-station switching. The clamping system is highly adaptable to different workpieces, utilizing a zero baffle as the datum reference and supporting workpieces on a ball-bearing worktable. The X and Y-axis movements are precisely controlled by servo motors and ball-screw drives, while the punching positions are managed by a PLC system, enabling fully automated machining processes. Once the workpiece program is inputted by the operator, it can be reused for subsequent operations.
2. High-Efficiency CNC Operation
Leveraging advanced CNC technology and servo motor-driven infeeding mechanisms, the machine delivers exceptional processing efficiency and ensures stable workpiece precision throughout operations.
3. Modular Component Design
Key functional components are designed with a modular assembly structure, facilitating easy maintenance and minimizing downtime for repairs.
4. Multi-Functional Processing
Capable of performing punching, marking, and drilling operations on a single plate, streamlining production workflows and enhancing productivity.
5. Optimized Drilling Unit
The drilling unit incorporates functions such as rapid descent, slow feed during machining, and quick retraction, optimizing operational efficiency and reducing overall processing time.
6. User-Friendly Programming
The programming process is intuitive and flexible. Users can directly input hole diameters, positions, and workpiece quantities into the computer. Additionally, the machine supports programs generated by lofting software and allows for direct conversion of CAD/CAM data, ensuring seamless integration with existing design and manufacturing systems.
Specifications:
| Model |
BNC100 |
BNCZ100 |
| Max size of work piece L×W(mm) |
1500×800 |
| Max. punching diameter (mm) |
Φ26 |
| Max. drilling diameter (mm) |
/ |
Φ50 |
| Plate thickness (mm) |
Punching |
5～25 (Q235) |
| Drilling |
40 |
| Punching force (kN) |
1000 |
| Marking force (kN) |
800 |
| Min. distance between hole and plate edge (mm) |
Punching |
25 |
| Drilling |
Depends on hole diameter |
| Character size(mm) |
14×10×19 |
| No. of character |
12 |
| Die-stations |
3 |
4 |
| Feeding speed of drilling(mm/min) |
/ |
25~280 |
| Stroke of drilling spindle(mm) |
/ |
180 |
| Rotation speed of drilling spindle(r/min) |
/ |
120~560 |
| Precision |
Accordance with GB2694 |
| Programming mode |
Input by keyboard, RS232 interface and USB interface |
| Overall dimensions L×W×H (mm) |
3200×3000×1900 |
3200×3000×2600 |
| Machine weight (kg) |
About 5400 |
About 5800 |
