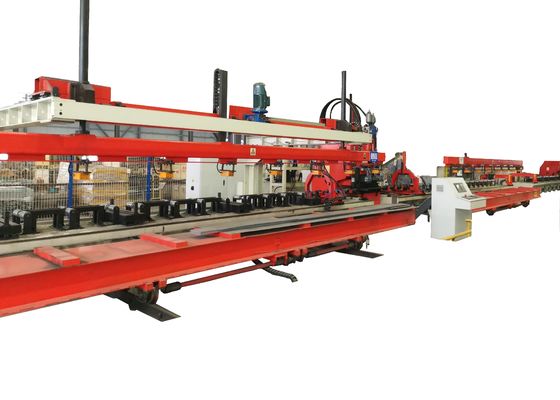

Sheet Metal Processing 15000x380 Mm Workpiece Size 35 Tons CNC Plate Punching Machine For Automotive Longitudinal Beam

Large Image : Sheet Metal Processing 15000x380 Mm Workpiece Size 35 Tons CNC Plate Punching Machine For Automotive Longitudinal Beam

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001
Model Number:	FPCP120

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Main Machine Body Type:	Semi Closed Form	Sheet Thickness:	4-14 Mm
Length:	4000-15000 Mm	Maximum Tensile Strength:	8b=510-950 N/mm2
Number Of Molds:	20，25
Highlight:	CNC Plate Punching Machine 15000x380 mm , CNC Sheet Plate Punching Machine , Metal CNC Plate Punching Machine

Product purpose and characteristics:

The production line selects the upper front belly hole as the positioning hole for wing face processing,achiev- ing reliable,efficient,flexible,and fully automatic punching of equal cross-section longitudinal beams,which has a high cost performance ratio.

Automatic measurement and accuracy compensation of the shape error of longitudinal beams;Well config- ured and controlled by Siemens CNC system from Germany to improve reliability;Dual channel control,high processing efficiency;Filter type stamping,the longitudinal beam only moves forward but not backward.

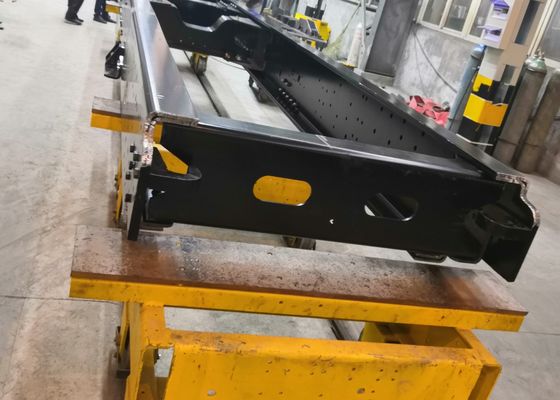

Sheet Metal Processing 15000x380 Mm Workpiece Size 35 Tons CNC Plate Punching Machine For Automotive Longitudinal Beam 0

Basic parameters of abdominal flushing:

Sheet thickness	4-14 mm
Workpiece size (LxW)	15000x380 mm
Main machine punching force	800 KN
Number of molds	6 or 7
Punching diameter	21mm (Customizable)
Equipment footprint size	38000 x 7500 x 5000 mm

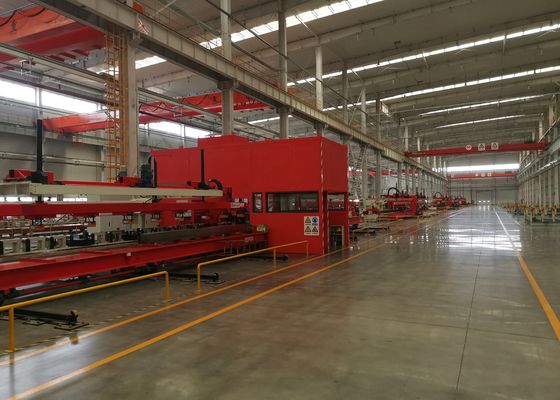

Sheet Metal Processing 15000x380 Mm Workpiece Size 35 Tons CNC Plate Punching Machine For Automotive Longitudinal Beam 1
