Highway Guard Rails Roller Forming Machine for Guardrails and Protective Guarding Production Line

Large Image : Highway Guard Rails Roller Forming Machine for Guardrails and Protective Guarding Production Line

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	wooden case
Delivery Time:	60 days
Payment Terms:	L/C, T/T
Supply Ability:	200 sets per year

Contact Now

Detailed Product Description

Function:	Roll Forming Highway Guardrail	Material:	Hot Rolled Low Carbon Steel
Material Yield Strength:	235~350Mpa	Material Tension Strength:	Max 515Mpa
Material Width:	≤750mm	CNC Or Not:	CNC

Highway Guard Rails, Guardrails, Railings, Protective Guarding Production Line

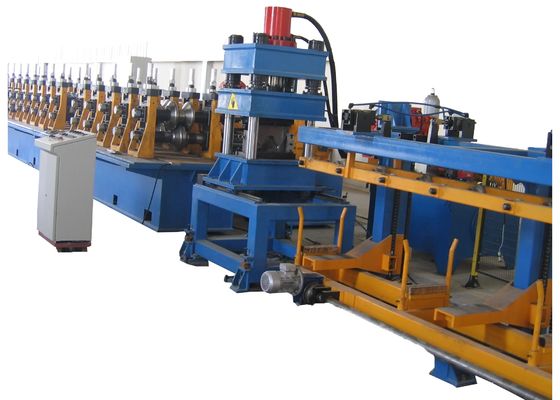

Highway Guard Rails Roller Forming Machine for Guardrails and Protective Guarding Production Line 0

Highway guard rails forming line highway protective guarding production line guardrails forming line

Can achieve the original single sheet of multi-process, uninterrupted production, set uncoiling, levelling, punching, forming, shearing in one continuous production, so that the product appearance standard, punching consistent installation is easy. The production line has high production speed, on-line punching and continuous moulding production, easy to operate and use less labour.

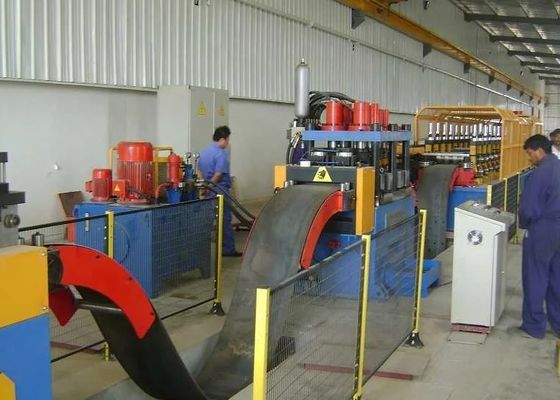

Highway Guard Rails Roller Forming Machine for Guardrails and Protective Guarding Production Line 1

Parameter of Highway guard rails, guardrails, railings, protective guarding production line

Suitable steel coil outer diameter	≤1820mm
Suitable steel coil inner diameter	500-608mm
Material width	≤750mm
Material thickness	4mm
Forming speed	2-20M/Min
