China Supplier's CNC Angle Drill Machine 220V Steel Drilling Punching Marking Machine with PLC Core Components

Large Image : China Supplier's CNC Angle Drill Machine 220V Steel Drilling Punching Marking Machine with PLC Core Components

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001
Model Number:	JNC2532/JNC2532G

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Angle Size(mm):	14014010~25025032	Max. Length Of Raw Material (m):	14
Marking Force(kN):	1000	No. Of Character Group:	1
No. Of Character:	18	Character Size (mm):	141019
Range Of Accurate Distance(mm):	50~220（Stepless）	Taper Of Drilling Spindle:	BT40
Max. Drilling Diameter (mm):	Φ40	Max. Spindle Rotation Speed(r/min):	6000
Drill Cooling Unit:	MQL 360-2（Dry Cooling）

CNC Angle Drilling And Marking Machine Model JNC2532/JNC2532G

Product Composition:

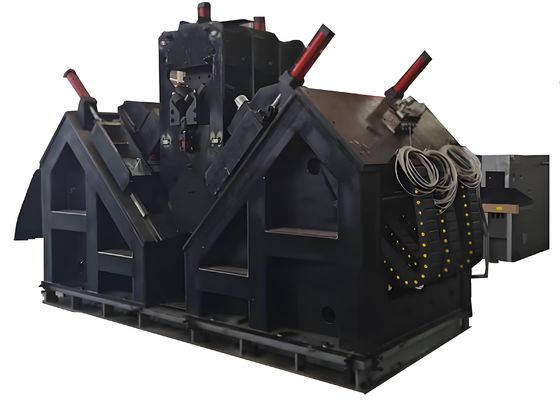

This machine is specialized equipment for angle steel drilling and marking, primarily serving the angle steel tower industry. Its core components include a transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, drilling unit, marking unit, unloading conveyor, as well as integrated hydraulic, electrical, and pneumatic systems.

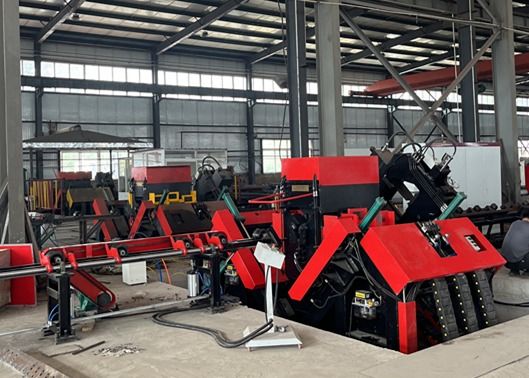

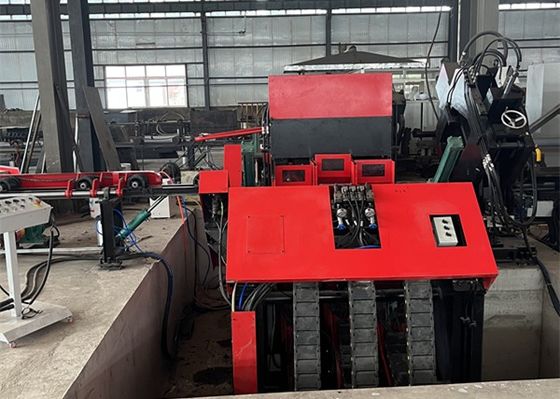

China Supplier's CNC Angle Drill Machine 220V Steel Drilling Punching Marking Machine with PLC Core Components 0

Product Features:

Highly Integrated Processing Line
The processing line comprises a transverse conveyor, overturn conveyor, infeed conveyor, CNC infeed carriage, two sets of drilling units, one set of marking unit, unloading conveyor, and corresponding hydraulic stations and cooling systems. Leveraging advanced CNC technology and servo - motor - driven infeeding, it ensures high - efficiency operations and consistent workpiece precision.
Dual - Sided Drilling Configuration

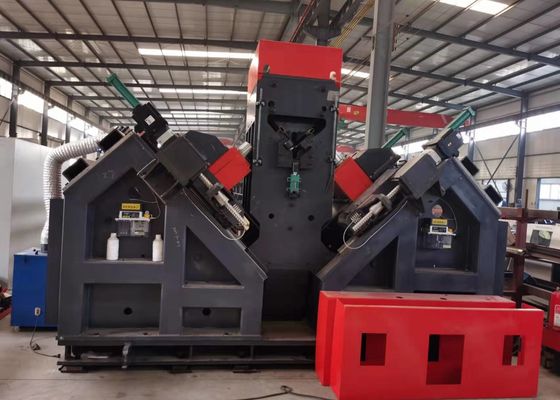

Equipped with one drilling unit on each side, each unit can accommodate three drills of different sizes. The drilling units enable coordinated CNC movement, facilitating precise adjustment of drilling pitches and ensuring accurate hole placement.
Precision - Controlled Operation
All spindle rotation speeds are infinitely adjustable via frequency converters, while feeding speeds can be finely tuned using speed - regulating valves. The automatic transitions between rapid feeding, working feeding, and rapid retraction of the spindles streamline the machining process.
Advanced Marking and Cooling Systems
The drilling line features a dedicated marking unit with easily programmable marking pitches. The marking process, workpiece clamping, and drilling infeeding are powered by a hydraulic system with imported key components. A circulatory cooling system is integrated to extend the service life of drill bits.
Fully Automated Workflow
The machine enables complete automation of marking and drilling processes. Finished angle steel products are unloaded via a pneumatic turnover device, significantly reducing labor intensity and offering a competitive edge over similar industry solutions.
Intelligent Control System
The control system, consisting of a host computer, servo motors, PLC, and external monitoring switches, automatically generates processing programs upon input of workpiece dimensions. Programs can be saved, selected, displayed, and transferred according to workpiece numbers, enhancing operational flexibility.
Enhanced Processing Adaptability
The machining line is equipped with a supporting and pressing device, enabling the processing of angle steel with significant bends to meet diverse manufacturing requirements.
Robust Self - Diagnosis Function
The machine is integrated with a self - diagnosis system for rapid identification and troubleshooting of operational failures, minimizing downtime and ensuring reliable performance.

Parameter information

Model	JNC2532	JNC2532G
Angle size(mm)	140×140×10~250×250×32
Diameter of drilling(mm)	13.5~40
Marking force(kN)	1200
Max. length of blank(m)	14
Range of back mark (mm)	50-220 (stepless)
No. of drill an each side	3
No. of character box	4
No. of character in each character box	18
Character side(mm)	14×10×19
CNC axes	3	9
Feeding speed of angle(m/min)	40
Stroke of Spindle(mm)	180	140
Spindle rotation speed(r/min)	180-560,Transducer stepless adjustment	6000
Taper of drilling spindle	/	BT40
Programming mode	Input by keyboard, USB interface
Overall dimensions (m)	32x8.9x2.5	34.5×8×3
Gross weight	About 17 tons	About 30 tons
