High Speed Automatic CNC Angle Steel Cutting Machine CNC Punching and Shearing Angle Line for Sale

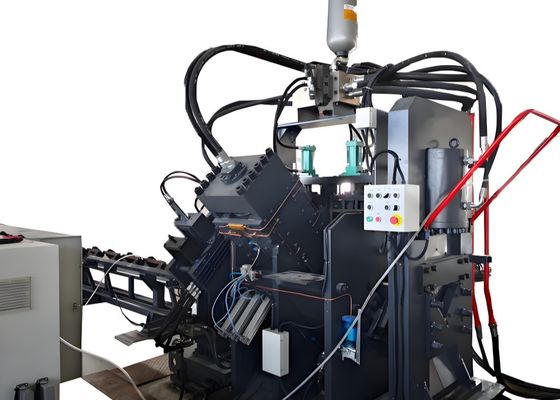

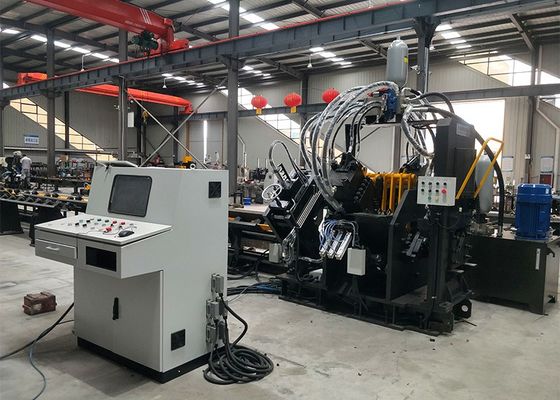

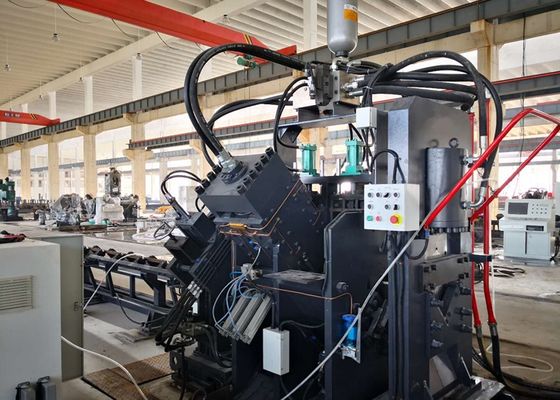

   High Speed CNC Angle Punching, Marking and Shearing Machine

Product Features:
1. Advanced Technological Integration & Premium Componentry
Incorporating state-of-the-art CNC technology and servo-motor-driven infeeding systems, the machine delivers high-efficiency processing with consistent workpiece precision. Key hydraulic, pneumatic, and electrical components are sourced from renowned international suppliers, ensuring long-term reliability and durability.

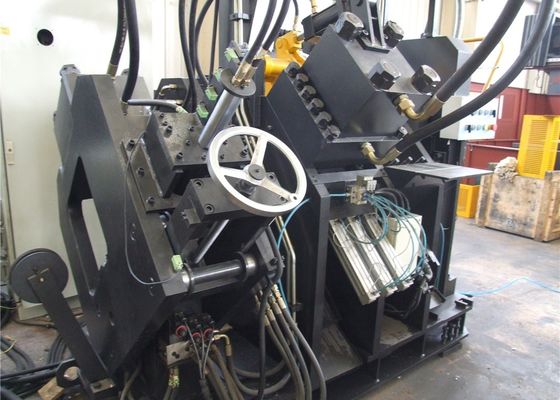

2. Versatile Punching Mechanism
Each side of the machine is equipped with three sets of punches and dies, capable of accommodating punches with varying diameters. Under PLC control, these three sets of molds move in synchronous coordination, enabling seamless adjustment of punching back marks with minimal downtime.
3. User-Centric Interface & Programming
Featuring a bilingual Chinese/English human-machine interface, the system ensures intuitive operation with real-time display of detailed workpiece diagrams. Programming is streamlined to allow direct integration of lofting software-generated data. Operators need only input workpiece dimensions, hole diameters, back mark specifications, and quantity to initiate processing.
4. Precision-Guided Infeed System
The CNC infeed carriage, driven by a servo motor, employs a photoelectric encoder for real-time positional feedback. This closed-loop control mechanism guarantees exceptional positioning accuracy, ensuring micron-level precision in all machining operations.
5. Fully Automated Workflow Solution
The machine enables end-to-end automation of marking, punching, and shearing processes. Finished angle steel components are unloaded via a pneumatic turnover device, drastically reducing manual labor intensity while optimizing production efficiency.

Parameter information
