4000 - 8000mm Length Automobile Longitudinal Beam Flat Plate 1200KN Nominal Force CNC Punching Production Line

Large Image : 4000 - 8000mm Length Automobile Longitudinal Beam Flat Plate 1200KN Nominal Force CNC Punching Production Line

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001
Model Number:	FPCP120

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Main Machine Body Type:	Semi Closed Form	Sheet Thickness:	4-14 Mm
Length:	4000-15000 Mm	Maximum Tensile Strength:	8b=510-950 N/mm2
Number Of Molds:	20，25	Number Of Control Axes:	3 Axes
Highlight:	1200KN Automobile CNC Punching Line , 8000mm Automobile CNC Punching Line , longitudinal Beam CNC Punching Line

Application:

This machine is specialized equipment designed for punching holes in flat longitudinal beams within the automotive industry.

Structural composition:

The machine primarily consists of automatic loading and unloading devices, a centering device for automatic compensation of variable-section plates, feeding devices, punching units, an automatic waste output device, along with integrated hydraulic, electrical, and pneumatic systems.

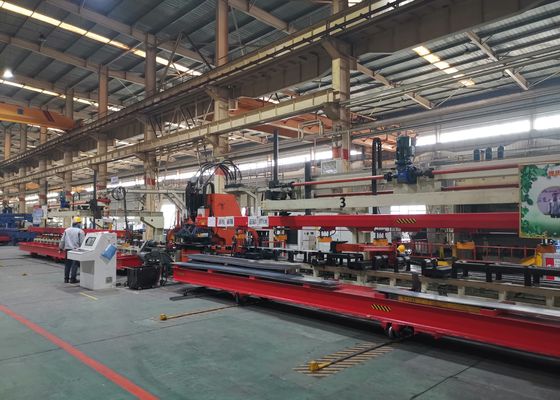

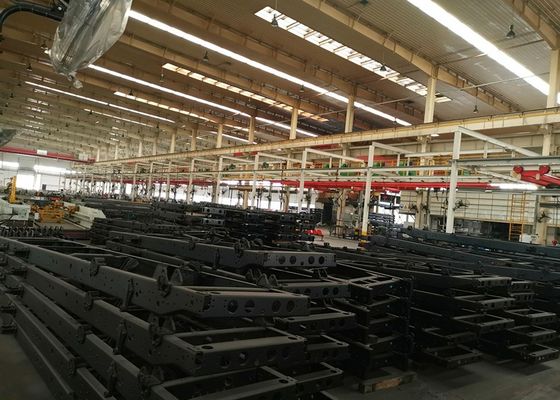

4000 - 8000mm Length Automobile Longitudinal Beam Flat Plate 1200KN Nominal Force CNC Punching Production Line 0

Product features:

High - Performance Control System
The control system utilizes the SIEMENS 828D CNC system, combined with servo - motor - driven feeding, ensuring high work efficiency and stable precision of workpieces.
Versatile Centering Mechanism
A servo - controlled centering device is mounted on the feeding support roller, enabling the processing of variable - cross - section plates with a height difference ranging from 0 to 200mm.
Flexible Mould Configuration
The machine can accommodate 25 molds of different diameters, and the installation process is swift and convenient.
Fully Automated Workflow
The entire process, including plate uploading, punching, and downloading, is automated, significantly reducing the labor intensity.
Efficient Waste Management
It features an automatic waste output and collection function for enhanced operational tidiness.
Intelligent Programming Capability
The automatic programming software allows for direct import of AUTOCAD graphics or.DXF - format graphics generated by other CAD software. Through an intuitive human - machine interface, it can automatically generate machine tool processing programs, saving time and minimizing errors.

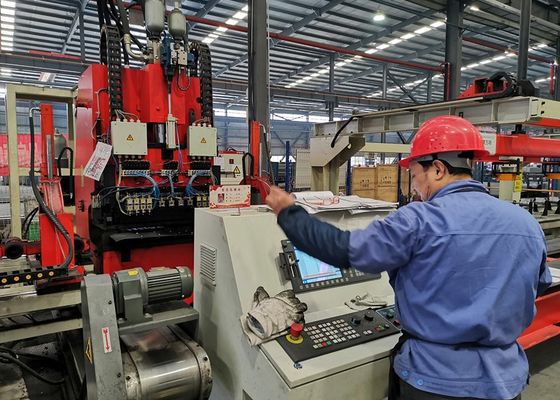

4000 - 8000mm Length Automobile Longitudinal Beam Flat Plate 1200KN Nominal Force CNC Punching Production Line 1

Main technical parameters:

No.	Name	Value
1	Nominal force	1200KN
2	Processing plate size and range
3	Length	4000～8000mm
	Width	200～550mm
	Thickness	3～6mm
	Incoming sheet material sickle bending	≤7mm/10m
	X-axis sheet unevenness	≤10mm/1000mm ,≤20mm/8000mm
	Y-axis sheet unevenness	5mm
	Sheet warping	≤50mm
	Sheet material mechanical properties	σb=510～850N/mm²
4	Max. punchingdiameter	φ60mm
5	Number of modules	25个
6	Max. speed
	X-axis	Max=50m/min
	Y-axis	Max=30m/min
7	Processing accuracy
	X-axis	±0.25/600mm ,±0.50 / 3000mm,±0.7 / 8000 mm
	Y-axis	±0.2 mm / 600 mm

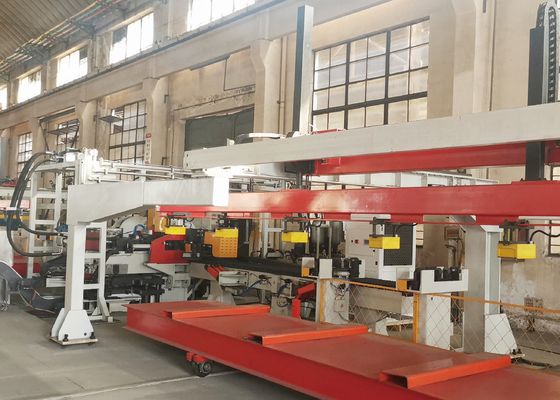

4000 - 8000mm Length Automobile Longitudinal Beam Flat Plate 1200KN Nominal Force CNC Punching Production Line 2
