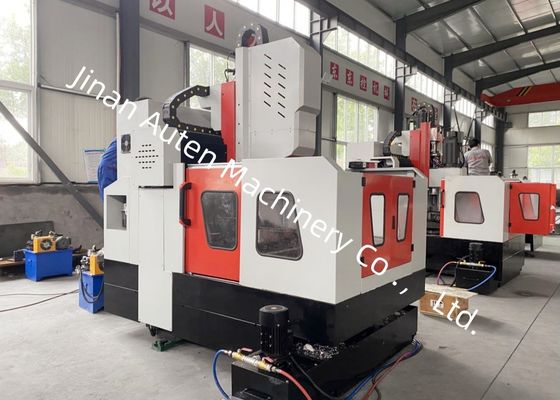

600 x 600mm CNC Plate Drilling and Milling Machine Model BHD6060 with Digital Control System and Electrical System

Application:

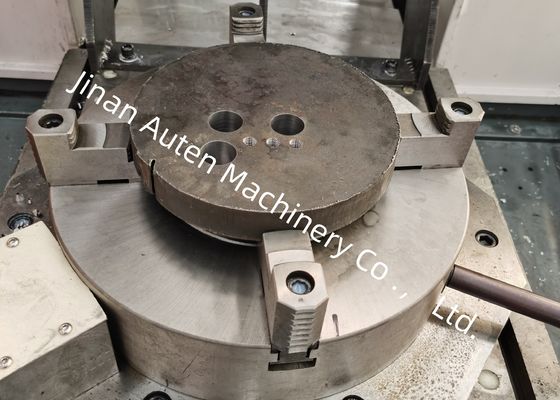

The CNC gantry drilling and milling machine is mainly used for the drilling, chamfering, tapping, and milling of plate/structural parts with the thickness of flanges, discs, rings, plates and other workpieces within the effective range. Drilling through holes and blind holes can be realized on single material parts and composite materials. The processing process is digitally controlled and the operation is very convenient. It can realize automation, high precision, multiple varieties and mass production.

Equipment structure:
The equipment is integrally cast, mainly composed of worktable, fixed beam gantry, movable sliding saddle, drilling and milling power head, automatic lubrication device, protective device, circulating cooling device, digital control system, electrical system, etc. Rolling hard rail pair support and guidance, precision lead screw pair drive, the machine tool has high positioning accuracy and repeat positioning accuracy.

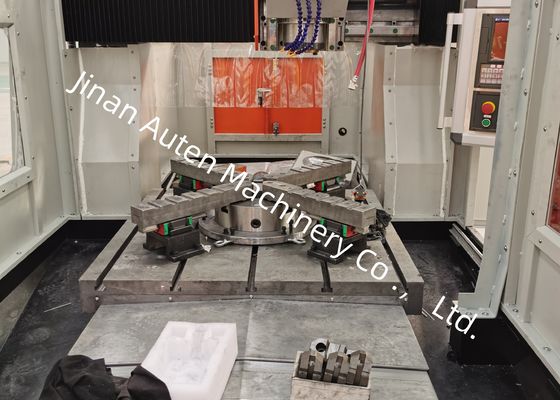

T-slot workbench:
The workbench is made of gray iron (HT250), which is finished by secondary tempering and vibration aging treatment, with good rigidity and no deformation.

Fixed beam type gantry:

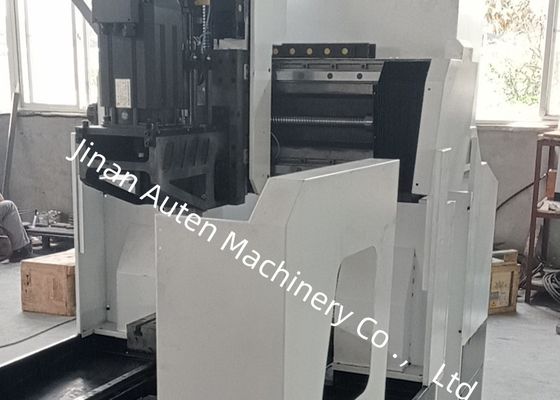

The gantry is made of gray iron (HT250). The front side of the gantry is equipped with two ultra-high bearing capacity rolling linear guide pairs, a set of precision ball screws and a servo motor to make the power head slide plate move in the Y axis direction , drilling power head is installed on the power head slide plate. The gantry movement is realized by the rotation of the ball screw driven by the servo motor through the precision coupling.

Specifications:
