35mm Max Diameters CNC Gantry Plate Drilling Machine 40mm Max Thickness

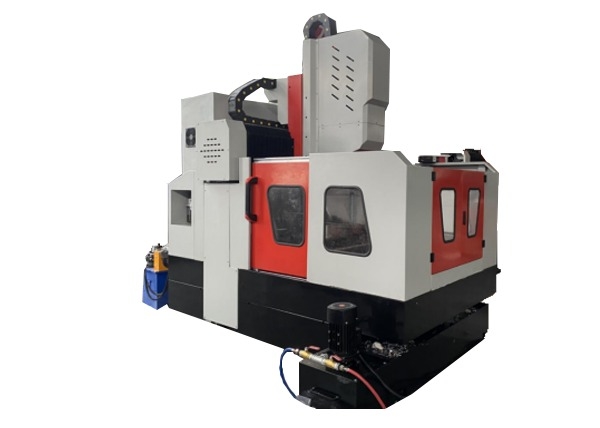

CNC Plate Drilling and Milling Machine Model BHD6060

Application:

The CNC gantry drilling and milling machine is primarily engineered for drilling, chamfering, tapping, and milling of plates and structural components—encompassing flanges, discs, rings, and plates—with workpiece thicknesses within its effective processing range. It facilitates the drilling of both through holes and blind holes in single-material parts and composite materials alike. The machining process is digitally controlled, ensuring highly convenient operation, and it enables automated, high-precision production across multiple varieties and in mass quantities.

Movable sliding saddle:

The sliding saddle is a precision cast iron structure. The sliding saddle is equipped with two ultra-high load-bearing CNC hard-track sliding tables, a set of precision ball screw pairs and a high-precision planetary reducer connected to the servo motor to drive the drilling power The head moves in the Z-axis direction, which can realize the fast forward, work forward, fast reverse, stop and other actions of the power head. It has the functions of automatic chip breaking, chip removal and pause.

Drilling power head:

The drilling power head adopts a dedicated servo spindle motor, and the geared synchronous belt decelerates to increase the torque to drive the precision spindle. The spindle adopts the first three rear two five-row Japanese angular contact bearings to achieve stepless speed change. The spindle is equipped with a pneumatic tool change system to enable tool replacement Fast and convenient, the feed is driven by a servo motor and a ball screw. The X and Y axes can be linked, using semi-closed loop control, which can realize linear and circular interpolation functions. The spindle end is a BT40 taper hole, equipped with Italian Rotofors high-speed rotary joint, and can use high-speed U-drilling center to discharge water.

Automatic lubrication device and protection device:

This machine tool is equipped with Taiwan's original volumetric partial pressure automatic lubrication device, which can automatically lubricate various motion pairs such as guide rails, lead screws, racks, etc., without dead ends, and ensure the service life of the machine tool. The X-axis and Y-axis of the machine tool are equipped with dust-proof shields, and splash-proof baffles are installed around the workbench.

Specifications:
