3.2×3×1.9m Overall Dimension CNC Plate Punching Marking And Drilling Machine 3 Die-Stations

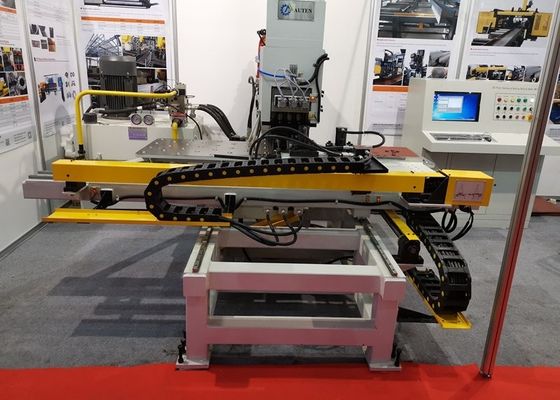

Large Image : 3.2×3×1.9m Overall Dimension CNC Plate Punching Marking And Drilling Machine 3 Die-Stations

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001
Model Number:	BNC100

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	300 sets/year

Contact Now

Detailed Product Description

Plate Size:	1500x800mm	Plate Thickness:	5~25mm
Punching Force:	1000kN	Hole Diameter:	26mm
CNC Or Not:	CNC	Die-stations:	3
Highlight:	CNC plate punching machine 3 die-stations , CNC plate marking drilling machine , CNC punching machine 3.2x3x1.9m dimension

3.2×3×1.9m Overall Dimension CNC Plate Punching Marking And Drilling Machine 3 Die-Stations

Applicable industry:

Used for punching, marking and drilling of steel plates in the field of steel tower. It is also used to punch, drill and mark of metal plates of other industries.

Specifications:

Model		BNC100		BNCZ100		BNHD120
Max size of work piece (mm)		1500×800
Max. punching diameter (mm)		Φ26
Max. drilling diameter (mm)		/	Φ50
Taper of drilling spindle		/	/			BT50
Plate thickness (mm)	Punching	5～25 (Q235)
	Drilling	/	40
Punching force (kN)		1000/ 1200
Marking force (kN)		800/ 1000
Min. distance between hole and plate edge (mm)	Punching	25
	Drilling	/			Depends on hole diameter
Character size(mm)		14×10×19
Qty. of character		12
Die-stations		3	4
Feeding speed of drilling (mm/min)		/	25~280			0~5000
Stroke of drilling spindle(mm)		/	180			350
Rotation speed of drilling spindle(r/min)		/	120~560			30~3000
Programming mode		Command programming, Auto CAD drawing or layout software
Overall dimensions L×W×H (m)		3.2×3×1.9		3.2×3×2.6		3.3×3.2×3

3.2×3×1.9m Overall Dimension CNC Plate Punching Marking And Drilling Machine 3 Die-Stations 0

Product feature:

1. The machine-frame is made by C-type plate welding, with good rigidity and big handling space. The machine sets three die-stations (among them, one is the marking die-station), automatic switching die-stations. Clamping system can adapt to different workpiece, with zero baffle as datum mark, and workpiece supported by rolling-ball working table. X & Y axis action controlled by servo motor and ball-screw driving and PLC control the position of punching, so as to make the whole machining process automatically; Operator input the workpiece program, it can be used repeatedly.

3.2×3×1.9m Overall Dimension CNC Plate Punching Marking And Drilling Machine 3 Die-Stations 1

2. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision.
3. Important functional components adopt modular assembly, easy to repair it.
4. Carry out punching, marking and drilling on the one plate.

3.2×3×1.9m Overall Dimension CNC Plate Punching Marking And Drilling Machine 3 Die-Stations 2

5. Drilling unit has the functions including rapid falling, slow work-feeding and quick feeding back to improve working efficiency.

6. With fault self-diagnosis function.

3.2×3×1.9m Overall Dimension CNC Plate Punching Marking And Drilling Machine 3 Die-Stations 3

7. Easy programming, may input the diameter of holes, position and the quantity of work piece to computer, and also may use the program generated by lofting software, or adopt direct conversion CAD/CAM.

Machine details:

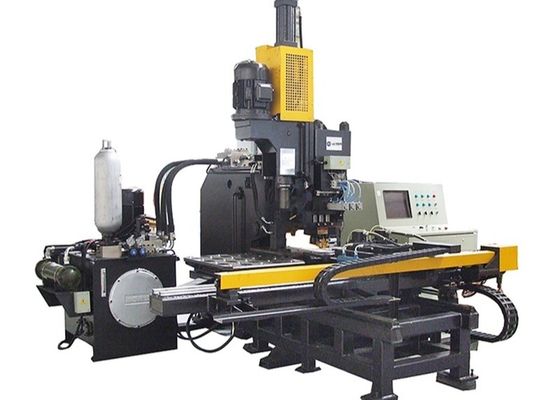

3.2×3×1.9m Overall Dimension CNC Plate Punching Marking And Drilling Machine 3 Die-Stations 5

This professional metal processing equipment mainly handles punching, marking, and drilling for steel plates in the steel tower industry. It ensures precision, meeting strict tolerances and surface standards. Beyond steel towers, this versatile equipment also provides reliable punching, drilling, and marking for metal plates in other industries. It maintains efficiency and precision for all metal types, boosting workflows and quality across sectors.

3.2×3×1.9m Overall Dimension CNC Plate Punching Marking And Drilling Machine 3 Die-Stations 6
