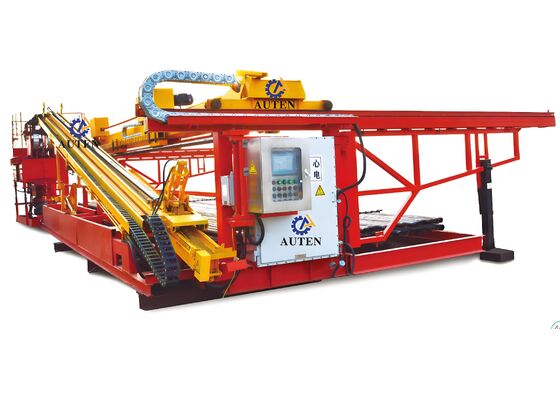

300pcs (3 1/2EU) Arranged Pipes Oil Well Machine Equipped 9kW Power For Oil Gas Water Well Facilities
Product Introduction:
This oil well equipment is primarily engineered for maintenance operations across oil, gas, and water well facilities. Its core functionalities include the deployment and retrieval of tubing strings, drill pipes, sucker rods, as well as the extraction of downhole pumps. It stands as the most sophisticated intelligent and automated well-intervention system currently available within the global oilfield maintenance industry.
Specifications:
| Model |
XJNC-70/35 |
| Power elevator load rating |
700 kN |
| Power slips rated load |
700 kN |
| Applicable pipe diameter |
2 3/8NU,2 3/8EU,2 7/8NU,2 7/8EU,
3 1/2NU,3 1/2EU,4 1/2NU (Insulated pipe) |
| Pipe tripping efficiency |
45pcs/hour |
| Machine power |
9 kW |
| Lifting load |
350kg |
| Lifting height |
4000mm |
| Oil pipe length |
8500~9750mm |
| Qty. arranged pipes |
300pcs (3 1/2EU) |
| Overall size |
11200x2300x2700 |
Product Advantages:
This oil well apparatus constitutes a fully automated and intelligent well maintenance system. It is outfitted with core functionalities that include the automatic clamping and releasing of oil tubing, the precise measurement and formal documentation of tubing length, seamless switching between primary and secondary elevators, and the automated hoisting and lowering of oil tubing assemblies. This integrated configuration effectively mitigates operational labor intensity, facilitating the transition of the operational workflow from a manual execution model to a centralized supervised management paradigm.
The electronic control system of this oil well apparatus adopts a fully digitalized design architecture. It integrates digital control technology, PLC centralized control, and fieldbus communication protocols, thereby realizing the integrated convergence of mechanical, electrical, hydraulic, pneumatic, instrumentation, digital, and communication functionalities into a unified operational framework.
Network infrastructure, information systems, hardware components, and software modules adhere to unified industry standards and feature a highly modularized design architecture. This configuration facilitates intelligent system operation, delivers superior performance capabilities, ensures intuitive and reliable operational procedures, and provides robust interchangeability of core components.
Core hydraulic and pneumatic components are procured from certified, field-proven product lines, ensuring premium quality and sustained operational reliability. All lighting assemblies, signal indicators, and electrical devices integrated into the instrument panel operate on a standardized 24V rated power supply.
