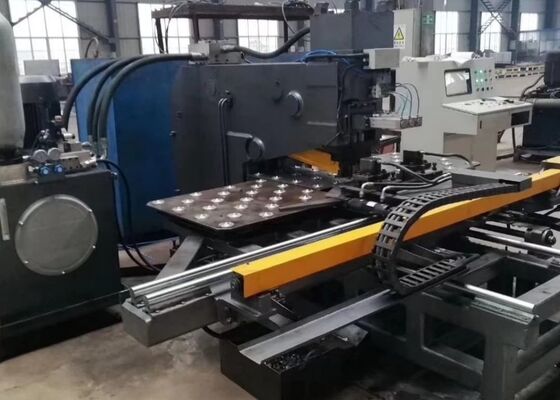

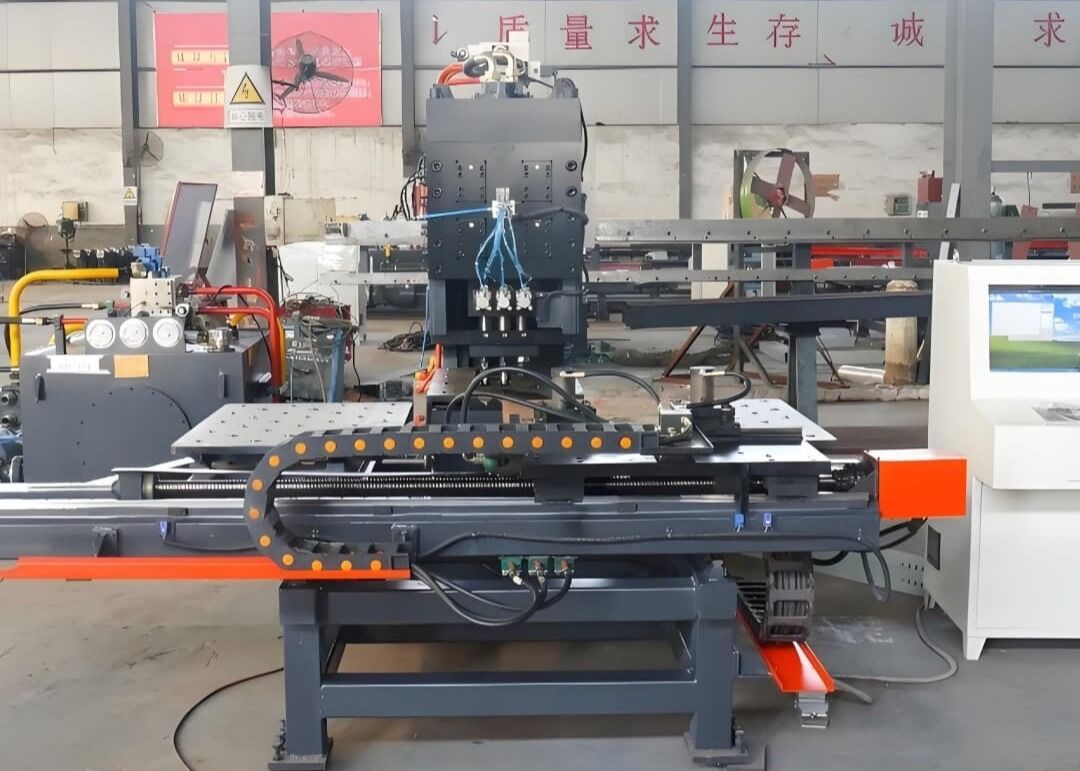

1. The CNC channel steel punching and marking machine features a frame constructed from C-type plate welding, providing exceptional structural integrity and ample operational space. The system is equipped with three die stations, one of which is dedicated exclusively to marking, and supports automatic die station indexing, thereby optimizing operational efficiency. The clamping system ensures broad compatibility with various workpieces, utilizing a zero-reference baffle for precise positioning. Workpieces are securely positioned on a ball-bearing worktable, facilitating smooth handling. The X and Y axis movements are driven by servo motors and transmitted through high-precision ball screws, while punching position alignment is managed by a Programmable Logic Controller (PLC), ensuring full automation of the machining process. Once the operator enters the workpiece program, it can be saved, recalled, and reused for batch production cycles.
2. The CNC steel drilling machine utilizes cutting-edge Computer Numerical Control (CNC) technology along with servo motor-driven feed systems, ensuring superior operational efficiency and consistent precision across a wide range of workpieces.
3. The machine’s key functional components are designed with a modular structure, allowing for easy maintenance and efficient repair procedures.
4. The CNC metal plate punching and marking machine facilitates the seamless combination of punching, marking, and drilling operations on a single metal plate, delivering multi-process capabilities within a single operational cycle.
5. The drilling module integrates key functional capabilities, including rapid downward feed, precise machining progression, and swift retraction, all of which significantly enhance operational efficiency in real-world work environments.
6. Featuring an advanced self-diagnostic fault system, the machine enables the rapid detection of operational issues, allowing for timely maintenance interventions and ensuring uninterrupted production reliability.
7. The programming process is carefully designed to prioritize ease of use: operators can directly input hole diameters, position coordinates, and workpiece batch quantities into the control system. Furthermore, the system is compatible with programs generated by specialized lofting software or allows for the direct conversion of CAD/CAM files, ensuring seamless and efficient program execution.
