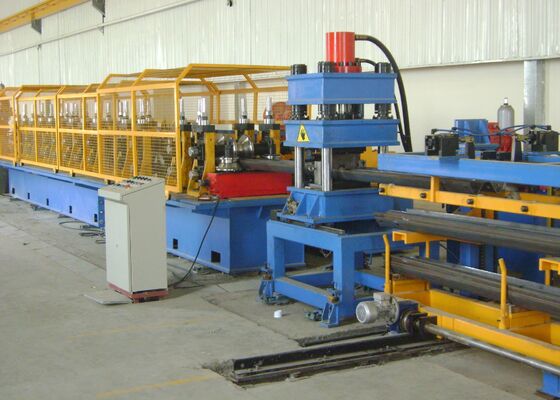

Highway Two-Wave Guardrail Cold Bending roller Forming Machine ≤500mm Steel Strip Width
Product Introduction:
Highway guard rails forming line highway protective guarding production line guardrails forming line Can achieve the original single sheet of multi-process, uninterrupted production, set uncoiling, levelling, punching, forming, shearing in one continuous production, so that the product appearance standard, punching consistent installation is easy. The production line has high production speed, on-line punching and continuous moulding production, easy to operate and use less labour.
Product configuration:
| Material |
Cold-rolled low-carbon steel |
| Raw material yield strength |
23Mpa |
| Raw material tensile strength |
450Mpa |
| Coil outer diameter |
≤Ф1300 mm |
| Coil inner diameter |
Ф508mm |
| Steel strip width |
≤500mm |
| Steel strip thickness |
3mm |
| Single coil weight |
≤5000 kg |
| Production line speed |
4 pieces/minute (length 4320mm) |
Note: The board type drawing shall be subject to the drawing finally signed and confirmed by the buyer and seller.
Production process:

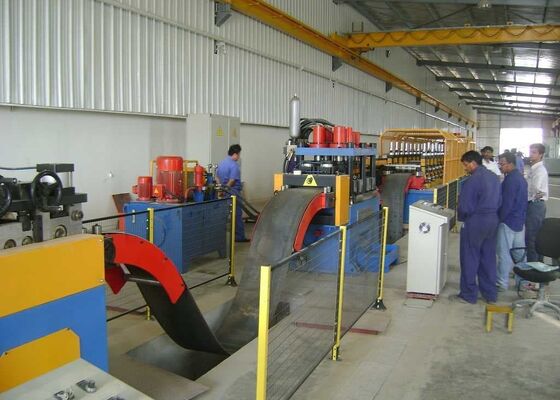

The production line is operated according to the following process flow: Uncoiling → Loop (storage) → Servo leveling feeding → 315T punching (cutting) + punching and strengthening press → cold bending → discharging
Special 315T hydraulic punching and cutting machine - 1 set
Purpose: Using high-speed punching dies, different shapes of punching holes can be produced by using different station dies (punching dies need to be replaced when the plate type is changed). The punching positions can be adjusted separately, with reasonable structure, long service life, and convenient adjustment.
The hydraulic system equipped with this punching machine is specially developed for multi-station punching machines. The hydraulic press adopts pump and accumulator control mode and adopts a special hydraulic control module. It has the characteristics of fast punching speed and low noise, and is equipped with a cooler for heat dissipation to meet the needs of continuous production. (This hydraulic system has been successfully used in many production lines)
Structure: It adopts the hydraulic four-column press mode, which is economical and fast. The punching spacing is adjustable in the horizontal direction of the plate, and the change of the punching step can be completed through the electrical control system.
Punching and cutting die: 1 set
The punching machine is equipped with a complete set of punching and cutting dies, which can complete the 18-hole punching of the guardrail plate end. The specific die specifications are finally confirmed based on the punching drawings signed and confirmed by both the buyer and the seller.
Reinforced hole punching press (including 1 set of punching die) - 1 set
This machine is a four-column press.
It can punch out a group of 20X50 reinforcement holes on two-wave guardrail plates at the same time.
This machine has a four-column double-beam structure and a total of 1 workstation, which can complete the punching of reinforcement holes on guardrail plates.
