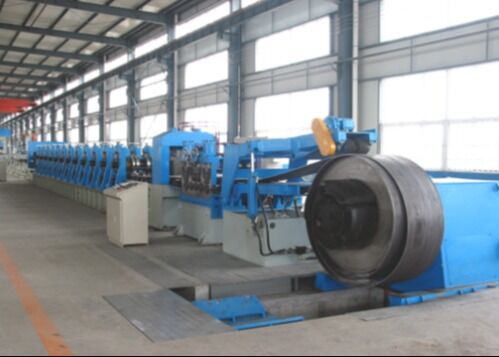

≤1000mm Steel Strip Width U-Shaped Adjustable Roller Forming Machine ≤10000 Kg Single Coil Weight

≤1000mm Steel Strip Width U-Shaped Adjustable Roller Forming Machine ≤10000 Kg Single Coil Weight

Product Introduction:

U-Shaped Through Shaft Automatic Adjustable Forming Machine can achieve the original single sheet of multi-process, uninterrupted production, set uncoiling, levelling, punching, forming, shearing in one continuous production, so that the product appearance standard, punching consistent installation is easy. The production line has high production speed, on-line punching and continuous moulding production, easy to operate and use less labour.

Product configuration:

Note: The board type drawing shall be subject to the drawing finally signed and confirmed by the buyer and seller.

Production process:

The production line is operated according to the following process flow: Uncoiling → Leveling and feeding → Cold bending → Hydraulic shearing machine → Discharging

Hydraulic cutting machine -1 set

Purpose: Cut the formed parts to the required length.

Structure: It mainly consists of a frame, a cutting die, a hydraulic system, etc. It can be cut off by stopping the machine, with a compact structure, and is flexible and fast.
Equipped with 3 sets of dies (can be increased according to the product) to complete the cutting function of the product.

Hydraulic system -2 sets

Purpose: Provide power support for hydraulic unwinding and cutting.
Structure: The pump and accumulator combination structure is adopted, and the punching and shearing action speed is fast, which improves the production line speed. The air-cooled cooler is used for heat dissipation to meet the production requirements of high load and high temperature.

The hydraulic system is a fast hydraulic system, and the main hydraulic components are YUEKEN products. The main components are: oil pump, motor, hydraulic valve, solenoid valve, filter and hydraulic oil tank, etc. The hydraulic system uses a filter, and the cleanliness of the oil is guaranteed to be 6-8 levels.
Hydraulic station motor power: 4kw+30kw

Electrical control unit -1 set
