1. The CNC channel steel punching and marking machine features a robust C-type welded frame, providing exceptional structural integrity and ample operational space. It is equipped with three die stations, one of which is exclusively dedicated to marking, and supports automatic indexing between stations to enhance workflow efficiency. The clamping system is highly versatile, accommodating a wide range of workpieces, with a zero-reference baffle ensuring precise alignment. Workpieces are securely held on a ball-bearing worktable, facilitating smooth and effortless handling. Movement along the X and Y axes is driven by servo motors, with power transmitted through high-precision ball screws, while punching position accuracy is managed by a Programmable Logic Controller (PLC), enabling complete automation of the machining process. Upon entering the workpiece program, the system allows for storage, retrieval, and reuse, supporting continuous batch production cycles.
2. The CNC steel drilling machine incorporates advanced Computer Numerical Control (CNC) technology along with servo motor-driven feed systems, ensuring outstanding operational efficiency and consistent precision across a wide range of workpieces.
3. The machine's key functional components are engineered with a modular design, facilitating ease of maintenance and simplifying repair processes.

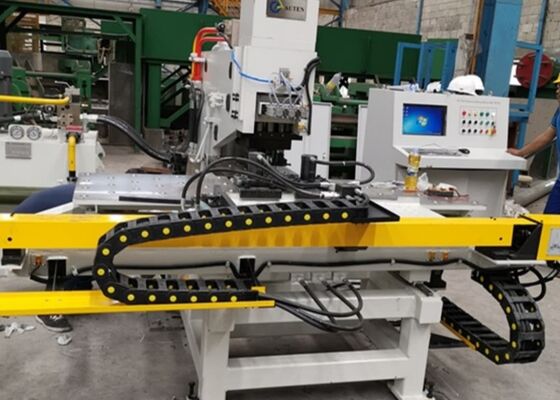

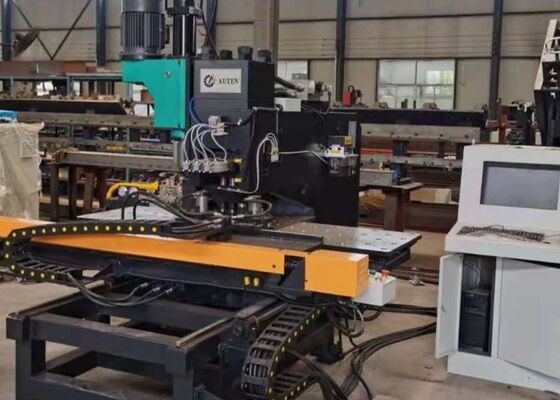

4. The CNC metal plate punching and marking machine integrates punching, marking, and drilling operations into a single process, offering multi-functional capabilities within a single operational cycle.
5. The drilling module includes critical features such as rapid downward feed, precise machining progression, and quick retraction, significantly enhancing operational efficiency in practical work environments.
6. Equipped with an advanced self-diagnostic fault detection system, the machine promptly identifies any operational issues, enabling timely maintenance actions and ensuring continuous production reliability.
7. The programming process is designed with a strong emphasis on user-friendliness: operators can directly input hole diameters, positional coordinates, and batch quantities into the control system. The system is also compatible with programs generated by specialized lofting software or allows for direct conversion of CAD/CAM files, ensuring seamless and efficient program execution.
