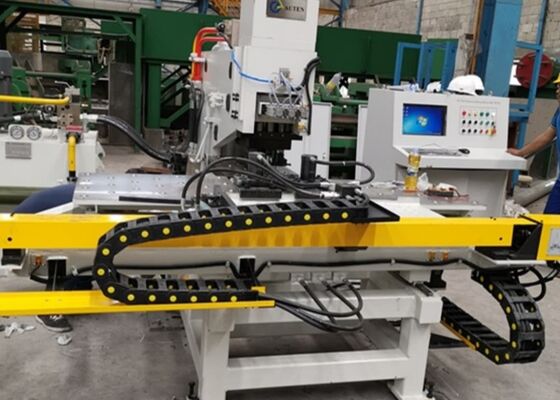

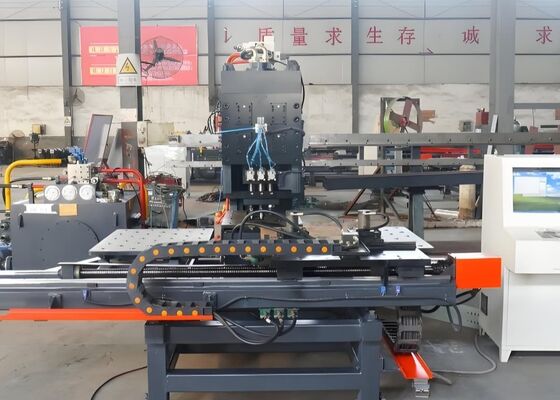

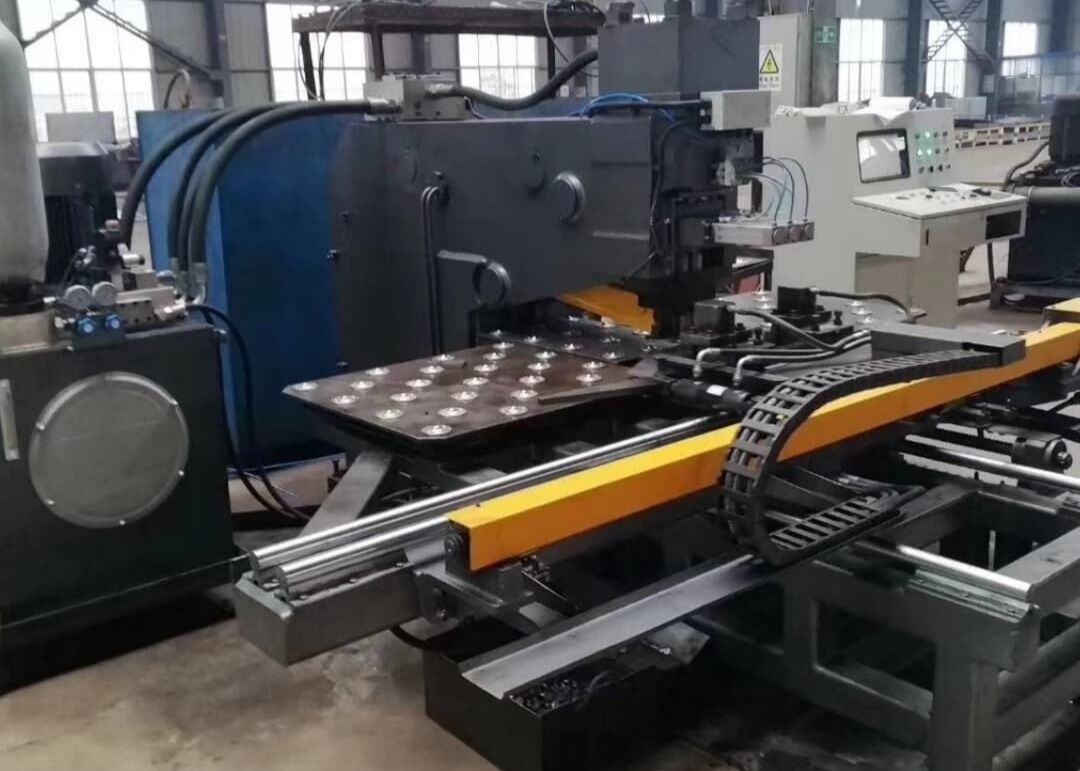

1. The CNC channel steel punching and marking machine is built with a sturdy C-type welded frame, ensuring superior structural strength and providing ample space for operations. It is equipped with three die stations, one of which is dedicated solely to marking, and supports automatic indexing between stations to optimize workflow efficiency. The clamping system is highly adaptable, capable of handling a broad range of workpieces, with a zero-reference baffle to guarantee precise alignment. Workpieces are securely positioned on a ball-bearing worktable, allowing for smooth and effortless handling. Movement along the X and Y axes is powered by servo motors, with precision transmission via high-accuracy ball screws, while punching position accuracy is managed by a Programmable Logic Controller (PLC), enabling full automation of the machining process. The system also allows for the storage, retrieval, and reuse of workpiece programs, supporting seamless batch production cycles.
2. The CNC steel drilling machine utilizes advanced Computer Numerical Control (CNC) technology coupled with servo motor-driven feed systems, delivering exceptional operational efficiency and consistent accuracy across a diverse range of workpieces.
3. The machine's core functional components are designed with a modular approach, enhancing ease of maintenance and streamlining repair procedures.
4. The CNC metal plate punching and marking machine combines punching, marking, and drilling operations into a unified process, providing versatile capabilities within a single operational cycle.
5. The drilling module incorporates essential features such as rapid downward feed, precise machining advancement, and swift retraction, significantly improving operational efficiency in real-world work environments.
6. Featuring an advanced self-diagnostic fault detection system, the machine quickly identifies any operational issues, allowing for prompt maintenance actions and ensuring consistent production reliability.
7. The programming process is designed with a focus on ease of use: operators can directly enter hole diameters, positional coordinates, and batch quantities into the control system. Additionally, the system is fully compatible with programs generated by specialized lofting software and supports the direct conversion of CAD/CAM files, ensuring smooth and efficient program execution.
