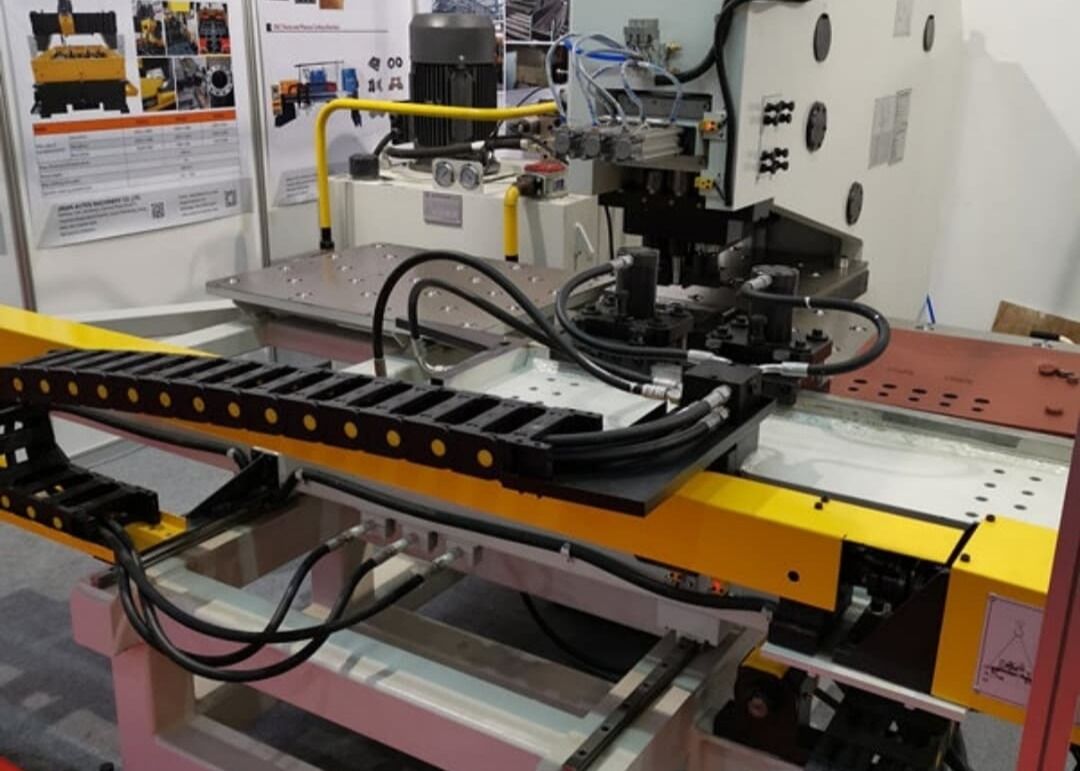

1. The CNC channel steel punching and marking machine is built with a sturdy C-type welded frame, ensuring exceptional structural integrity and providing ample space for operations. It is equipped with three die stations, one of which is dedicated exclusively to marking, and incorporates automatic indexing between stations to enhance workflow efficiency. The clamping system is highly versatile, capable of securing a broad range of workpieces, with a zero-reference baffle for precise alignment. Workpieces are firmly positioned on a ball-bearing worktable, facilitating smooth and effortless handling. Motion along both the X and Y axes is driven by servo motors, with high-precision ball screws ensuring accurate transmission, while punching position accuracy is controlled by a Programmable Logic Controller (PLC), allowing for full automation of the machining process. Furthermore, the system supports the storage, retrieval, and reuse of workpiece programs, enabling continuous batch production cycles without interruption.
2. The CNC steel drilling machine incorporates advanced Computer Numerical Control (CNC) technology, paired with servo motor-driven feed systems, ensuring outstanding operational efficiency and consistent precision across a wide variety of workpieces.
3. The machine’s key functional components are designed with a modular structure, improving ease of maintenance and simplifying repair procedures.

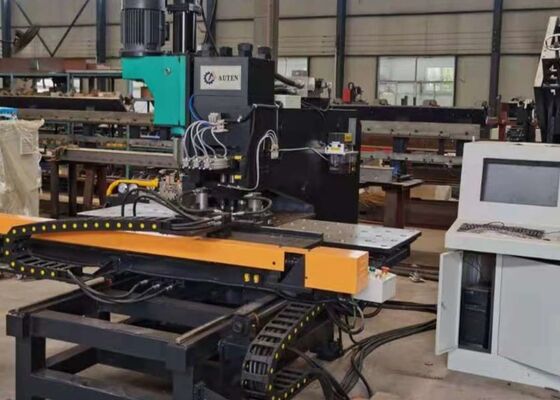

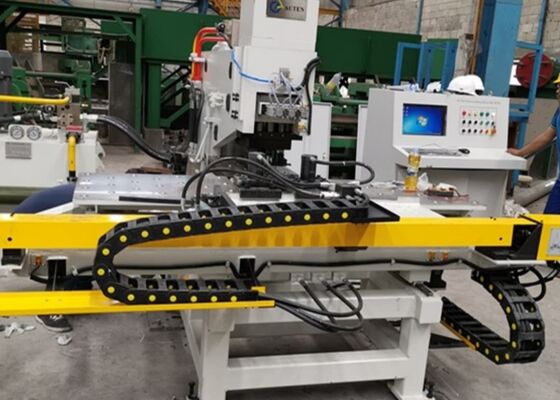

4. The CNC metal plate punching and marking machine effectively integrates punching, marking, and drilling operations into a single, cohesive process, offering versatile functionality within one unified operational cycle.
5. The drilling module is outfitted with key features including rapid downward feed, accurate machining progression, and swift retraction, greatly enhancing operational efficiency in practical work environments.
6. Equipped with an advanced self-diagnostic fault detection system, the machine swiftly identifies any operational issues, enabling prompt maintenance and ensuring continuous production reliability.
7. The programming interface is user-friendly, allowing operators to directly input hole diameters, positional coordinates, and batch quantities into the control system. Furthermore, the system is fully compatible with programs generated by specialized lofting software and supports the smooth conversion of CAD/CAM files, ensuring efficient and uninterrupted program execution.
