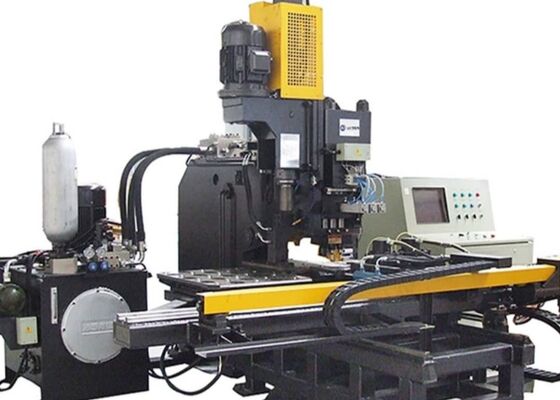

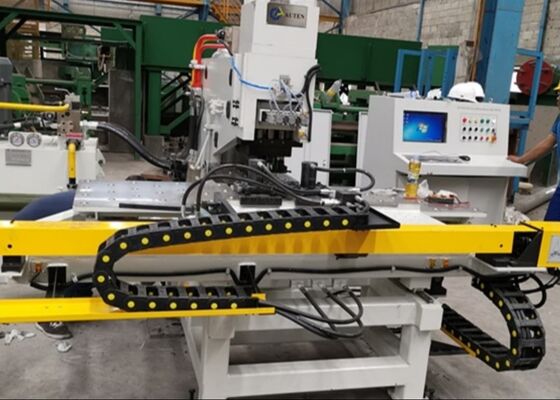

Gusset Plate Processing BNCZ100 CNC Plate Punching And Drilling Machine Heavy Plate Hole Making

Large Image : Gusset Plate Processing BNCZ100 CNC Plate Punching And Drilling Machine Heavy Plate Hole Making

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001
Model Number:	BNCZ100

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	300 sets/year

Contact Now

Detailed Product Description

Plate Size:	1500x800mm	Plate Thickness:	5~25mm
Punching Force:	1000/ 1200kN	Marking Force:	800/ 1000kN
CNC Or Not:	CNC	Die-stations:	4

Gusset Plate Processing BNCZ100 CNC Plate Punching And Drilling Machine Heavy Plate Hole Making

Applicable industry:

The machine is mainly used for punching and stamping operation of metal plates in electric power, communication, automobile, steel structure and other industries. The automatic CNC machining of the machine has high work efficiency and accuracy of hole location and is suitable for many kinds of processing. The machine combination of punching and drilling, punching small holes,d and drilling large holes, one machine to meet diversified production.

Specifications:

Model		BNCZ100
Max size of work piece (mm)		1500*800
Max. punching diameter (mm)		Φ26
Max. drilling diameter (mm)		Φ50
Taper of drilling spindle		/
Plate thickness (mm)	Punching	5～25 (Q235)
	Drilling	40
Punching force (kN)		1000/1200
Marking force (kN)		800/1200
Min. distance between hole and plate edge (mm)	Punching	25
	Drilling	Depends on hole diameter
Character size(mm)		141019
Qty. of character		12
Die-stations		4
Feeding speed of drilling (mm/min)		25~280
Stroke of drilling spindle(mm)		180
Rotation speed of drilling spindle(r/min)		120~560
Programming mode		Command programming, Auto CAD drawing or layout software
Overall dimensions LWH (m)		3.232.6

Gusset Plate Processing BNCZ100 CNC Plate Punching And Drilling Machine Heavy Plate Hole Making 0

Product feature:

1. Integrated machine with mechanical, electrical, and hydraulic system. PLC control and servo motor drive.

2. Modular assembling for main functional parts, easy maintenance, self-diagnostic function.

Gusset Plate Processing BNCZ100 CNC Plate Punching And Drilling Machine Heavy Plate Hole Making 1

3. Punching, Marking and drilling operations on one plate with less labor force and steady precision.

4. For programming, either input punching diameter, position and quantity of workpiece or directly share the date source of design department by the local network.

5. The body is a C type of steel plate welded structure, good steel, and operating space.

Gusset Plate Processing BNCZ100 CNC Plate Punching And Drilling Machine Heavy Plate Hole Making 2

6. The machine is equipped with three working stations (including one typing position), and the station switch is automatically carried out.

7. Clamping system which is suitable for different thicknesses of the workpiece, with the benchmark zero block, the workpiece is supported by a ball worktable.

Gusset Plate Processing BNCZ100 CNC Plate Punching And Drilling Machine Heavy Plate Hole Making 3

8. X-axis and Y-axis running by the servo motor + ball screw + precision linear guide driven by the dual-axis CNC system to control the punching position.

9. The whole process is automatic, the operator just needs to input the drawing.

Machine details:

Gusset Plate Processing BNCZ100 CNC Plate Punching And Drilling Machine Heavy Plate Hole Making 5

This professional metalworking system is custom-engineered to perform punching, marking, and drilling operations on steel plates for the steel tower manufacturing sector. It delivers premium machining precision, complying with rigorous tolerance criteria and surface finish standards. Beyond the steel tower industry, this highly versatile equipment further furnishes dependable punching, drilling, and marking functionality for metal plates across an extensive range of industrial fields. It maintains consistent operational throughput and processing accuracy for all categories of metal workpieces, thereby streamlining workflow efficiency and enhancing product quality across varied industrial applications. Gusset Plate Processing BNCZ100 CNC Plate Punching And Drilling Machine Heavy Plate Hole Making 6
